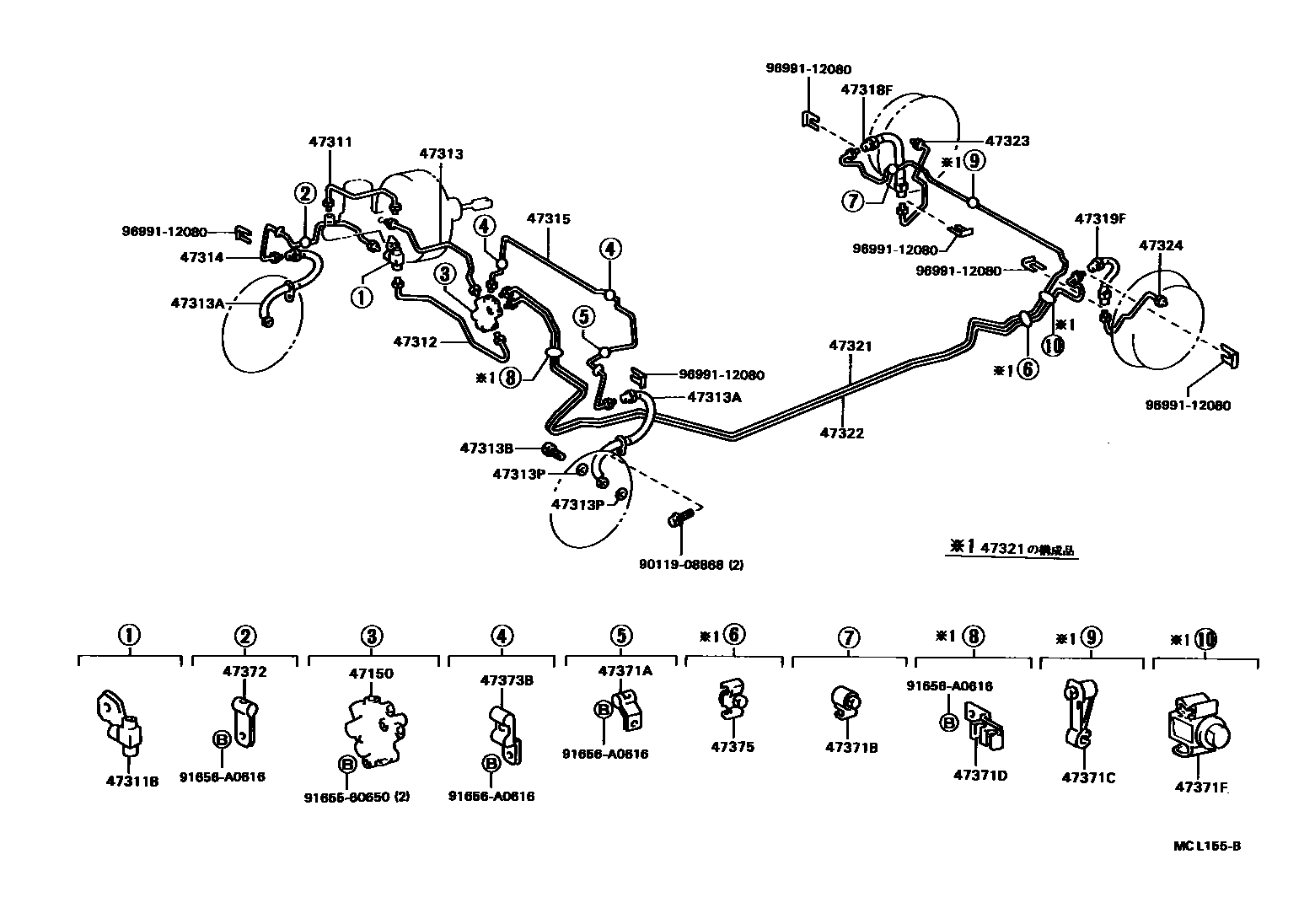

BRAKE TUBE & CLAMP

0001 1 0002 1��(������ ���-���� ����) 0003 1 0004 1��(������ ���-���� ����) 0005 1��(������ ���-���� ����) 0006 1��(������ ���-���� ����)

47150VALVE ASSY, PROPORTIONING

main47150-12050iEL45199009-199409

sub47150-12230

main47150-12060iEL41,43,NL40..DSL,EFI199009-199409

sub47150-12270

main47150-20130iEL43..EFIS199009-199409

sub47150-12240

main47150-20240iEL41,43,NL40..DSL,EFI199009-199409

main47150-20250iEL45199009-199409

47311TUBE, FRONT BRAKE, NO.1

main47311-10180iEL4#,NL40199009-199103

main47311-16120iEL45199009-199409

main47311-16130iEL41,43,NL40199009-199409

main47311-16140iNL40199103-199409

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10168iEL45199009-199409

main90413-10259iEL4#,NL40199009-199409

47312TUBE, FRONT BRAKE, NO.2

main47312-16100iEL45199009-199409

main47312-16110iEL41,43,NL40199009-199409

main47312-16120iEL4#,NL40199009-199409

47313TUBE, FRONT BRAKE, NO.3

main47313-16120iEL45199009-199409

main47313-16130iEL41,43,NL40199009-199409

main47313-16140iEL4#,NL40199009-199409

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02644iEL4#,NL40199009-199409

sub90947-02718

main90947-02645iEL4#,NL40199009-199409

sub90947-02719

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015×2iEL4#,NL40199009-199409

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main90430-10074×4iEL4#,NL40199009-199409

47314TUBE, FRONT BRAKE, NO.4

main47314-10230iEL45199009-199409

main47314-16090iEL4#,NL40199009-199409

47315TUBE, FRONT BRAKE, NO.5

main47315-16080iEL45199009-199409

main47315-16090iEL41,43,NL40199009-199409

main47315-16100iEL4#,NL40199009-199409

47318TUBE, FRONT BRAKE, NO.8

main47318-18010iEL4#,NL40199009-199409

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02603iEL41,43,NL40199009-199409

main90947-02643iEL45199009-199409

sub90947-02796

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02603iEL41,43,NL40199009-199409

main90947-02638iEL45199009-199409

sub90947-02797

47321TUBE, REAR BRAKE, NO.1

main47321-16060iEL45199009-199409

main47321-16070iNL40199103-199312

main47321-16090iEL41,43199103-199312

47322TUBE, REAR BRAKE, NO.2

main47322-16050iEL45199009-199409

main47322-16060iEL41,43,NL40199009-199103

main47322-16080iEL41,43199103-199312

47323TUBE, REAR BRAKE, NO.3

main47323-16120iEL45199009-199409

main47323-16130iEL41,NL40199009-199409

main47323-16140iEL43199009-199409

47324TUBE, REAR BRAKE, NO.4

main47324-16110iEL45199009-199409

main47324-16120iEL41,NL40199009-199409

main47324-16130iEL43199009-199409

47371ACLAMP, BRAKE TUBE, NO.1

main47371-10020iEL41,43,NL40199009-199409

main90461-06055iEL4#,NL40199009-199409

47371BCLAMP, BRAKE TUBE, NO.6

main47371-10100iEL4#,NL40199009-199409

47371CCLAMP, BRAKE TUBE, NO.7

main47371-10110iEL41,43,NL40199009-199409

main90461-10763×4iEL45199009-199409

47371DCLAMP, BRAKE TUBE, NO.8

main47371-16030iEL41,43199103-199312

main47371-30010iEL45,NL40199103-199312

47371FCLAMP, BRAKE TUBE, NO.10

main47371-16010iEL41,43,NL40199009-199409

47372CLAMP, BRAKE TUBE, NO.2

main47371-10150iEL45199009-199409

main90461-10738iEL4#,NL40199009-199409

47373BCLAMP, BRAKE TUBE, NO.3

main90464-00478×2iEL45199009-199409

main90949-01207×2iEL4#,NL40199009-199409

47375CLAMP, BRAKE TUBE, NO.5

main47371-10080iEL41,43,NL40199009-199409

9011908868

main90119-08868

9165560650

main91655-60650

91656A0616

main91656-A0616

9699112080

main96991-12080

29 parts on this diagram · 6 diagrams in section
