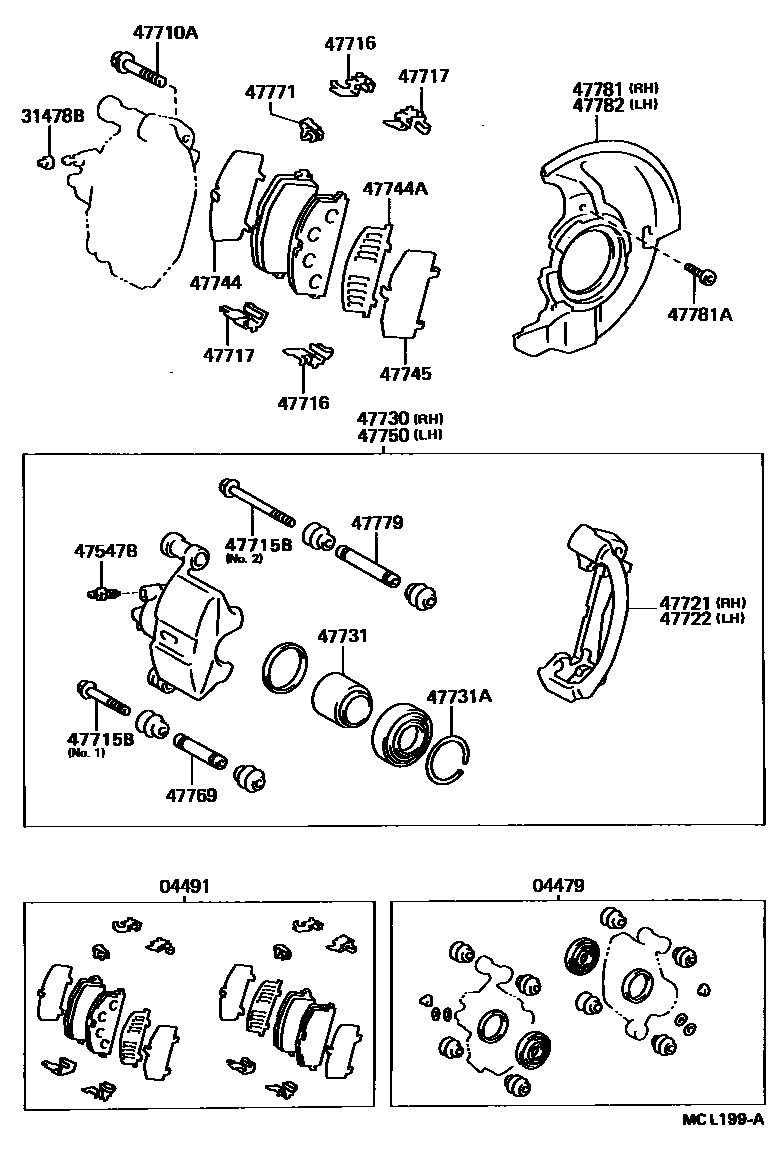

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-10070iEL45199009-199409

main04479-12091iEL43..EFIS199009-199409

main04479-16021iEL41,43,NL40..DSL,EFI199009-199409

04491PAD KIT, DISC BRAKE, FRONT

main04491-10180iEL43..EFIS199009-199011

sub04491-10240

main04491-10210iEL45199009-199401

sub04491-10211

main04491-10211iEL45199401-199409

sub04465-21010

main04491-10230iEL45199009-199401

sub04491-10231

main04491-10231iEL45199401-199409

sub04465-21010

main04491-10240iEL43..EFIS199011-199405

sub04491-10241

main04491-10241iEL43..EFIS199405-199409

sub04465-10040

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iEL4#,NL40199009-199409

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iEL4#,NL40199009-199409

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90119-12040iEL4#,NL40199009-199409

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90119-09003iEL45199009-199208

NO. 1

main90119-09003iEL45199009-199208

main90119-09003iEL41,43,NL40199208-199409

main90119-09003iEL41,43,NL40199208-199409

main90119-09004iEL45199009-199208

main90119-09004iEL41,43,NL40199208-199409

main90119-09004iEL45199208-199409

main90119-09004iEL41,43,NL40199009-199208

NO. 2

main90119-09007iEL45199009-199208

NO. 1

main90119-09007iEL45199208-199409

main90119-09008iEL45199009-199208

NO. 2

main90119-09008iEL45199208-199409

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-20140iEL45199009-199409

main47716-32031iEL41,43,NL40199009-199409

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-20140iEL45199009-199409

main47717-32031iEL45199009-199409

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-10010iEL43..EFIS199009-199409

main47721-12120iEL45199009-199409

main47721-16010iEL41,43,NL40..DSL,EFI199009-199409

main47721-16040iEL45199009-199409

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-10010iEL43..EFIS199009-199409

main47721-12120iEL45199009-199409

main47721-16010iEL41,43,NL40..DSL,EFI199009-199409

main47721-16040iEL45199009-199409

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-10100iEL45199009-199409

sub47730-10101

main47730-10110iEL43..EFIS199009-199409

sub47730-10111

main47730-16080iEL41,43,NL40..DSL,EFI199009-199409

sub47730-16081

main47730-16090iEL45199009-199409

47731PISTON, FRONT DISC BRAKE

main47731-12150iEL45199009-199409

main47731-16020iEL41,43,NL40..DSL,EFI199009-199409

main47731-16040iEL45199009-199409

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-61001iEL4#,NL40199009-199409

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-16011iEL41,43,NL40199009-199409

sub47744-32010

main47744-20050iEL45199009-199409

47744ASHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE)

main47742-20050iEL45199009-199409

main47742-32040iEL41,43,NL40199009-199409

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47745-20050iEL45199009-199409

main47745-32040iEL41,43,NL40199009-199409

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-10100iEL45199009-199409

sub47750-10101

main47750-10110iEL43..EFIS199009-199409

sub47750-10111

main47750-16080iEL41,43,NL40..DSL,EFI199009-199409

sub47750-16081

main47750-16090iEL45199009-199409

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-12030iEL41,43,NL40199009-199409

main47769-20010iEL45199009-199409

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-12050iEL43..EFIS199011-199409

main47771-20030iEL45199009-199409

sub47771-32010

main47771-32010iEL45199009-199409

main47771-32010iEL41,43,NL40199009-199409

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47779-16010iEL41,43,NL40199009-199409

main47779-20010iEL45199009-199409

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-10060iEL4#,NL40..DSL,EFI199009-199409

main47781-10070iEL43..EFIS199009-199409

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90109-06134iEL4#,NL40199009-199409

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-10060iEL4#,NL40..DSL,EFI199009-199409

main47782-10070iEL43..EFIS199009-199409

23 parts on this diagram · 3 diagrams in section
