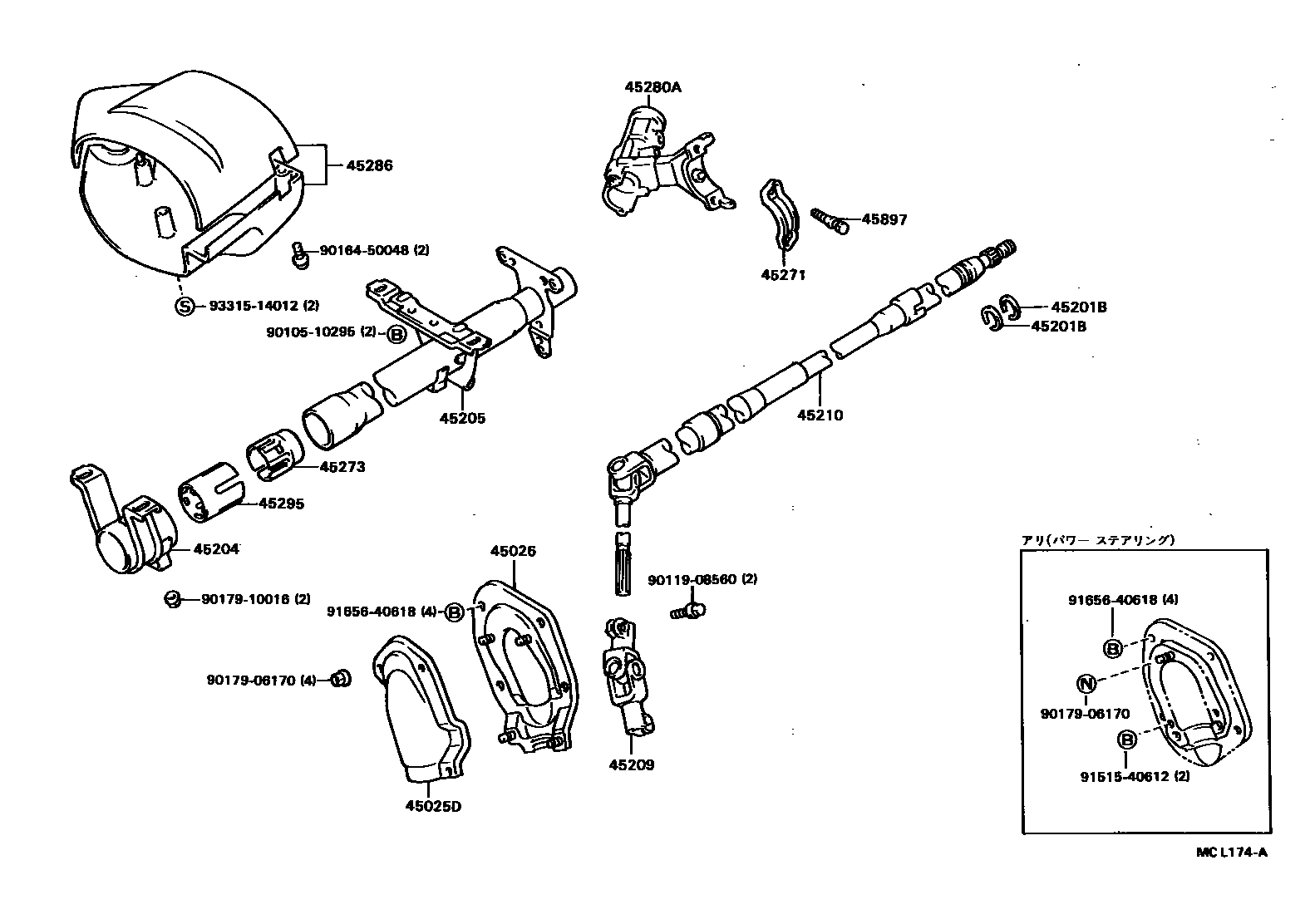

STEERING COLUMN & SHAFT

0001 1 0002 1��(��� �������)

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-10080iEL41..TX199009-199409

main45025-16120iEL4#,NL40..LIM,SR,WIN,ZS199009-199409

sub45025-16130

main45025-16120iEL41..TX199208-199409

sub45025-16130

main45025-16120iEL41..TX199009-199208

sub45025-16130

45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2

main45026-10030iEL41..TX199009-199409

main45026-16060iEL41..TX199009-199208

main45026-16060iEL4#,NL40..LIM,SR,WIN,ZS199009-199409

main45026-16060iEL41..TX199208-199409

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iEL4#,NL40199306-199409

main90520-17042iEL4#,NL40199009-199306

main90520-17196iEL4#,NL40199009-199306

main90520-17269iEL4#,NL40199306-199409

45204TUBE ASSY, STEERING COLUMN, LOWER

main45204-10040iEL41,45,NL40..TX,WIN199009-199409

main45204-10060iEL4#..LIM,SR,ZS199009-199409

45205TUBE SUB-ASSY, STEERING COLUMN

main45205-10190iEL41,45,NL40..TX,WIN199009-199409

main45205-10200iEL4#..LIM,SR,ZS199009-199102

sub45205-10201

main45205-10201iEL4#..LIM,SR,ZS199102-199409

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-16040iEL41..TX199009-199409

main45209-16051iEL41..TX199009-199208

main45209-16051iEL4#,NL40..LIM,SR,WIN,ZS199009-199409

main45209-16051iEL41..TX199208-199409

45210SHAFT ASSY, STEERING MAIN

main45210-10150iEL4#,NL40..LIM,SR,WIN,ZS199009-199409

main45210-10150iEL41..TX199009-199208

main45210-10150iEL41..TX199208-199409

main45210-16150iEL41..TX199009-199409

45271CLAMP, STEERING COLUMN, UPPER

main45271-16020iEL4#,NL40199009-199409

45273BUSH, STEERING MAIN SHAFT

main45273-16010iEL4#,NL40199009-199309

main45273-20030iEL4#,NL40199309-199409

sub45273-16020

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-16080iEL4#,NL40199009-199409

45286COVER, STEERING COLUMN

main45286-16913-01iEL4#,NL40199009-199208

BLACK,TRIM2#

sub45286-16913

main45286-16913-04iEL4#,NL40199009-199208

GRAYISH BLUE,TRIM8#

sub45286-16913

main45286-16913-07iEL4#,NL40..LIM,SR,WIN,ZS199009-199208

SPRUCE,TRIM6#

sub45286-16913

main45286-16913-22iEL4#,NL40199208-199409

BLACK,TRIM2#

sub45286-16913

main45286-16913-G0iEL4#,NL40..LIM,SR,WIN,ZS199208-199409

SPRUCE,TRIM6#

sub45286-16913

main45286-16913-W4iEL4#,NL40199208-199409

EISEN BLUE,TRIM8#

sub45286-16913

45295BUSH, STEERING COLUMN TUBE

main45295-10010iEL4#,NL40199009-199409

45897BOLT, STEERING LOCK SET

main45897-12020iEL4#,NL40199310-199409

main45897-32010iEL4#,NL40199009-199310

9010510295

main90105-10295

9011908560

main90119-08560

9016450048

main90164-50048

9017906170

main90179-06170

9017910016

main90179-10016

9151540612

main91515-40612

9165640618

main91656-40618

9331514012

main93315-14012

21 parts on this diagram · 2 diagrams in section
