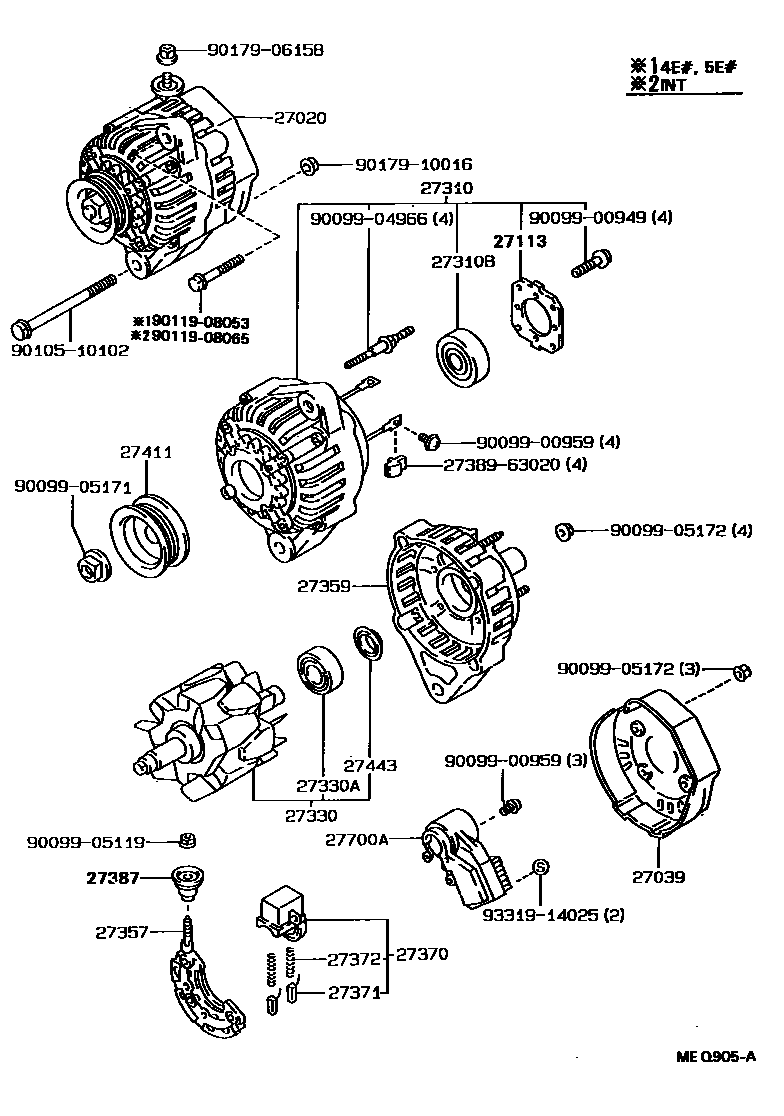

ALTERNATOR

0001 112V 70A 0002 112V 70A,80A

27020ALTERNATOR ASSY

main27060-11120i4EFE,5EF#..EL4#..MTM199009-199208

sub27060-11200

main27060-11200i4EFE,5EF#..EL4#..ATM199009-199208

main27060-11270i4EFE,5EF#..EL4#..MTM199208-199409

main27060-11280i4EFE,5EF#..EL4#..ATM199208-199305

sub27060-11281

main27060-11281i4EFE,5EF#..EL4#..ATM199305-199409

main27060-55040i1NT..NL40..5F199009-199208

main27060-55050i1NT..NL40199009-199208

main27060-55070i1NT..NL40199208-199409

sub27060-55100

main27060-55080i1NT..NL40..5F199208-199409

27039COVER, ALTERNATOR REAR END

main27039-42010i4EFE,5EF#..EL4#..ATM199009-199208

sub27039-16310

main27039-55080i1NT..NL40..5F199208-199409

sub27039-70470

main27039-72010i1NT..NL40;4EFE,5EF#..EL4#..MTM199009-199208

sub27039-15170

main27039-73020i1NT..NL40;4EFE,5EF#..EL4#..MTM199208-199409

sub27039-16380

27113PLATE, BEARING RETAINER, ALTERNATOR

main27312-42010i1NT..NL40..5F199208-199409

main27312-42010i1NT..NL40..5F199009-199208

main27312-42010i4EFE,5EF#..EL4#..ATM199009-199409

main27312-70200i4EFE,5EF#..EL4#..MTM199009-199409

main27312-72100i1NT..NL40199009-199409

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-16011i1NT..NL40199009-199208

main27310-16102i4EFE,5EF#..EL4#..MTM199009-199105

sub27310-16103

main27310-16103i4EFE,5EF#..EL4#..MTM199105-199409

main27310-16270i4EFE,5EF#..EL4#..ATM199009-199409

main27310-55040i1NT..NL40..5F199009-199208

main27310-55040i1NT..NL40..5F199208-199409

main27310-55050i1NT..NL40199208-199409

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10159i1NT..NL40199009-199105

main90099-10160i1NT..NL40..5F199009-199105

sub90099-10219

main90099-10178i4EFE,5EF#..EL4#..MTM199009-199409

main90099-10192i4EFE,5EF#..EL4#..ATM199009-199409

main90099-10192i1NT..NL40..5F199105-199208

main90099-10192i1NT..NL40..5F199208-199409

main90099-10199i1NT..NL40199105-199409

27330ROTOR ASSY, ALTERNATOR

main27330-72101i1NT..NL40;4EFE,5EF#..EL4#..MTM199009-199409

main27330-76030i1NT..NL40..5F199009-199208

sub27330-16390

main27330-76030i4EFE,5EF#..EL4#..ATM199009-199409

sub27330-16390

main27330-76030i1NT..NL40..5F199208-199409

sub27330-16390

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10140i4EFE,5EF#,1NT..EL4#,NL40199009-199409

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-55080i4EFE,5EF#..EL4#..ATM199208-199409

main27357-62040i1NT..NL40..5F199009-199208

sub27357-74160

main27357-63020i1NT..NL40;4EFE,5EF#..EL4#..MTM199009-199409

main27357-74050i4EFE,5EF#..EL4#..ATM199009-199208

sub27357-74160

27359FRAME, ALTERNATOR RECTIFIER END

main27359-16011i1NT..NL40199009-199409

sub27359-16012

sub27384-16380

main27359-16180i4EFE,5EF#..EL4#..MTM199009-199409

sub27359-16181

sub27384-16380

main27359-16270i1NT..NL40..5F199009-199208

main27359-16270i4EFE,5EF#..EL4#..ATM199009-199409

main27359-16270i1NT..NL40..5F199208-199409

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-16011i4EFE,5EF#..EL4#..MTM199009-199105

sub27370-54450

main27370-35060i1NT..NL40199208-199409

main27370-42010i1NT..NL40..5F199009-199105

sub27370-75060

main27370-54450i4EFE,5EF#..EL4#..MTM199105-199409

sub27370-58320

main27370-63021i1NT..NL40199009-199105

sub27370-70300

main27370-70300i1NT..NL40199105-199208

sub27370-35060

main27370-75060i1NT..NL40..5F199105-199208

main27370-75060i4EFE,5EF#..EL4#..ATM199009-199409

main27370-75060i1NT..NL40..5F199208-199409

27371BRUSH, ALTERNATOR

main27371-63020i1NT..NL40;4EFE,5EF#..EL4#..MTM199009-199105

sub27371-70300

main27371-70300i1NT..NL40;4EFE,5EF#..EL4#..MTM199105-199409

27372SPRING, ALTERNATOR BRUSH

main27372-63020i1NT..NL40;4EFE,5EF#..EL4#..MTM199009-199409

sub27372-87501

27387INSULATOR, TERMINAL

main27387-42020i4EFE,5EF#..EL4#..ATM199009-199409

main27387-42020i1NT..NL40..5F199009-199208

main27387-42020i1NT..NL40..5F199208-199409

main27387-70170i1NT..NL40;4EFE,5EF#..EL4#..MTM199009-199409

27411PULLEY, ALTERNATOR

main27411-11060i4EFE,5EF#..EL4#..ATM199009-199409

main27411-55010i1NT..NL40199009-199409

main27411-55040i1NT..NL40..5F199009-199208

main27411-55040i1NT..NL40..5F199208-199409

main27411-65010i4EFE,5EF#..EL4#..MTM199009-199409

27443COVER, ALTERNATOR BEARING

main27443-63020i4EFE,5EF#,1NT..EL4#,NL40199009-199409

27700AREGULATOR ASSY, GENERATOR

main27700-11030i4EFE,5EF#..EL4#199009-199208

sub27700-72090

main27700-11070i4EFE,5EF#..EL4#199208-199409

main27700-65010i1NT..NL40199305-199409

sub27700-35040

main27700-70030i1NT..NL40199009-199208

main27700-74030i4EFE,5EF#..EL4#..ATM199208-199409

2738963020INSULATOR, TERMINAL

main27389-63020

9009900949

main90099-00949

9009900959

main90099-00959

9009904966

main90099-04966

9009905119

main90099-05119

9009905171

main90099-05171

9009905172

main90099-05172

9010510102

main90105-10102

9011908053

main90119-08053

9011908065

main90119-08065

9017906158

main90179-06158

9017910016

main90179-10016

9331914025

main93319-14025

29 parts on this diagram · 2 diagrams in section
