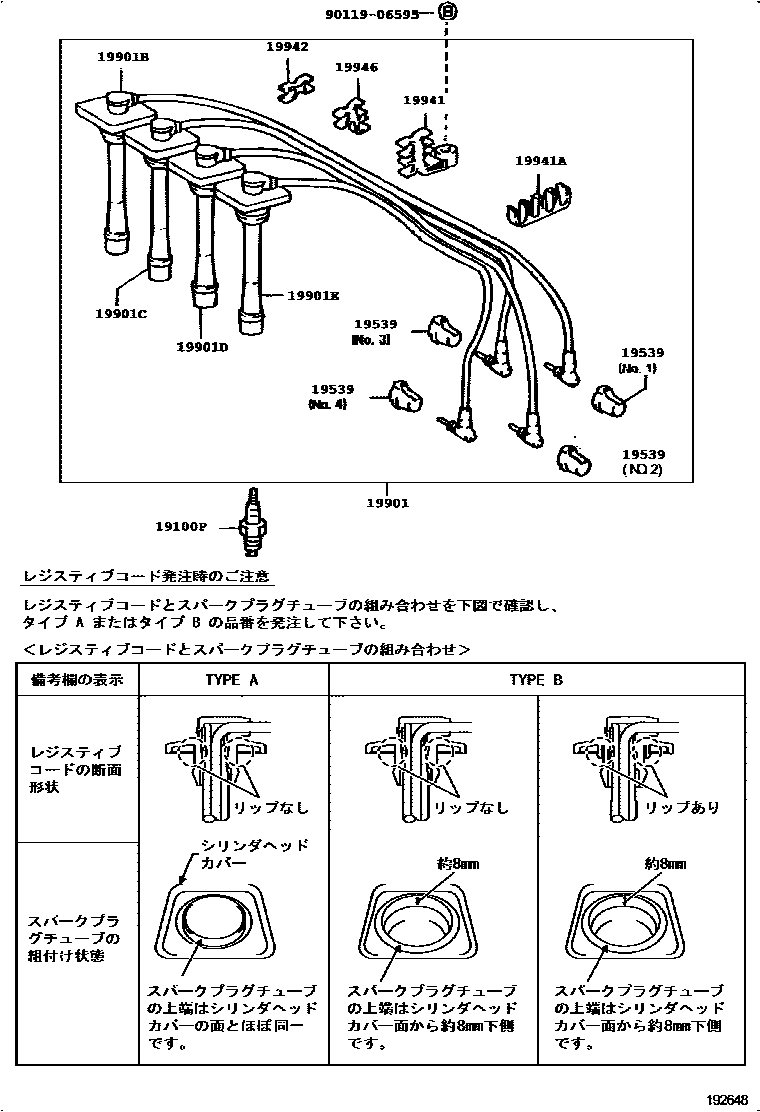

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1 0003 1

19100PPLUG, SPARK

main90919-01164i4EFE,5EFE..EL4#199009-199409

main90919-01184i5EFHE..EL43199009-199409

19539HOLDER, RESISTIVE CODE, NO.4

main19531-74010i5EFHE..EL43199009-199409

main19539-11020i4EFE,5EFE..EL4#199405-199409

main19539-11030i4EFE,5EFE..EL4#199405-199409

main19539-46010i5EFHE..EL43199009-199409

NO.1,5

main19539-50010i4EFE,5EFE..EL4#199208-199405

main19539-50010i5EFHE..EL43199009-199409

main19539-70010i4EFE,5EFE..EL4#199208-199405

main19539-70010i5EFHE..EL43199009-199409

main19539-74010i5EFHE..EL43199009-199409

19901CORD SET, COIL & SPARK, W/RESISTIVE

main90919-21510i5EFHE..EL43199009-199208

main90919-21558i5EFHE..EL43199208-199409

main90919-22296i4EFE,5EFE..EL4#199009-199208

main90919-22325i4EFE,5EFE..EL4#199407-199409

sub90919-22418

main90919-22399i4EFE,5EFE..EL4#199208-199407

sub90919-22421

19901BCORD, SPARK PLUG RESISTIVE, NO.1

main90919-15096i4EFE,5EFE..EL4#199009-199208

main90919-15150i5EFHE..EL43199009-199208

main90919-15199i4EFE,5EFE..EL4#199407-199409

sub90919-15586

main90919-15340i5EFHE..EL43199208-199409

main90919-15543i4EFE,5EFE..EL4#199208-199407

sub90919-15597

19901CCORD, SPARK PLUG RESISTIVE, NO.2

main90919-15097i4EFE,5EFE..EL4#199009-199208

main90919-15151i5EFHE..EL43199009-199208

main90919-15200i4EFE,5EFE..EL4#199407-199409

sub90919-15587

main90919-15341i5EFHE..EL43199208-199409

main90919-15544i4EFE,5EFE..EL4#199208-199407

19901DCORD, SPARK PLUG RESISTIVE, NO.3

main90919-15098i4EFE,5EFE..EL4#199009-199208

main90919-15148i5EFHE..EL43199009-199208

main90919-15201i4EFE,5EFE..EL4#199407-199409

sub90919-15588

main90919-15342i5EFHE..EL43199208-199409

main90919-15545i4EFE,5EFE..EL4#199208-199407

19901ECORD, SPARK PLUG RESISTIVE, NO.4

main90919-15099i4EFE,5EFE..EL4#199009-199208

main90919-15149i5EFHE..EL43199009-199208

main90919-15202i4EFE,5EFE..EL4#199407-199409

sub90919-15589

main90919-15343i5EFHE..EL43199208-199409

main90919-15550i4EFE,5EFE..EL4#199208-199407

19941CLAMP, RESISTIVE CORD, NO.1

main90929-01258i4EFE,5EF#..EL4#199009-199409

19941ACLAMP(FOR RESISTIVE CORD)

main90464-00559i4EFE,5EF#..EL4#199009-199409

19942CLAMP, RESISTIVE CORD, NO.2

main90464-00560i4EFE,5EF#..EL4#199009-199409

19946CLAMP, RESISTIVE CORD, NO.3

main90464-00561i4EFE,5EF#..EL4#199009-199409

9011906595

main90119-06595

12 parts on this diagram · 3 diagrams in section
