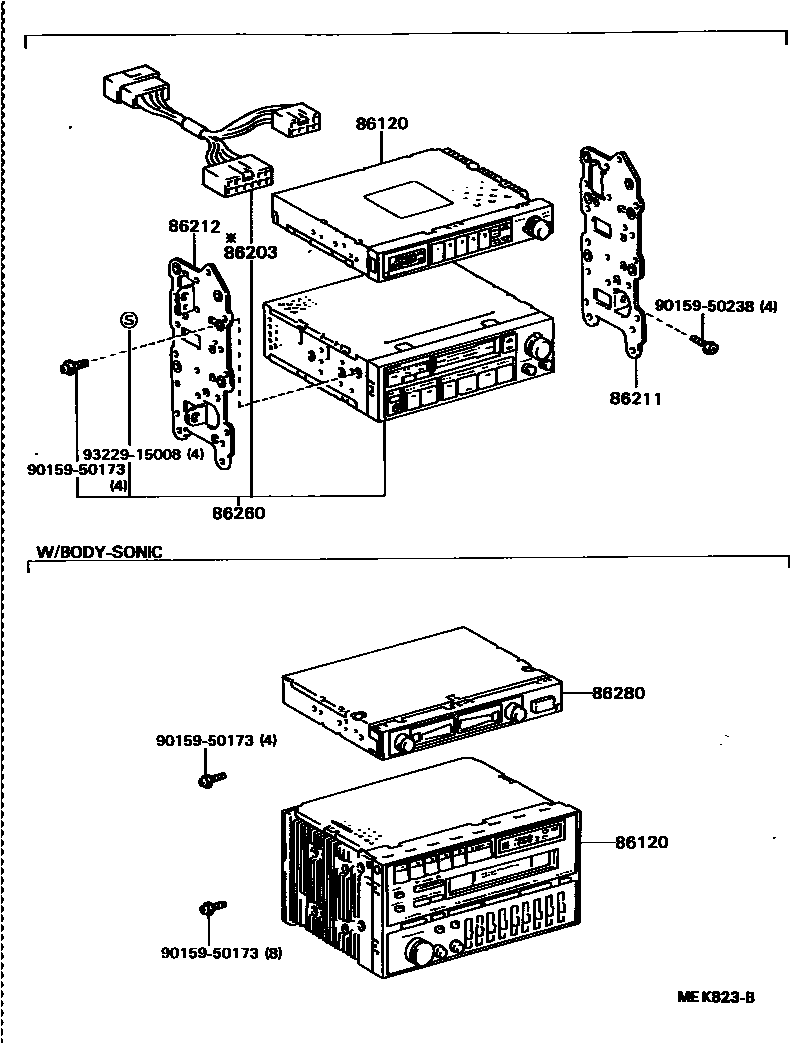

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1 0004 1

86120RECEIVER ASSY, RADIO

main86120-10400iEL30..TX199004-199009

main86120-10400iEL30..TX199005-199009

main86120-14670iEL31,NL30..ZX198805-199009

main86120-16230iEL3#,NL30..GL,LIM,TX,ZX198805-199009

main86120-16290iEL3#,NL30..CD,GL,LIM,TX,ZX198805-199009

sub86120-16291

main86120-16310iEL31..AR,GP,SRI198805-199009

main86120-16340iEL31..EFI,TBO198805-199009

main86120-16400iEL31..EFI,TBO198805-199009

main86120-16540iEL31..EFI,TBO198805-199009

86203WIRE, RADIO

main86022-19225iEL3#,NL30198805-199009

main86203-16110iEL3#,NL30198805-199009

86211BRACKET, RADIO, NO.1

main86211-16180iEL3#,NL30198805-199009

86212BRACKET, RADIO, NO.2

main86212-16180iEL3#,NL30198805-199009

86260TAPE PLAYER ASSY

main86260-19105iEL3#,NL30198805-199009

main86260-19115iEL3#,NL30198805-199009

main86260-19125iEL3#,NL30198805-199009

main86260-19135iEL3#,NL30198805-199009

main86260-19145iEL3#,NL30198805-199009

main86260-19155iEL3#,NL30198805-199009

main86260-19165iEL3#,NL30198805-199009

main86260-19175iEL3#,NL30198805-199009

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-16040iEL31..EFI,TBO198805-199009

main86280-16050iEL31,NL30..GP,SRI,ZX198805-199009

9015950173

main90159-50173

9015950238

main90159-50238

9322915008

main93229-15008

9 parts on this diagram · 4 diagrams in section
