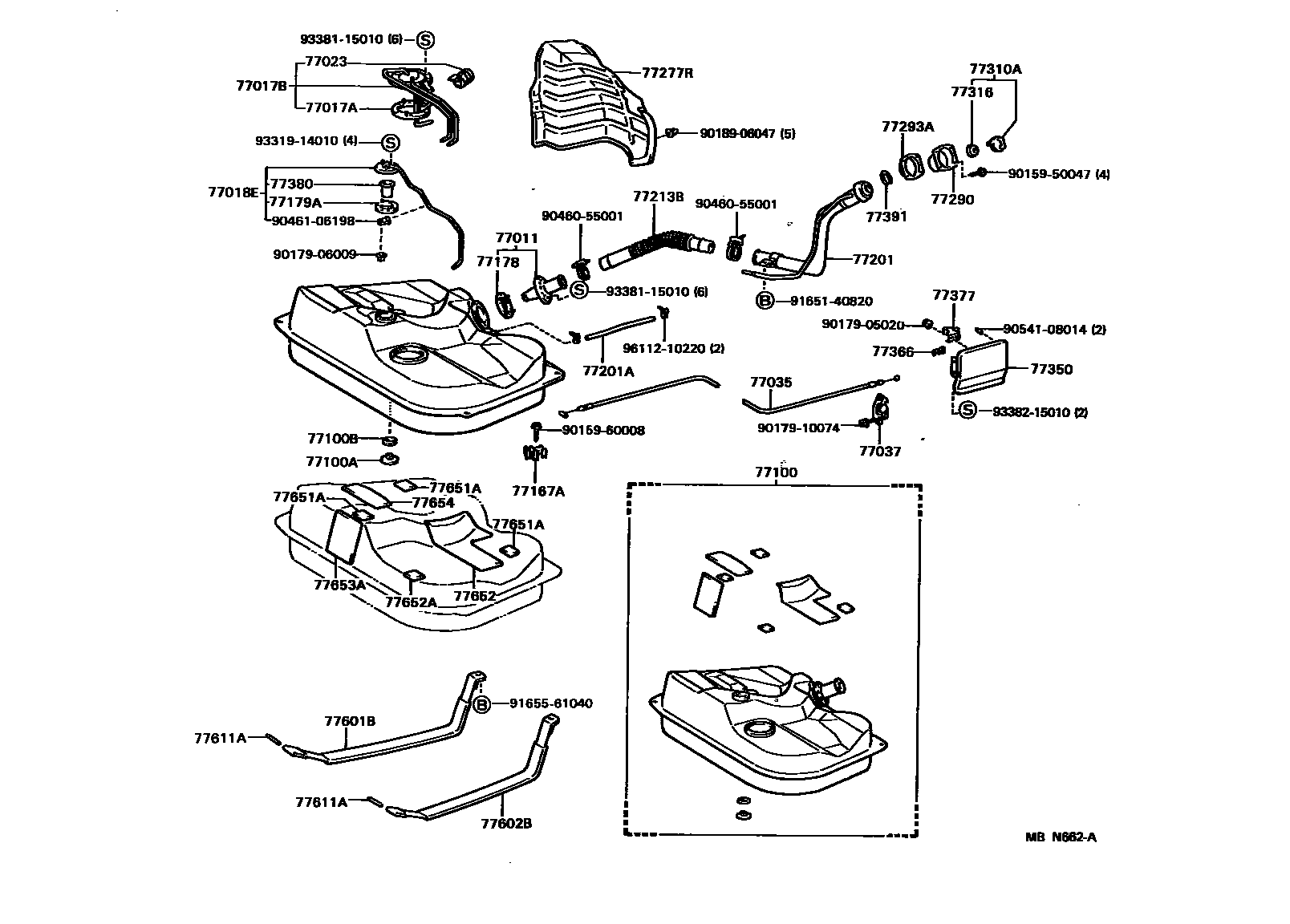

FUEL TANK & TUBE
77017AGASKET, FUEL TANK VENT
77017BTUBE SUB-ASSY, FUEL TANK VENT
77023FILTER SUB-ASSY, FUEL SUCTION TUBE
77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77100TANK ASSY, FUEL
77100APLUG(FOR FUEL TANK)
77100BGASKET(FOR FUEL TANK)
77167ASUPPORT, FUEL TANK VENT TUBE, NO.2
77178GASKET, FUEL TANK FILLER PIPE, LOWER
77179AGASKET, FUEL TANK BREATHER TUBE
77201PIPE SUB-ASSY, FUEL TANK INLET
77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)
77213BHOSE, FUEL TANK TO FILLER PIPE
77277RPROTECTOR, FUEL TANK FILLER PIPE
77290SHIELD ASSY, FUEL TANK FILLER PIPE
77293ASHIELD, FUEL TANK FILLER PIPE, NO.3
77316GASKET, FUEL TANK CAP
77350LID ASSY, FUEL FILLER OPENING
SUPER WINDY
77366SPRING, FUEL FILLER OPENING LID HINGE
77377RETAINER, FUEL FILLER OPENING LID LOCK
77380VALVE ASSY, FUEL CUT OFF
77391RING, FUEL INLET BOX
77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH
77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH
77611APIN (FOR FUEL TANK BAND)
77651ACUSHION, FUEL TANK, NO.1
77652CUSHION, FUEL TANK, NO.1
77652ACUSHION, FUEL TANK, NO.2
77653ACUSHION, FUEL TANK, NO.3
77654CUSHION, FUEL TANK, NO.2
9015950047
main90159-50047
9015960008
main90159-60008
9017905020
main90179-05020
9017906009
main90179-06009
9017910074
main90179-10074
9018906047
main90189-06047
9046055001
main90460-55001
9046106198
main90461-06198
9054108014
main90541-08014
9165140820
main91651-40820
9165561040
main91655-61040
9331914010
main93319-14010
9338115010
main93381-15010
9338215010
main93382-15010
9611210220
main96112-10220
49 parts on this diagram · 4 diagrams in section
