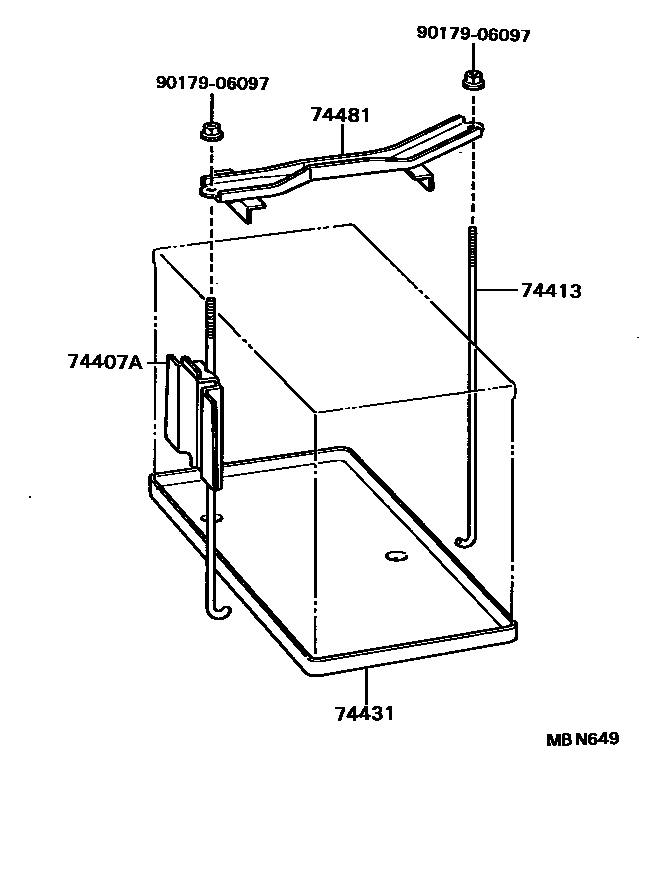

BATTERY CARRIER

74407ABOLT SUB-ASSY, BATTERY CLAMP

main74407-16020iEL3#,NL30198805-199009

74413BOLT, BATTERY CLAMP

main74451-16010iEL3#,NL30198805-199009

74431TRAY, BATTERY

main74431-14010iEL3#..CBR,EFI;EL31..5F..TBO198805-199009

sub74431-14050

main74431-14020iEL31..4FC..TBO198805-199009

main74431-14030iNL30198805-199009

sub74431-52040

main74431-14040iNL30..4FC198805-199009

74481CLAMP, BATTERY HOLD DOWN

main74404-16060iEL3#198805-199009

main74404-16080iNL30198805-199009

9017906097

main90179-06097

5 parts on this diagram · 1 diagram in section
