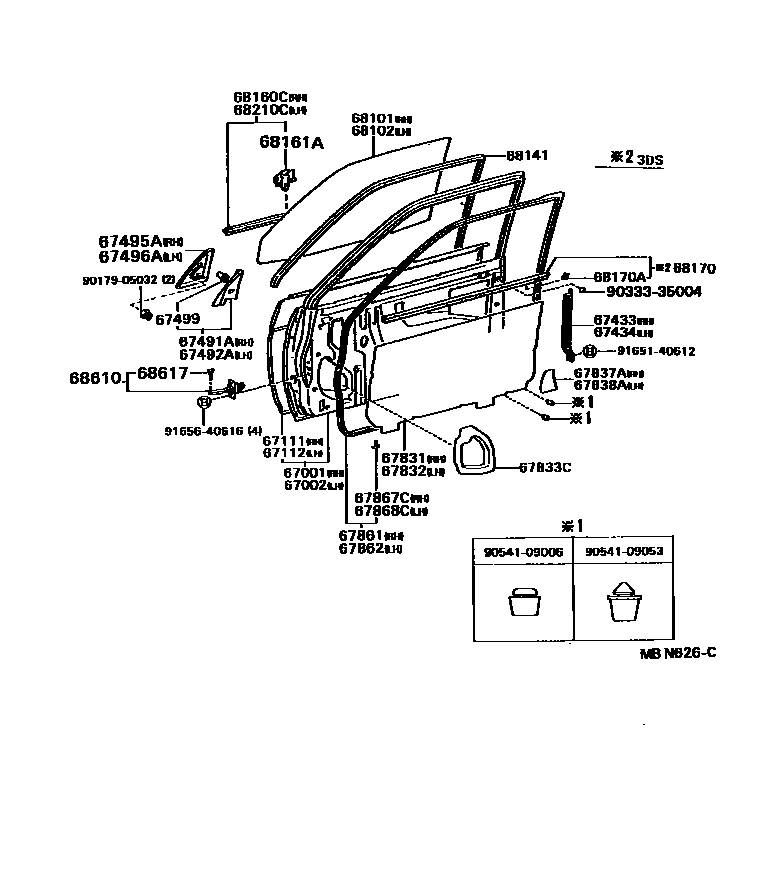

FRONT DOOR PANEL & GLASS

0001 1 0002 1 0003 1

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-16150iEL30,NL30..3DS..(CD,GL,TX)198805-199009

main67001-16200iEL3#..3DS..(AR,GP,LIM,SRI,ZX)198805-199009

sub67001-16150

main67001-16210iEL30,NL30..5DS..(GL,TX)198805-199009

main67001-16280iEL3#,NL30..5DS..(LIM,ZX)198805-199009

sub67001-16210

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-16110iEL30,NL30..3DS..(CD,GL,TX)198805-199009

main67002-16170iEL30,NL30..5DS..(GL,TX)198805-199009

main67002-16240iNL30..ZX198805-199009

sub67002-16170

67111PANEL, FRONT DOOR, OUTER RH

main67111-16160iEL3#,NL30..3DS198805-199009

main67111-16180iEL3#,NL30..5DS198805-199009

67112PANEL, FRONT DOOR, OUTER LH

main67112-16140iEL3#,NL30..3DS198805-199009

main67112-16160iEL3#,NL30..5DS198805-199009

67433FRAME, FRONT DOOR WINDOW, REAR LOWER RH

main67433-16040iEL3#,NL30..3DS198805-199009

main67433-16050iEL3#,NL30..5DS198805-199009

67434FRAME, FRONT DOOR WINDOW, REAR LOWER LH

main67434-16040iEL3#,NL30..3DS198805-199009

main67434-16050iEL3#,NL30..5DS198805-199009

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-16050iEL3#,NL30..3DS198805-199009

main67491-16070iEL3#,NL30..5DS198805-199009

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-16050iEL3#,NL30..3DS198805-199009

main67492-16070iEL3#,NL30..5DS198805-199009

67495ACOVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH

main67495-16030iEL3#..3DS..(AR,GP,LIM,SRI,ZX)198805-199009

sub67495-16040

main67495-16040iEL30,NL30..3DS..(CD,TX)198805-199009

main67495-16050iEL30,NL30..5DS..GL198805-199009

sub67495-16060

main67495-16060iEL30,NL30..5DS..TX198805-199009

67496ACOVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH

main67496-16030iEL3#..3DS..(AR,GP,LIM,SRI,ZX)198805-199009

sub67496-16040

main67496-16040iEL30,NL30..3DS..(CD,TX)198805-199009

main67496-16050iEL3#,NL30..5DS..(LIM,ZX)198805-199009

sub67496-16060

main67496-16060iEL30,NL30..5DS..TX198805-199009

67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH

main67499-12020iEL3#,NL30..3DS198805-199009

main67499-12030iEL3#,NL30..5DS198805-199009

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-16100iEL3#,NL30..3DS198805-199009

sub67831-16120

main67831-16140iEL3#,NL30..5DS198805-199009

main67831-16150iEL31,NL30..5DS..ZX198805-199009

main67831-16160iEL30..5DS..LIM198805-199009

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67831-16100iEL3#,NL30..3DS198805-199009

sub67831-16120

main67831-16150iEL3#,NL30..5DS198805-199009

main67831-16170iEL3#,NL30..5DS..(LIM,ZX)198805-199009

main67832-16110iEL3#,NL30..5DS198805-199009

67833CCOVER, FRONT DOOR SPEAKER HOLE

main67833-16010iEL31..3DS..(GP,SRI,ZX)198805-199009

67837ASEAL, FRONT DOOR VENT, RH

main67837-16020iEL3#,NL30..5DS198805-199009

67838ASEAL, FRONT DOOR VENT, LH

main67838-16020iEL3#,NL30..5DS198805-199009

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-16220iEL3#,NL30..5DS198805-199009

main67861-16240iEL3#,NL30..3DS198805-199009

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-16220iEL3#,NL30..5DS198805-199009

main67862-16240iEL3#,NL30..3DS198805-199009

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67868-30040iEL3#,NL30..5DS198805-199009

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67868-30040iEL3#,NL30..5DS198805-199009

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68111-16130iEL30,NL30..3DS..(CD,TX)198805-199009

sub68111-16140

main68111-16140iEL3#,NL30..3DS..(AR,GL,GP,LIM,SRI,ZX)198805-199009

main68111-16160iEL30,NL30..5DS..TX198805-199009

sub68111-16170

main68111-16170iEL3#,NL30..5DS..(GL,LIM,ZX)198805-199009

main68111-16180iEL30..3DS..LIM198901-199009

main68111-16210iEL30..5DS..LIM198901-199009

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68112-16130iEL30,NL30..3DS..(CD,TX)198805-199009

main68112-16140iEL3#,NL30..3DS..(AR,GL,GP,LIM,SRI,ZX)198805-199009

main68112-16160iEL30,NL30..5DS..TX198805-199009

sub68112-16170

main68112-16170iEL3#,NL30..5DS..(GL,LIM,ZX)198805-199009

main68112-16180iEL30..3DS..LIM198901-199009

main68112-16210iEL30..5DS..LIM198901-199009

68141RUN, FRONT DOOR GLASS

main68141-16150iEL3#,NL30..3DS198805-199009

main68141-16160iEL3#,NL30..5DS198805-199009

68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH

main68160-16070iEL30,NL30..3DS..(CD,GL,TX)198805-199009

main68160-16080iEL30,NL30..5DS..(GL,TX)198805-199009

68161ACLIP(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP)

main68211-16010iEL30,NL30..5DS..(GL,TX)198805-199009

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68170-16080iEL3#,NL30..3DS198805-199009

main68171-16070iEL30,NL30..5DS..(GL,TX)198805-199009

main68172-16070iEL30,NL30..5DS..(GL,TX)198805-199009

main68172-16080iEL3#,NL30..5DS..(LIM,ZX)198805-199009

68170ACLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET)

main68211-10030iEL3#,NL30..3DS198805-199009

68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH

main68210-16060iEL30,NL30..3DS..(CD,GL,TX)198805-199009

main68210-16070iEL30,NL30..5DS..(GL,TX)198805-199009

68610CHECK ASSY, FRONT DOOR

main68610-10020iEL3#,NL30198805-199009

68617PIN, FRONT DOOR CHECK

main68617-90A00iEL3#,NL30198805-199009

9017905032

main90179-05032

9033335004

main90333-35004

9054109006

main90541-09006

9054109053

main90541-09053

9165140612

main91651-40612

9165640616

main91656-40616

36 parts on this diagram · 3 diagrams in section
