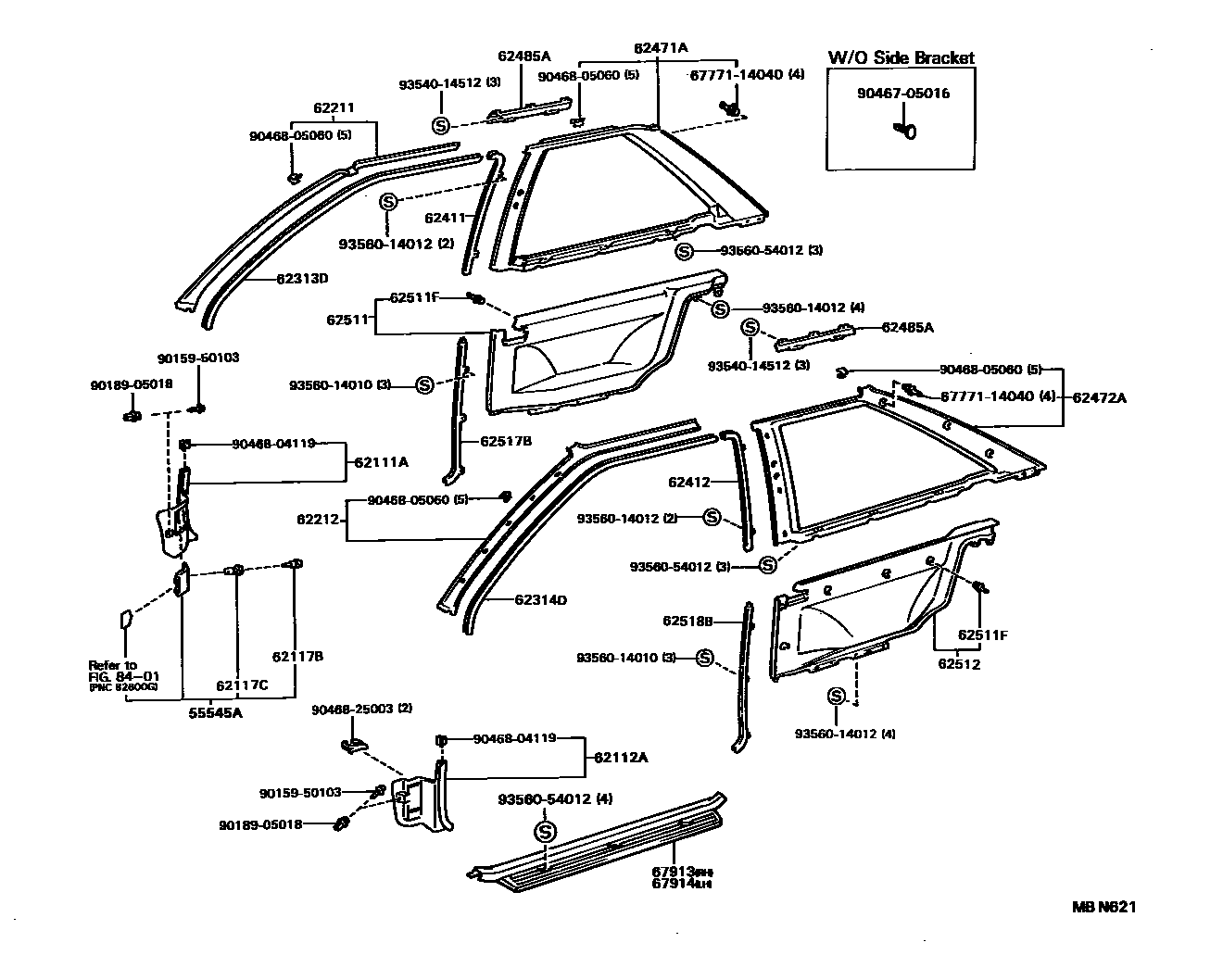

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0002 1

55545ACOVER, FUSE BOX OPENING

main55545-16100-01iEL3#,NL30..AR,GL,GP,LIM,SRI,TX,ZX198805-199009

BLACK,TRIM2#

main55545-16100-04iEL3#,NL30198805-199009

BLUE,TRIM8#

62111ATRIM SUB-ASSY, COWL SIDE, RH

main62111-16070-01iEL3#,NL30..AR,GL,GP,LIM,SRI,TX,ZX198805-199009

BLACK,TRIM2#

main62111-16070-04iEL3#,NL30198805-199009

BLUE,TRIM8#

62112ATRIM SUB-ASSY, COWL SIDE, LH

main62112-16050-01iEL3#,NL30..AR,GL,GP,LIM,SRI,TX,ZX198805-199009

BLACK,TRIM2#

main62112-16050-04iEL3#,NL30198805-199009

BLUE,TRIM8#

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main90467-05015-01iEL3#,NL30198805-199009

BLACK,TRIM2#,8#

sub90467-05015¥190

main90467-05015-24iEL3#,NL30198805-198808

BLUE,TRIM8#

sub90467-05015¥190

62117CCLIP, NO.2(FOR COWL SIDE TRIM)

main90467-08031-01iEL3#,NL30198805-199009

BLACK,TRIM2#,8#

sub90467-08031¥210

main90467-08031-11iEL3#,NL30..AR,GL,GP,LIM,SRI,TX,ZX198805-198808

BLACK,TRIM2#

sub90467-08031¥210

main90467-08031-24iEL3#,NL30198805-198808

BLUE,TRIM8#

sub90467-08031¥210

62211GARNISH, FRONT PILLAR, RH

main62211-16030-01iEL3#,NL30..3DS..(AR,GL,GP,LIM,SRI,TX,ZX)198805-199009

BLACK,TRIM2#

main62211-16030-04iEL3#,NL30..3DS198805-199009

BLUE,TRIM8#

main62211-16040-01iEL3#,NL30..5DS198805-199009

BLACK,TRIM2#

main62211-16040-04iEL3#,NL30..5DS198805-199009

BLUE,TRIM8#

62212GARNISH, FRONT PILLAR, LH

main62212-16030-01iEL3#,NL30..3DS..(AR,GL,GP,LIM,SRI,TX,ZX)198805-199009

BLACK,TRIM2#

sub62212-16030¥2,920

main62212-16030-04iEL3#,NL30..3DS198805-199009

BLUE,TRIM8#

sub62212-16030¥2,920

main62212-16030-06iEL30..3DS..TX198910-199009

BROWN,TRIM8#

sub62212-16030¥2,920

main62212-16040-01iEL3#,NL30..5DS198805-199009

BLACK,TRIM2#

main62212-16040-04iEL3#,NL30..5DS198805-199009

BLUE,TRIM8#

62313DTRIM, FRONT DOOR OPENING, RH

main62313-16060-01iEL3#,NL30..3DS..(AR,GL,GP,LIM,SRI,TX,ZX)198805-199009

BLACK,TRIM2#

main62313-16060-04iEL3#,NL30..3DS198805-199009

BLUE,TRIM8#

main62313-16070-01iEL3#,NL30..5DS198805-199009

BLACK,TRIM2#

sub62313-16060¥2,300

main62313-16070-04iEL3#,NL30..5DS198805-199009

BLUE,TRIM8#

sub62313-16060¥2,300

62314DTRIM, FRONT DOOR OPENING, LH

main62313-16060-01iEL3#,NL30..3DS..(AR,GL,GP,LIM,SRI,TX,ZX)198805-199009

BLACK,TRIM2#

main62313-16060-04iEL3#,NL30..3DS198805-199009

BLUE,TRIM8#

main62313-16070-01iEL3#,NL30..5DS198805-199009

BLACK,TRIM2#

sub62313-16060¥2,300

main62313-16070-04iEL3#,NL30..5DS198805-199009

BLUE,TRIM8#

sub62313-16060¥2,300

62411GARNISH, CENTER PILLAR, RH

main62411-16060-01iEL3#,NL30..3DS..(AR,GL,GP,LIM,SRI,TX,ZX)198805-199009

BLACK,TRIM2#

sub62411-16060¥2,490

main62411-16060-04iEL3#,NL30..3DS198805-199009

BLUE,TRIM8#

sub62411-16060¥2,490

62412GARNISH, CENTER PILLAR, LH

main62412-16060-01iEL3#,NL30..3DS..(AR,GL,GP,LIM,SRI,TX,ZX)198805-199009

BLACK,TRIM2#

sub62412-16060¥2,490

main62412-16060-04iEL3#,NL30..3DS198805-199009

BLUE,TRIM8#

sub62412-16060¥2,490

62471AGARNISH, ROOF SIDE, INNER RH

main62471-16140-01iEL3#,NL30..3DS..(AR,GL,GP,LIM,SRI,TX,ZX)198805-199009

BLACK,TRIM2#

main62471-16140-04iEL3#,NL30..3DS198805-199009

BLUE,TRIM8#

main62471-16160-01iEL3#,NL30..5DS198805-199009

BLACK,TRIM2#

main62471-16160-04iEL3#,NL30..5DS198805-199009

BLUE,TRIM8#

62472AGARNISH, ROOF SIDE, INNER LH

main62472-16140-01iEL3#,NL30..3DS..(AR,GL,GP,LIM,SRI,TX,ZX)198805-199009

BLACK,TRIM2#

main62472-16140-04iEL3#,NL30..3DS198805-199009

BLUE,TRIM8#

main62472-16160-01iEL3#,NL30..5DS198805-199009

BLACK,TRIM2#

main62472-16160-04iEL3#,NL30..5DS198805-199009

BLUE,TRIM8#

62485ARETAINER, ROOF SIDE INNER GARNISH

main62485-16010iEL3#,NL30..3DS¥2,160198805-199009

main62485-16020iEL3#,NL30..5DS¥1,180198805-199009

62511BOARD, QUARTER INSIDE TRIM, RH

main62510-16420-01iEL3#,NL30..3DS..(AR,GL,TX)198805-199009

BLACK,TRIM2#

main62510-16420-04iEL3#,NL30..3DS..(AR,CD,GL,TX)198805-199009

BLUE,TRIM8#

main62510-16510-03iEL30..3DS..LIM198805-199009

GRAY,TRIM2#

main62510-16510-04iEL30..3DS..LIM198805-199009

BLUE,TRIM8#

main62510-16520-01iEL31..3DS..ZX198805-199009

BLACK,TRIM2#

main62510-16520-04iEL31..3DS..ZX198805-199009

BLUE,TRIM8#

main62510-16530-01iEL31..EFI,TBO198805-199009

BLACK,TRIM2#

main62510-16530-04iEL31..EFI,TBO198805-199009

BLUE,TRIM8#

62511FRETAINER (FOR QUARTER INSIDE TRIM BOARD)

main67771-32010iEL3#,NL30..3DS¥230198805-199009

sub67771-14040¥180

62512BOARD, QUARTER INSIDE TRIM, LH

main62520-16390-01iEL3#,NL30..3DS..(AR,GL,TX)198805-199009

BLACK,TRIM2#

main62520-16390-04iEL3#,NL30..3DS..(AR,CD,GL,TX)198805-199009

BLUE,TRIM8#

main62520-16470-03iEL30..3DS..LIM198805-199009

GRAY,TRIM2#

main62520-16470-04iEL30..3DS..LIM198805-199009

BLUE,TRIM8#

main62520-16480-01iEL31..3DS..ZX198805-199009

BLACK,TRIM2#

main62520-16480-04iEL31..3DS..ZX198805-199009

BLUE,TRIM8#

main62520-16490-01iEL31..EFI,TBO198805-199009

BLACK,TRIM2#

main62520-16490-04iEL31..EFI,TBO198805-199009

BLUE,TRIM8#

62517BBASE, QUARTER TRIM, FRONT RH

main62517-16020-01iEL3#,NL30..3DS..(AR,GL,GP,LIM,SRI,TX,ZX)198805-199009

BLACK,TRIM2#

sub62517-16020¥1,670

main62517-16020-04iEL3#,NL30..3DS198805-199009

BLUE,TRIM8#

sub62517-16020¥1,670

62518BBASE, QUARTER TRIM, FRONT LH

main62518-16020-01iEL3#,NL30..3DS..(AR,GL,GP,LIM,SRI,TX,ZX)198805-199009

BLACK,TRIM2#

main62518-16020-04iEL3#,NL30..3DS198805-199009

BLUE,TRIM8#

67913PLATE, FRONT DOOR SCUFF, RH

main67913-16050-01iEL3#,NL30..3DS..(AR,GL,GP,LIM,SRI,TX,ZX)198805-199009

BLACK,TRIM2#

sub67913-16050¥3,940

main67913-16050-04iEL3#,NL30..3DS198805-199009

BLUE,TRIM8#

sub67913-16050¥3,940

main67913-16060-01iEL3#,NL30..5DS198805-199009

BLACK,TRIM2#

sub67913-16060¥2,350

main67913-16060-04iEL3#,NL30..5DS198805-199009

BLUE,TRIM8#

sub67913-16060¥2,350

67914PLATE, FRONT DOOR SCUFF, LH

main67913-16050-01iEL3#,NL30..3DS..(AR,GL,GP,LIM,SRI,TX,ZX)198805-199009

BLACK,TRIM2#

sub67913-16050¥3,940

main67913-16050-04iEL3#,NL30..3DS198805-199009

BLUE,TRIM8#

sub67913-16050¥3,940

main67913-16060-01iEL3#,NL30..5DS198805-199009

BLACK,TRIM2#

sub67913-16060¥2,350

main67913-16060-04iEL3#,NL30..5DS198805-199009

BLUE,TRIM8#

sub67913-16060¥2,350

8401

6777114040WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-14040¥180

9015950103

main90159-50103¥120

9018905018

main90189-05018¥120

9046705016

main90467-05016¥130

9046804119

main90468-04119¥190

9046805060

main90468-05060¥90

9046825003

main90468-25003¥160

9354014512

main93540-14512¥120

9356014010

main93560-14010¥60

9356014012

main93560-14012¥70

9356054012

main93560-54012¥60

33 parts on this diagram · 2 diagrams in section
