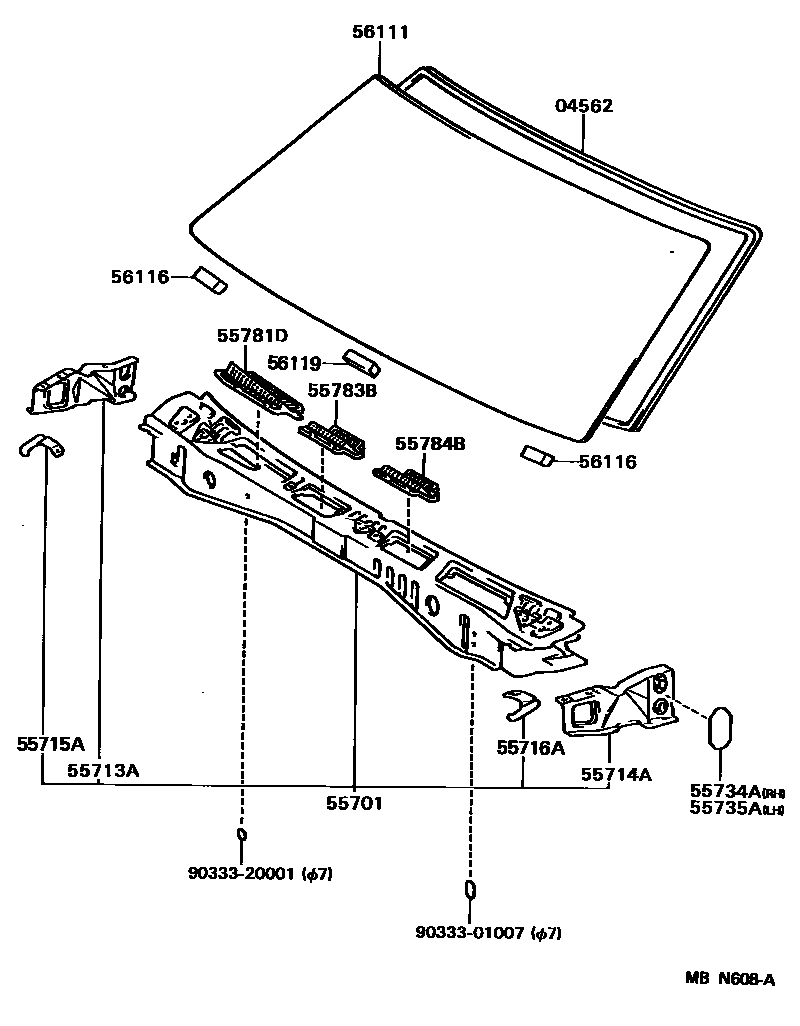

COWL PANEL & WINDSHIELD GLASS

04562DAM KIT, WINDSHIELD GLASS

main04562-30040iEL3#,NL30198805-199009

55701PANEL SUB-ASSY, COWL

main55700-16080iEL3#..CBR198805-199009

main55700-16100iEL31..EFI,TBO198805-199009

main55700-16160iNL30198805-199009

55713APANEL, COWL TOP SIDE, RH

main55713-16030iEL3#,NL30198805-199009

55714APANEL, COWL TOP SIDE, LH

main55714-16030iEL3#,NL30198805-199009

55715ABRACE, COWL TOP TO APRON, RH

main55715-16030iEL3#,NL30198805-199009

55716ABRACE, COWL TOP TO APRON, LH

main55716-16030iEL3#,NL30198805-199009

55734APLATE, WATER GUARD, RH

main55734-16030iEL3#,NL30198805-199009

55735APLATE, WATER GUARD, LH

main55734-16030iEL3#,NL30198805-199009

55781DLOUVER, COWL TOP VENTILATOR, RH

main55781-16040iEL3#,NL30198805-199009

sub55781-16050

main55781-16050iEL3#,NL30198805-199009

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55783-16040iEL3#,NL30198805-199009

main55783-16050iEL3#,NL30198805-199009

55784BLOUVER, COWL TOP VENTILATOR, CENTER NO.2

main55784-16020iEL3#,NL30198805-199009

main55784-16030iEL3#,NL30198805-199009

56111GLASS, WINDSHIELD

main56111-16110iEL30,NL30..CD,TX198805-199009

main56111-16120iEL3#,NL30..AR,GL,GP,LIM,SRI,ZX198805-199009

sub56111-16140

main56111-16190iEL30..LIM198901-199009

56116SPACER, WINDSHIELD GLASS

main56116-24010iEL3#,NL30198805-199009

56119SEAL, WINDSHIELD GLASS

main67272-32010iEL3#,NL30198805-199009

9033301007

main90333-01007

9033320001

main90333-20001

16 parts on this diagram · 1 diagram in section
