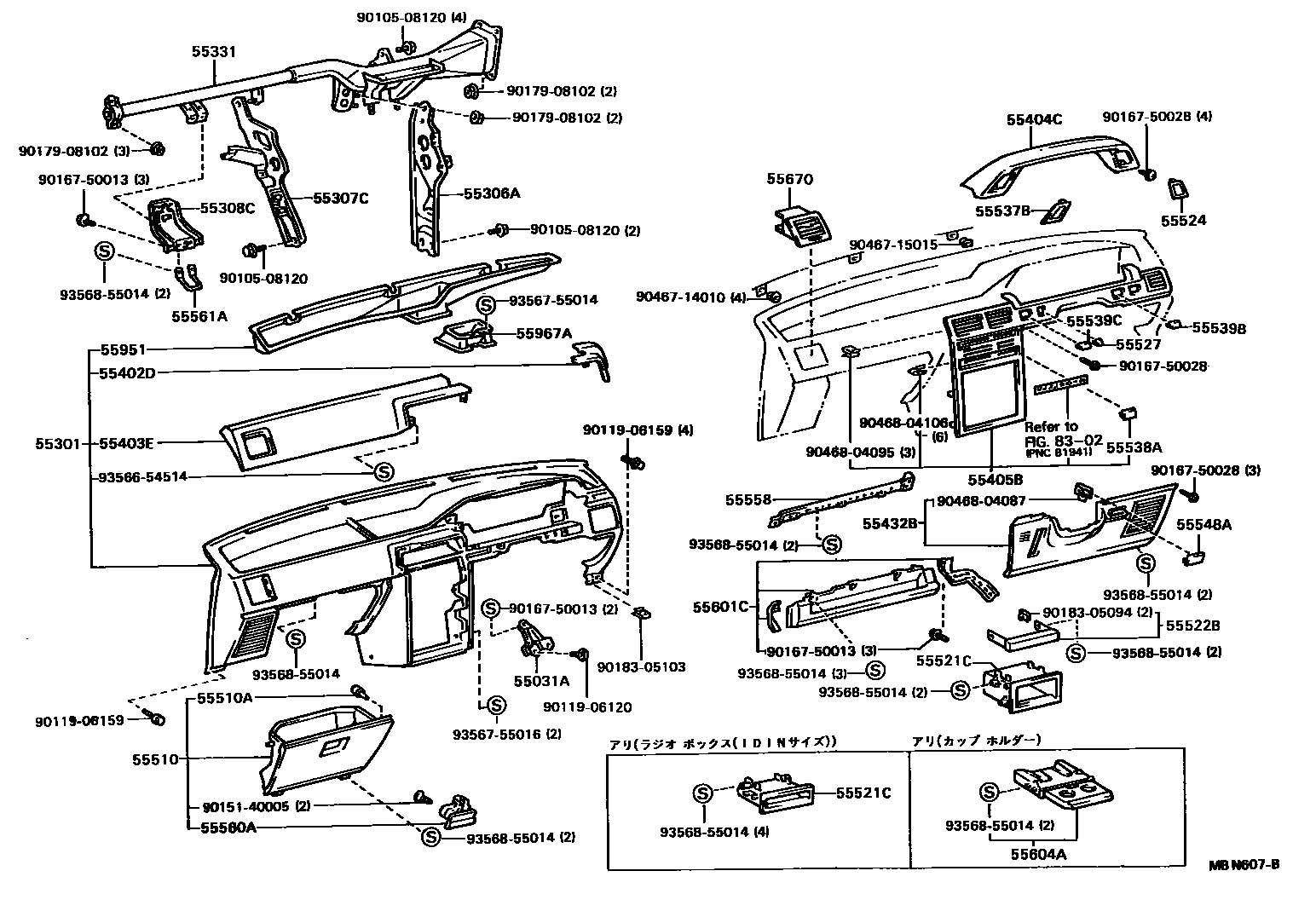

INSTRUMENT PANEL & GLOVE COMPARTMENT

55031ASTAY SUB-ASSY, INSTRUMENT PANEL, NO.1

main55031-16010iEL3#,NL30198805-199009

55301PANEL SUB-ASSY, INSTRUMENT

main55301-16010-01iEL3#,NL30..AR,GL,GP,LIM,SRI,TX,ZX198805-199009

BLACK,TRIM2#

main55301-16010-04iEL3#,NL30198805-199009

BLUE,TRIM8#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-16050iEL3#,NL30198805-199009

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-16050iEL3#,NL30198805-199009

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-16010iEL3#,NL30198805-199009

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-16030iEL3#,NL30198805-199009

55402DPAD SUB-ASSY, INSTRUMENT PANEL SAFETY, NO.1

main55402-16010-01iEL3#,NL30..AR,GL,GP,LIM,SRI,TX,ZX198805-199009

BLACK,TRIM2#

main55402-16010-04iEL3#,NL30198805-199009

BLUE,TRIM8#

55403EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY, NO.2

main55403-16030-01iEL3#,NL30..AR,GL,GP,LIM,SRI,TX,ZX198805-199009

BLACK,TRIM2#

main55403-16030-04iEL3#,NL30198805-199009

BLUE,TRIM8#

55404CPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2

main55404-16090-01iEL3#,NL30..AR,GL,GP,LIM,SRI,TX,ZX198805-199009

BLACK,TRIM2#

main55404-16090-04iEL3#,NL30198805-199009

BLUE,TRIM8#

55405BPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER

main55405-16052iEL3#,NL30..AR,CD,GL,TX198805-199009

main55405-16092iEL3#,NL30..GP,LIM,SRI,ZX198805-199009

55432BPANEL, INSTRUMENT PANEL FINISH, LOWER

main55432-16060-01iNL30;EL3#..AR,GL,GP,SRI,TX198805-199009

BLACK,TRIM2#

main55432-16060-04iNL30;EL3#..AR,CD,GL,GP,SRI,TX198805-199009

BLUE,TRIM8#

main55432-16070-01iEL31..TBO198805-199009

BLACK,TRIM2#

main55432-16070-04iEL31..TBO198805-199009

55510DOOR ASSY, GLOVE COMPARTMENT

main55550-16060-01iEL3#,NL30..AR,GL,GP,LIM,SRI,TX,ZX198805-199009

BLACK,TRIM2#

main55550-16060-04iEL3#,NL30198805-199009

BLUE,TRIM8#

55510ACUSHION(FOR GLOVE COMPARTMENT DOOR)

main90541-03015×3iEL3#,NL30198805-199009

55521CCOVER, STEREO OPENING

main55521-16030iEL30..TX199005-199009

main55521-16040iEL3#,NL30198805-199009

sub55521-36020

55522BCOVER, RADIO TUNER OPENING

main55522-16030iEL3#..CD,GP,SRI198805-199009

55524COVER, SWITCH BACE HOLE

main55524-16030iEL3#,NL30..CD,GL,LIM,TX,ZX198805-199009

55527COVER, TRANSMISSION CONTROL SWITCH HOLE

main55527-16010iEL3#,NL30..(3FC,4F,5F)..(AR,CD,GL,TX)198805-199009

main55527-16020iEL3#,NL30..(3FC,4F,5F)..(GP,LIM,SRI,ZX)198805-199009

55537BCOVER, REAR DEFOGGER SWITCH HOLE

main55537-16020iEL30..CD,TX198805-199009

55538ACOVER, COOLER SWITCH HOLE

main55538-16020iEL3#,NL30198805-199009

55539BCOVER, SPARE SWITCH HOLE, NO.2

main55539-16030iEL3#,NL30..LIM,SRI,ZX198805-199009

main55539-32010iEL3#,NL30..AR,CD,GL,TX198805-199009

sub55539-32030

55539CCOVER, SPARE SWITCH HOLE

main55539-32010iEL30,NL30..CD,TX198805-199009

sub55539-32030

55548ACOVER, INSTRUMENT PANEL HOLE

main55548-16010-01iEL3#..AR,GL,GP,LIM,SRI,TX,ZX198805-199009

BLACK,TRIM2#

main55548-16010-04iEL3#198805-199009

BLUE,TRIM8#

55558REINFORCEMENT, GLOVE COMPARTMENT DOOR

main55558-16040iEL3#,NL30198805-199009

55560ALOCK ASSY, GLOVE COMPARTMENT DOOR

main55560-16040-01iEL3#,NL30..AR,GL,GP,LIM,SRI,TX,ZX198805-199009

NEW BLACK,TRIM2#

sub55560-16050

main55560-16040-04iEL3#,NL30198808-199009

BLUE,TRIM8#

sub55560-16050

55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK

main55561-12040iEL3#,NL30198805-199009

55601CTRAY SUB-ASSY, INSTRUMENT PANEL UNDER

main55601-16030-01iEL3#,NL30..AR,GL,GP,LIM,SRI,TX,ZX198805-199009

BLACK,TRIM2#

main55601-16030-04iEL3#,NL30198805-199009

BLUE,TRIM8#

55604AHOLDER SUB-ASSY, INSTRUMENT PANEL CUP

main55604-19015iEL3#,NL30198805-199005

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-16020-01iEL3#,NL30..AR,GL,GP,LIM,SRI,TX,ZX198805-199009

BLACK,TRIM2#

main55670-16020-04iEL3#,NL30198805-199009

BLUE,TRIM8#

55951NOZZLE, DEFROSTER, FRONT

main55951-16060iEL3#,NL30198805-199009

55967ANOZZLE, DEFROSTER, LOWER

main55967-16020iEL3#,NL30198805-199009

8302

9010508120

main90105-08120

9011906120

main90119-06120

9011906159

main90119-06159

9015140005

main90151-40005

9016750013

main90167-50013

9016750028

main90167-50028

9017908102

main90179-08102

9018305094

main90183-05094

9018305103

main90183-05103

9046714010

main90467-14010

9046715015

main90467-15015

9046804087

main90468-04087

9046804095

main90468-04095

9046804106

main90468-04106

9356654514

main93566-54514

9356755014

main93567-55014

9356755016

main93567-55016

9356855014

main93568-55014

49 parts on this diagram · 1 diagram in section
