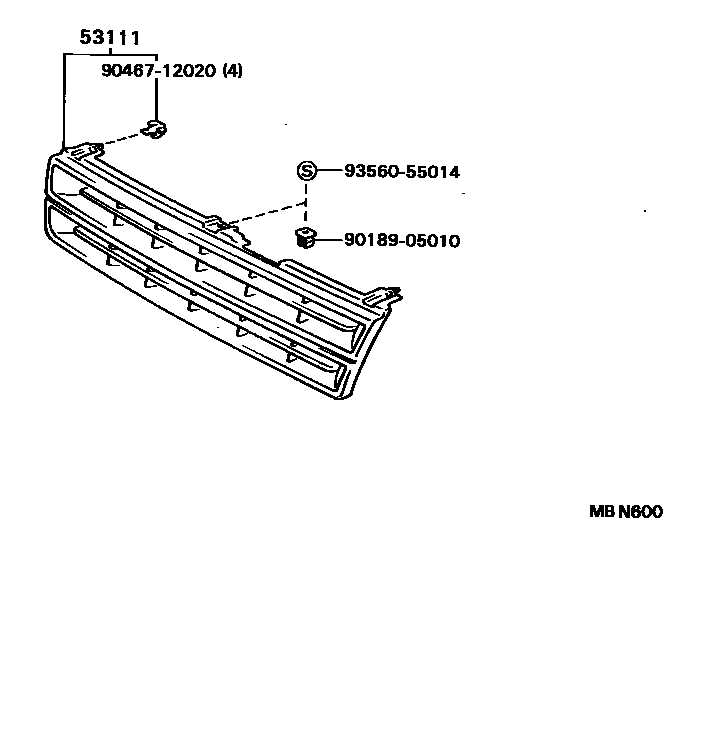

RADIATOR GRILLE

0001 1 0002 1

53111GRILLE, RADIATOR

main53111-16260-01iEL30..3DS..TX199004-199009

sub53111-16260

main53111-16260-01iEL30..TX199004-199009

BLACK,205

sub53111-16260

main53111-16260-02iEL3#,NL30..GL,LIM,TX,ZX198805-199009

RED,3E6

sub53111-16260

main53111-16260-03iEL31,NL30..ZX198805-199009

SILVER M,23B

sub53111-16260

main53111-16260-04iEL3#,NL30..GL,LIM,TX,ZX198805-199009

LIGHT BLUE M,8D8

sub53111-16260

main53111-16260-07iEL30..TX199004-199009

sub53111-16260

main53111-16260-07iEL30,NL30..LIM,TX198805-199009

TURQUOIS M,741

sub53111-16260

main53111-16260-08iEL3#,NL30..CD,GL,LIM,TX,ZX198805-199009

WHITE,041

sub53111-16260

main53111-16260-12iEL3#,NL30..GL,LIM,TX,ZX198805-199009

RED MICA,3H4

sub53111-16260

main53111-16260-14iEL3#,NL30..GL,TX,ZX198805-199009

BLUE MICA M,8G1

sub53111-16260

9018905010

main90189-05010

9046712020

main90467-12020

9356055014

main93560-55014

4 parts on this diagram · 2 diagrams in section
