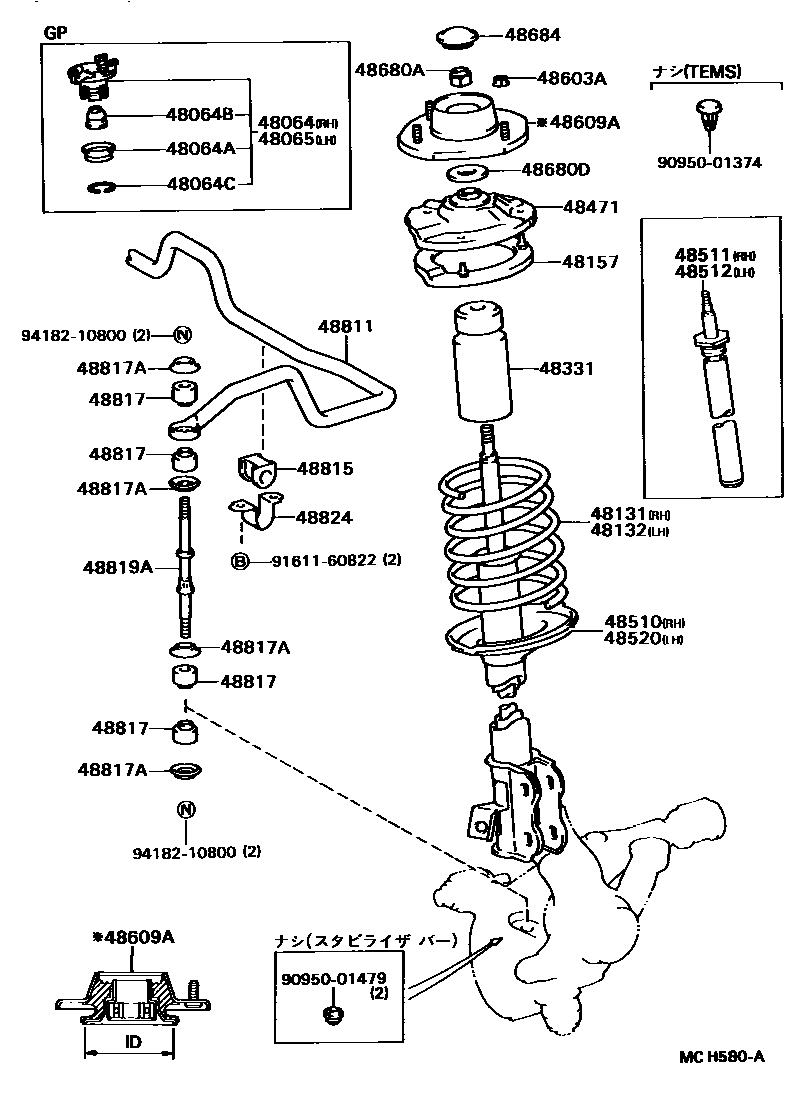

FRONT SPRING & SHOCK ABSORBER

48064COVER SUB-ASSY, FRONT SUSPENSION SUPPORT, RH

main48064-16020iEL31..TBO198805-199009

48064ASEAL, DUST(FOR FRONT SUSPENSION SUPPORT COVER)

main90304-26001iEL31..TBO198805-199009

48064BGROMMET(FOR FRONT SUSPENSION SUPPORT COVER)

main90480-13019iEL31..TBO198805-199009

48064CRING, SET(FOR FRONT SUSPENSION SUPPORT COVER)

main90522-24001iEL31..TBO198805-199009

48065COVER SUB-ASSY, FRONT SUSPENSION SUPPORT, LH

main48065-16020iEL31..TBO198805-199009

48131SPRING, FRONT COIL, RH

main48131-16361iEL3#..MTM..(CD,GL,LIM,TX,ZX)198805-199009

main48131-16381iNL30..5F198805-199009

main48131-16411iEL31..5F..TBO;EL31..4FC..(AR,SRI)198805-199009

main48131-16441iEL31..4FC..TBO198805-199009

main48131-16471iEL31..4FC..ZX198805-199009

main48131-16501iEL30..3FC198805-199009

main48131-16541iEL31..5F..(AR,SRI)198805-199009

main48131-16561iEL31..5F..TBO198805-199009

main48131-16581iEL31..4FC..TBO198805-199009

main48131-16601iNL30..4FC198805-199009

48132SPRING, FRONT COIL, LH

main48131-16361iEL3#..MTM..(CD,GL,LIM,TX,ZX)198805-199009

main48131-16381iNL30..5F198805-199009

main48131-16411iEL31..5F..TBO;EL31..4FC..(AR,SRI)198805-199009

main48131-16441iEL31..4FC..TBO198805-199009

main48131-16471iEL31..4FC..ZX198805-199009

main48131-16501iEL30..3FC198805-199009

main48131-16541iEL31..5F..(AR,SRI)198805-199009

main48131-16561iEL31..5F..TBO198805-199009

main48131-16581iEL31..4FC..TBO198805-199009

main48131-16601iNL30..4FC198805-199009

48157INSULATOR, FRONT COIL SPRING, UPPER

main48157-16030iEL3#,NL30198805-199009

48331BUMPER, FRONT SPRING, NO.1

main48331-10070iEL3#,NL30198805-199009

main48331-16050iEL31..TBO198805-199009

48471SEAT, FRONT SPRING, UPPER

main48044-10020iEL3#,NL30198805-199009

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-16171iEL31..TBO198805-199009

sub48510-16170

main48510-16281iEL3#,NL30198805-199009

sub48510-16700

48511ABSORBER, SHOCK FRONT, RH(FOR CARTRIDGE TYPE)

main48511-16010iEL3#..CD,GL,LIM,TX,ZX198805-199009

sub48511-16020

main48511-16020iNL30;EL31..AR,GP,SRI198805-199009

48512ABSORBER, SHOCK FRONT, LH(FOR CARTRIDGE TYPE)

main48511-16010iEL3#..CD,GL,LIM,TX,ZX198805-199009

sub48511-16020

main48511-16020iNL30;EL31..AR,GP,SRI198805-199009

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-16011iEL31..TBO198805-199009

sub48520-16010

main48520-16061iEL3#,NL30198805-199009

sub48520-16460

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90179-08090iNL30..5F;EL3#..CBR,EFI198805-199009

48609ASUPPORT SUB-ASSY, FRONT SUSPENSION

main48609-16060iEL31..TBO198805-198812

sub48609-16120

main48609-16090iNL30..5F;EL3#..CBR,EFI198805-199009

main48609-16100iNL30..5F;EL3#..CBR,EFI198805-199008

sub48609-16090

main48609-16110iEL31..TBO;NL30..4FC198805-199009

main48609-16120iEL31..TBO198812-199009

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main90179-14029iEL31..TBO198805-199009

main94182-11400iEL3#,NL30198805-199009

48680DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT)

main90303-22049iEL3#,NL30198805-199009

48684COVER, BEARING DUST

main48684-10010iEL3#,NL30198805-199009

48811BAR, STABILIZER, FRONT

main48811-16150iEL31..AR,GP,SRI198805-199009

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-14130iEL31..AR,GP,SRI198805-199009

48817CUSHION, FRONT STABILIZER

main48817-30020iEL31..AR,GP,SRI198805-199009

48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)

main90948-02032iEL31..AR,GP,SRI198805-199009

48819ABOLT, FRONT STABILIZER

main48819-20030iEL31..AR,GP,SRI198805-199009

48824BRACKET, STABILIZER, FRONT

main48824-20040iEL31..AR,GP,SRI198805-199009

9095001374

main90950-01374

9095001479

main90950-01479

9161160822

main91611-60822

9418210800

main94182-10800

29 parts on this diagram · 1 diagram in section
