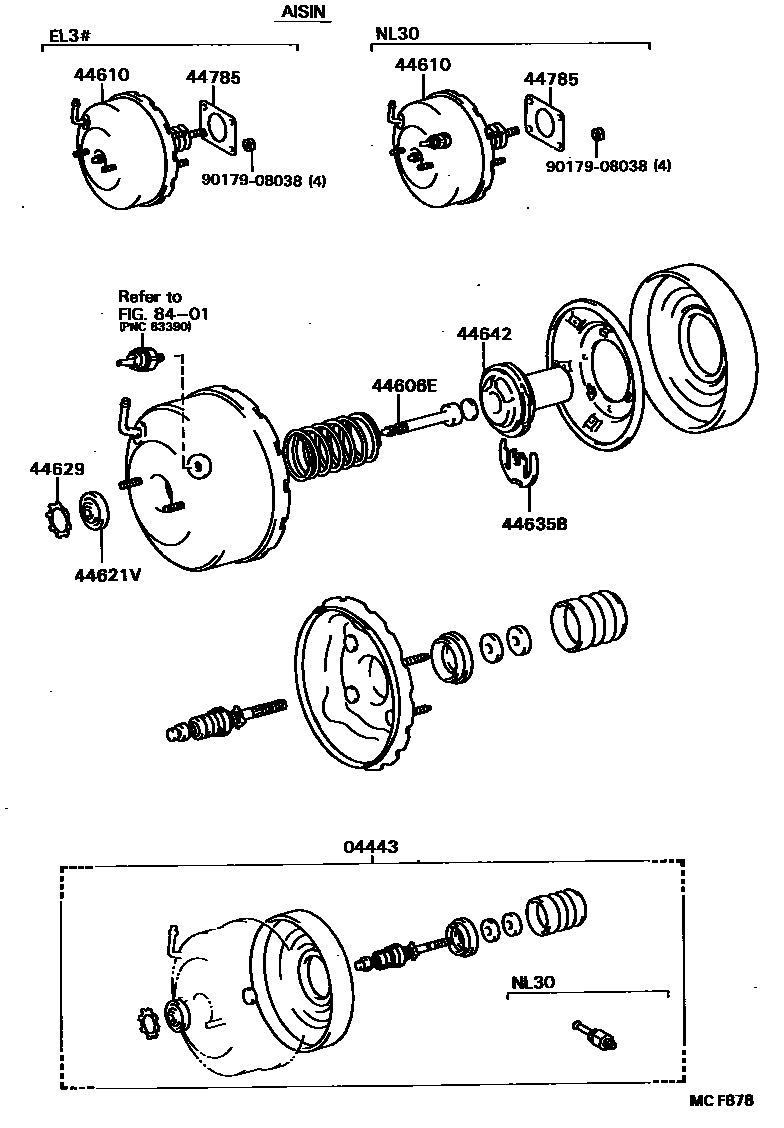

BRAKE BOOSTER & VACUUM TUBE

0001 1 0003 1 0005 1 0007 1 0008 1

04443BOOSTER KIT, BRAKE

main04443-16170iEL3#..CBR198805-198903

main04443-16180iEL3#..CBR198805-198903

main04443-16190iNL30198805-199009

main04443-16200iEL31..EFI198805-198903

main04443-16210iEL31..EFI198805-198903

main04443-16220iEL31..TBO198805-199009

main04443-16230iEL31..EFI198903-199009

44606EROD SUB-ASSY, BRAKE BOOSTER PISTON

main44606-12520iEL3#,NL30..CBR,EFI,TD198805-199009

main44606-16210iEL31..TBO198805-199009

44610BOOSTER ASSY, BRAKE

main44610-16181iNL30198805-199009

main44610-16190iEL3#..CBR,EFI198805-199009

main44610-16200iEL3#..CBR,EFI198805-199009

main44610-16210iEL31..TBO198805-199009

main44610-16220iEL31..EFI198903-199009

44621VSEAL, BOOSTER BODY

main44621-28120iEL3#,NL30..CBR,TD198805-199009

44629RING, CIRCULAR INTERNAL

main44628-12410iEL31..EFI,TBO198805-199009

main44628-28120iEL3#,NL30..CBR,TD198805-199009

44635BKEY, VALVE STOPPER

main44635-16160iEL3#,NL30..CBR,TD198805-199009

44642PISTON, BRAKE BOOSTER

main44642-16180iEL3#,NL30..CBR,EFI,TD198805-199009

main44642-16210iEL31..TBO198805-199009

main44642-16220iEL31..EFI198903-199009

44785GASKET, BRAKE BOOSTER

main44785-16010iEL3#,NL30198805-199009

8401

9017908038

main90179-08038

10 parts on this diagram · 5 diagrams in section
