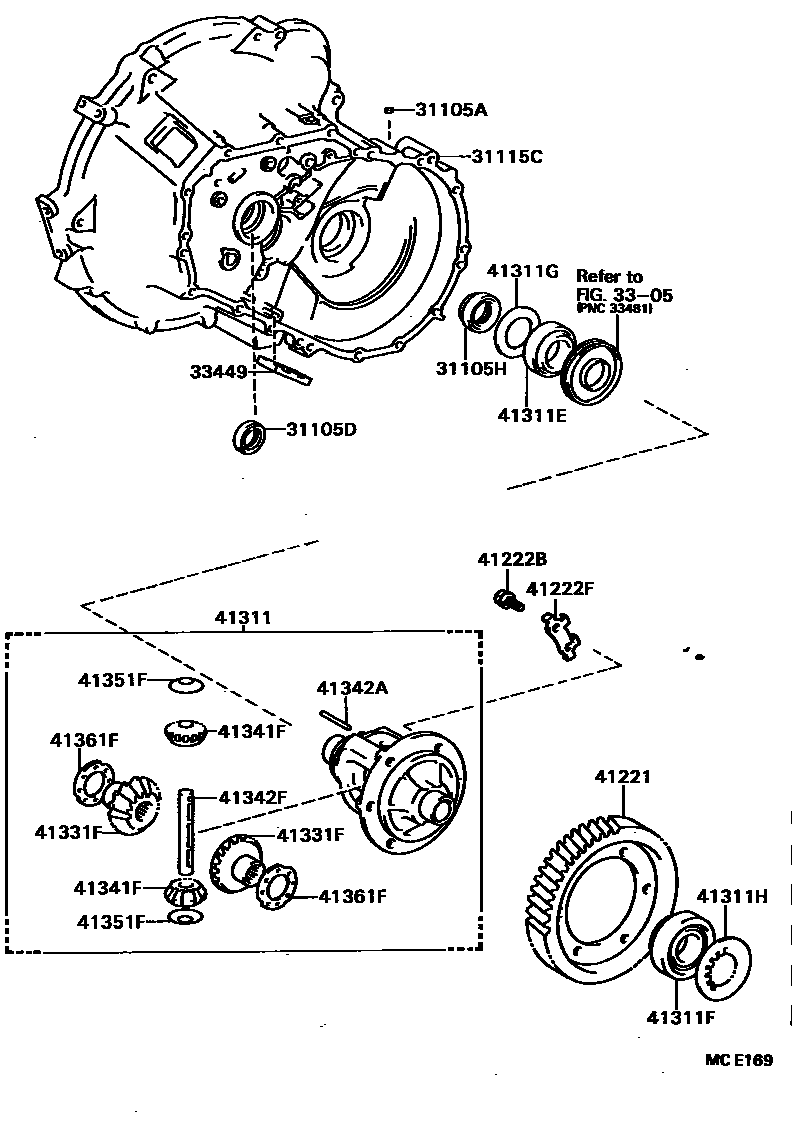

FRONT AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1 0003 1 0004 1

31105APLUG, TIGHT(FOR FRONT TRANSAXLE CASE)

main90331-08002iEL3#,NL30..MTM198805-199009

31105DSEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)

main90311-25011iNL30..5F198805-199009

sub90311-25028

main90311-25016iEL3#..MTM198805-199008

31105HSEAL, OIL, NO.2(FOR TRANSAXLE CASE)

main90311-34007iEL3#,NL30..MTM..(CBR,EFI,TD)199008-199009

sub90311-34016

31115CCASE, FRONT TRANSAXLE(MTM)

main31115-12040iNL30..5F198805-199009

sub31115-16040

sub33125-12011

main31115-12060iEL3#..MTM198805-199009

sub31115-16050

sub33125-12011

3305

33449MAGNET, TRANSMISSION

main33449-12010iEL3#,NL30..MTM198805-199005

main33449-12020iEL3#,NL30..MTM199005-199009

41221GEAR, FRONT DIFFERENTIAL RING

main41221-10181iNL30..5F198805-199009

sub41221-52290

main41221-10191iEL30..3DS..4F..TX198805-199009

main41221-10201iEL3#..MTM..CBR198805-199009

sub41221-52300

main41221-10221iEL31..5F..EFI198805-199009

sub41221-52320

main41221-12160iEL3#..(3FC,5F)..(GL,GP,LIM,TX)198805-199009

sub41221-12310

main41221-12190iEL31..4FC..TBO198805-199009

main41221-16090iEL31,NL30..4FC..(CBR,TD)198805-199009

main41221-20230iEL31..4FC..EFI198805-199009

41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)

main90101-11353×8iEL3#,NL30..ATM198805-199009

main90105-12100×6iEL3#,NL30..MTM..(CBR,EFI,TD)198805-199009

41222FPLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-12040×4iEL31..5F..TBO198805-199009

main41222-12050×4iEL3#,NL30..ATM198805-199009

41311CASE, FRONT DIFFERENTIAL

main41301-10060iEL3#,NL30..MTM..(CBR,EFI,TD)198805-199009

sub41301-10061

main41301-12040iEL31..5F..TBO198805-199009

sub41301-12041

sub90105-11040

main41301-12050iEL30..3FC198805-198902

main41301-12051iEL30..3FC198902-199009

main41301-17020iEL31,NL30..4FC198805-198902

main41301-17021iEL31,NL30..4FC198902-199009

sub41301-20150

sub90366-42001

41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)

main90366-38004iEL3#,NL30..MTM198805-199009

main90368-38006iEL3#,NL30..ATM198805-199009

sub90368-38002

41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)

main90368-38006iEL30..3FC198805-199009

sub90368-38002

main90368-38010iEL3#,NL30..4F,4FC,5F198805-199009

41311GWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT)

main90201-41002iEL30..3FC198805-199009

main90201-41003iEL30..3FC198805-199009

main90201-41004iEL30..3FC198805-199009

main90201-41005iEL30..3FC198805-199009

main90201-41006iEL30..3FC198805-199009

main90201-41007iEL30..3FC198805-199009

main90201-41008iEL30..3FC198805-199009

main90201-41009iEL30..3FC198805-199009

main90201-41010iEL3#,NL30..ATM198805-199009

main90201-41011iEL30..3FC198805-199009

main90201-41012iEL30..3FC198805-199009

main90201-41013iEL30..3FC198805-199009

main90201-41014iEL30..3FC198805-199009

main90201-41015iEL30..3FC198805-199009

main90201-41016iEL30..3FC198805-199009

main90201-41017iEL30..3FC198805-199009

main90201-41018iEL30..3FC198805-199009

main90201-41019iEL30..3FC198805-199009

main90201-41020iEL30..3FC198805-199009

main90201-41021iEL30..3FC198805-199009

main90201-41022iEL30..3FC198805-199009

main90201-41023iEL30..3FC198805-199009

main90201-41045iEL3#,NL30..MTM198805-199009

41311HWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR)

main90201-41012iEL30..3FC198805-199009

main90201-41024iEL31,NL30..4FC198805-199009

main90201-41025iEL31,NL30..4FC198805-199009

main90201-41026iEL31,NL30..4FC198805-199009

main90201-41027iEL31,NL30..4FC198805-199009

main90201-41028iEL31,NL30..4FC198805-199009

main90201-41029iEL31,NL30..4FC198805-199009

main90201-41030iEL31,NL30..4FC198805-199009

main90201-41031iEL31,NL30..4FC198805-199009

main90201-41032iEL31,NL30..4FC198805-199009

main90201-41033iEL31,NL30..4FC198805-199009

main90201-41034iEL31,NL30..4FC198805-199009

main90201-41035iEL31,NL30..4FC198805-199009

main90201-41036iEL31,NL30..4FC198805-199009

main90201-41039iEL31,NL30..4FC198805-199009

main90201-41040iEL31,NL30..4FC198805-199009

main90201-41041iEL31,NL30..4FC198805-199009

main90201-41042iEL31,NL30..4FC198805-199009

main90201-41043iEL31,NL30..4FC198805-199009

main90201-41044iEL31,NL30..4FC198805-199009

main90201-41046iEL3#,NL30..MTM198805-199009

sub90564-41014

main90201-41047iEL3#,NL30..MTM198805-199009

sub90564-41015

main90201-41048iEL3#,NL30..MTM198805-199009

sub90564-41016

main90201-41049iEL3#,NL30..MTM198805-199009

sub90564-41017

main90201-41050iEL3#,NL30..MTM198805-199009

sub90564-41018

main90201-41051iEL3#,NL30..MTM198805-199009

sub90564-41019

main90201-41052iEL3#,NL30..MTM198805-199009

sub90564-41020

main90201-41053iEL3#,NL30..MTM198805-199009

sub90564-41021

main90201-41054iEL3#,NL30..MTM198805-199009

sub90564-41022

main90201-41055iEL3#,NL30..MTM198805-199009

sub90564-41023

main90201-41056iEL3#,NL30..MTM198805-199009

sub90564-41024

main90201-41057iEL3#,NL30..MTM198805-199009

sub90564-41025

main90201-41058iEL3#,NL30..MTM198805-199009

sub90564-41026

main90201-41059iEL3#,NL30..MTM198805-199009

sub90564-41027

main90201-41060iEL3#,NL30..MTM198805-199009

sub90564-41028

main90201-41061iEL3#,NL30..MTM198805-199009

sub90564-41029

main90201-41062iEL3#,NL30..MTM198805-199009

sub90564-41030

main90201-41063iEL3#,NL30..MTM198805-199009

sub90564-41031

main90201-41064iEL3#,NL30..MTM198805-199009

sub90564-41032

41331FGEAR, FRONT DIFFERENTIAL SIDE

main41331-10042×2iEL3#,NL30..MTM..(CBR,EFI,TD)198805-199009

sub41331-44011

sub41331-48060

main41331-12011×2iEL3#,NL30..ATM198805-199009

41341FPINION, FRONT DIFFERENTIAL

main41341-10030×2iEL3#,NL30..MTM..(CBR,EFI,TD)198805-199009

sub41341-44011

sub41341-48050

main41341-12030×2iEL31..5F..TBO198805-199009

41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)

main90250-04053iEL3#,NL30..MTM..(CBR,EFI,TD)198805-199009

main90250-06058iEL3#,NL30..ATM198805-199009

41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1

main41342-10040iEL3#,NL30..MTM..(CBR,EFI,TD)198805-199009

sub41342-10041

main41342-12020iEL3#,NL30..ATM198805-198902

sub41342-12140

main41342-12110iEL3#,NL30..ATM198902-198903

41351FWASHER, FRONT DIFFERENTIAL PINION THRUST

main41351-10030×2iEL3#,NL30..MTM..(CBR,EFI,TD)198805-199009

main41351-12020×2iEL31..5F..TBO198805-199009

41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-10070×2iEL3#,NL30..MTM..(CBR,EFI,TD)198805-199009

main41361-10080×2iEL3#,NL30..MTM..(CBR,EFI,TD)198805-199009

main41361-10090×2iEL3#,NL30..MTM..(CBR,EFI,TD)198805-199009

main41361-10100×2iEL3#,NL30..MTM..(CBR,EFI,TD)198805-199009

main41361-10110×2iEL3#,NL30..MTM..(CBR,EFI,TD)198805-199009

main41361-10120×2iEL3#,NL30..MTM..(CBR,EFI,TD)198805-199009

main41361-17010×2iEL31,NL30..4FC198805-199009

main41361-17020×2iEL31,NL30..4FC198805-199009

main41361-17030×2iEL31,NL30..4FC198805-199009

main41361-17040×2iEL31,NL30..4FC198805-199009

main41361-17050×2iEL31,NL30..4FC198805-199009

main41361-17060×2iEL31,NL30..4FC198805-199009

main41361-22020×2iEL3#..(3FC,5F)..(GL,GP,LIM,TX)198805-199009

main41361-22030×2iEL3#..(3FC,5F)..(GL,GP,LIM,TX)198805-199009

main41361-22040×2iEL3#..(3FC,5F)..(GL,GP,LIM,TX)198805-199009

main41361-22140×2iEL3#..(3FC,5F)..(GL,GP,LIM,TX)198805-199009

main41361-22150×2iEL3#..(3FC,5F)..(GL,GP,LIM,TX)198805-199009

main41361-22160×2iEL3#..(3FC,5F)..(GL,GP,LIM,TX)198805-199009

20 parts on this diagram · 4 diagrams in section
