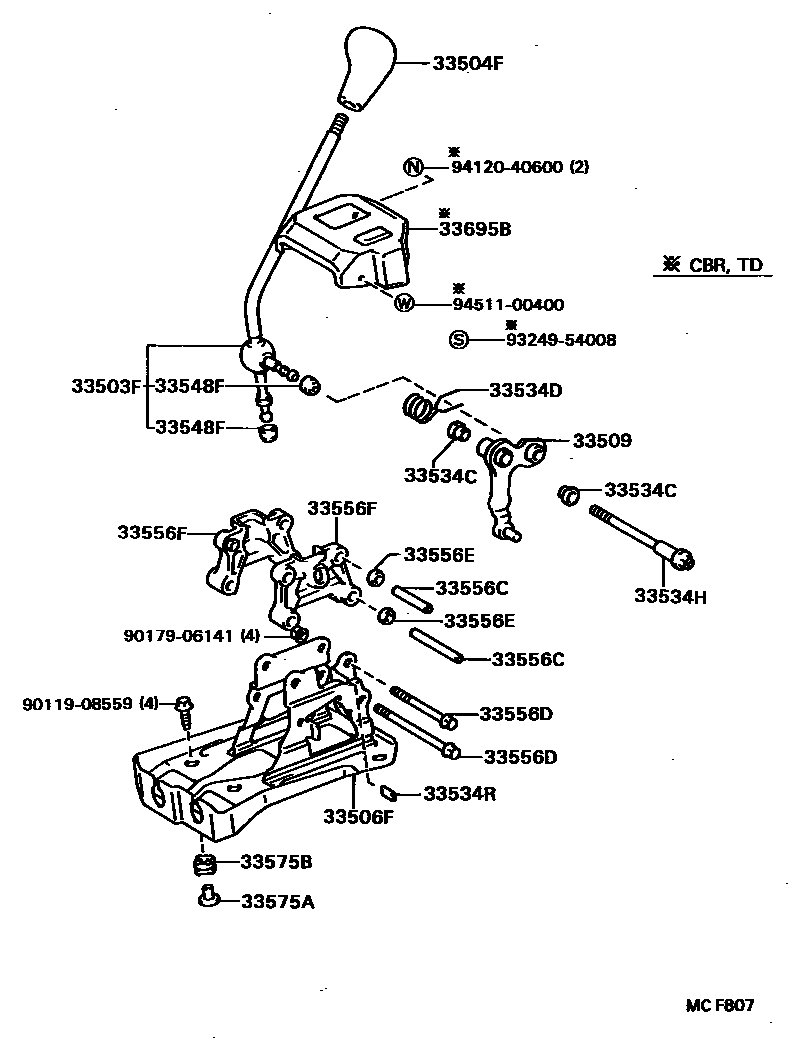

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1

33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)

main33503-16151iEL31..5F..TBO198805-199009

main33503-16171iEL3#,NL30..MTM..(CBR,EFI,TD)198805-199009

main33503-16200iEL30..3FC198805-199009

main33503-16211iEL31,NL30..4FC198805-199009

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-10050-04iEL31..5F..(AR,GP,SRI)198805-199009

BLUE,TRIM8#

main33504-10050-11iEL31..5F..(AR,GP,SRI)198805-199009

NEW BLACK,TRIM2#

main33504-14040-11iEL30..4F..(GL,LIM,TX)198805-199009

NEW BLACK,TRIM2#

main33504-14040-24iEL30..4F198805-199009

BLUE,TRIM8#

main33504-14050-11iNL30..5F..(GL,TX)198805-199009

NEW BLACK,TRIM2#

sub33504-14070

main33504-14050-34iNL30..5F..(GL,TX)198805-199009

BLUE,TRIM8#

sub33504-14070

main33504-24010-11iEL31,NL30..5F..ZX198805-199009

NEW BLACK,TRIM2#

main33504-24010-34iEL31,NL30..5F..ZX198805-199009

DEEP BLUE,TRIM8#

main33542-12110-11iEL30..3FC198805-199009

NEW BLACK,TRIM2#

main33542-12110-24iEL30..3FC198805-199009

BLUE,TRIM8#

main33542-20080-01iEL31,NL30..4FC198805-199009

BLACK,TRIM2#

sub33542-20081

main33542-20080-14iEL31,NL30..4FC198805-199009

BLUE,TRIM8#

sub33542-20081

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33506-16021iEL3#,NL30..MTM198805-199009

33509CRANK SUB-ASSY, SELECTING BELL, NO.1

main33509-20020iEL3#,NL30..MTM198805-199009

33534CBUSH (FOR SELECTING BELLCRANK NO.1)

main90386-12013×2iEL3#,NL30..MTM198805-199009

33534DSPRING, TORSION (FOR SELECTING BELLCRANK NO.1)

main90508-20084iEL3#,NL30..MTM198805-199009

33534HBOLT (FOR SELECTING BELLCRANK NO.1)

main90109-06146iEL3#,NL30..MTM198805-199009

33534RCUSHION (FOR SELECTING BELLCRANK NO.1)

main90540-04005iEL3#,NL30..MTM198805-199009

main90540-06030iEL3#,NL30..ATM198805-199009

33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)

main33548-12021×2iEL3#,NL30..MTM198805-199009

33556CCOLLAR (FOR TRANSMISSION SHIFT LEVER BALL SEAT)

main90387-06044×4iEL3#,NL30..MTM198805-199009

33556DBOLT (FOR TRANSMISSION SHIFT LEVER BALL SEAT)

main90105-06116×3iEL3#,NL30..MTM198805-199009

33556ECUSHION (FOR TRANSMISSION SHIFT LEVER BALL SEAT)

main90540-08017×4iEL3#,NL30..MTM198805-199009

33556FSEAT, TRANSMISSION SHIFT LEVER BALL

main33556-20030×2iEL3#,NL30..MTM198805-199009

33575ABUSH, NO.1 (FOR CONTROL SHIFT LEVER RETAINER)

main90389-08031×4iEL3#,NL30..MTM198805-199009

33575BBUSH, NO.2 (FOR CONTROL SHIFT LEVER RETAINER)

main90389-10018×4iEL3#,NL30..MTM198805-199009

33695BCOVER, SELECTING SPRING (FOR FLOOR SHIFT)

main33695-16021iEL3#,NL30..MTM..(CBR,EFI,TD)198805-199009

9011908559

main90119-08559

9017906141

main90179-06141

9324954008

main93249-54008

9412040600

main94120-40600

9451100400

main94511-00400

21 parts on this diagram · 5 diagrams in section
