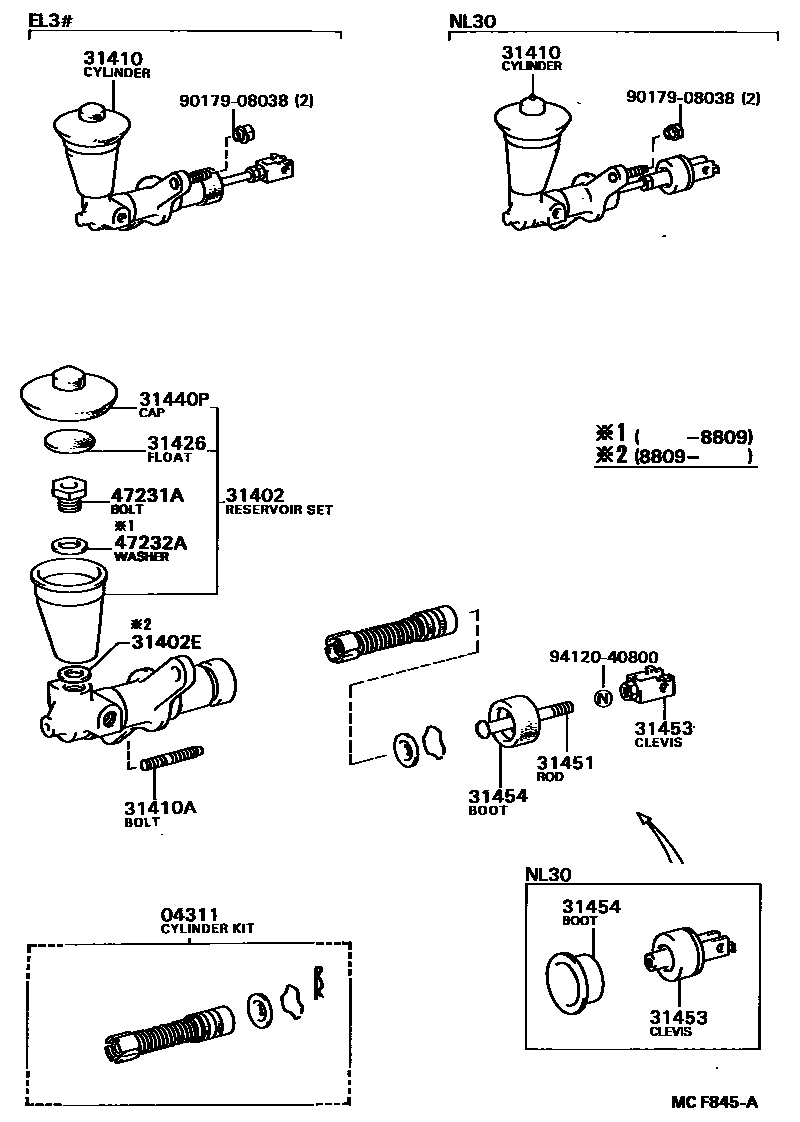

CLUTCH MASTER CYLINDER

04311CYLINDER KIT, CLUTCH MASTER

main04311-22050iEL3#,NL30..MTM198805-199009

main04311-32030iEL31..5F..TBO198811-199009

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-30060iEL3#,NL30..MTM198805-198809

sub31402-30061

sub47231-20010

main31402-30061iEL3#,NL30..MTM198809-199009

31402ERING(FOR CLUTCH MASTER CYLINDER RESERVOIR)

main90562-18151iEL3#,NL30..MTM198809-199009

31410CYLINDER ASSY, CLUTCH MASTER

main31410-16012iEL3#..MTM198805-198808

sub31410-16013

main31410-16013iEL3#..MTM198808-199009

main31410-16022iNL30..5F198805-198808

sub31410-16023

main31410-16023iNL30..5F198808-199009

main31410-16030iEL31..5F..TBO198811-199009

sub31410-20421

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

main90116-08146iEL3#,NL30..MTM198805-199009

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-30011iEL3#,NL30..MTM198805-199009

31440PCAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main47230-20040iEL3#,NL30..MTM198805-199009

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-22060iEL3#..MTM198805-199009

main31451-22070iNL30..5F198805-199009

main31451-32010iEL31..5F..TBO198811-199009

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-16011iNL30..5F198805-198904

sub31404-16012

main31404-16012iNL30..5F198904-199009

sub31404-22020

main31453-10020iEL3#..MTM198805-199009

31454BOOT, CLUTCH MASTER CYLINDER

main31454-14010iEL3#..MTM198805-199009

main31454-24010iNL30..5F198805-199009

47231ABOLT, CLUTCH MASTER CYLINDER RESERVOIR SET

main47231-20010iEL3#,NL30..MTM198809-199009

main47231-30010iEL3#,NL30..MTM198805-198809

47232AWASHER, CLUTCH MASTER CYLINDER RESERVOIR SET BOLT

main47232-30010iEL3#,NL30..MTM198805-198809

9017908038

main90179-08038

9412040800

main94120-40800

14 parts on this diagram · 1 diagram in section
