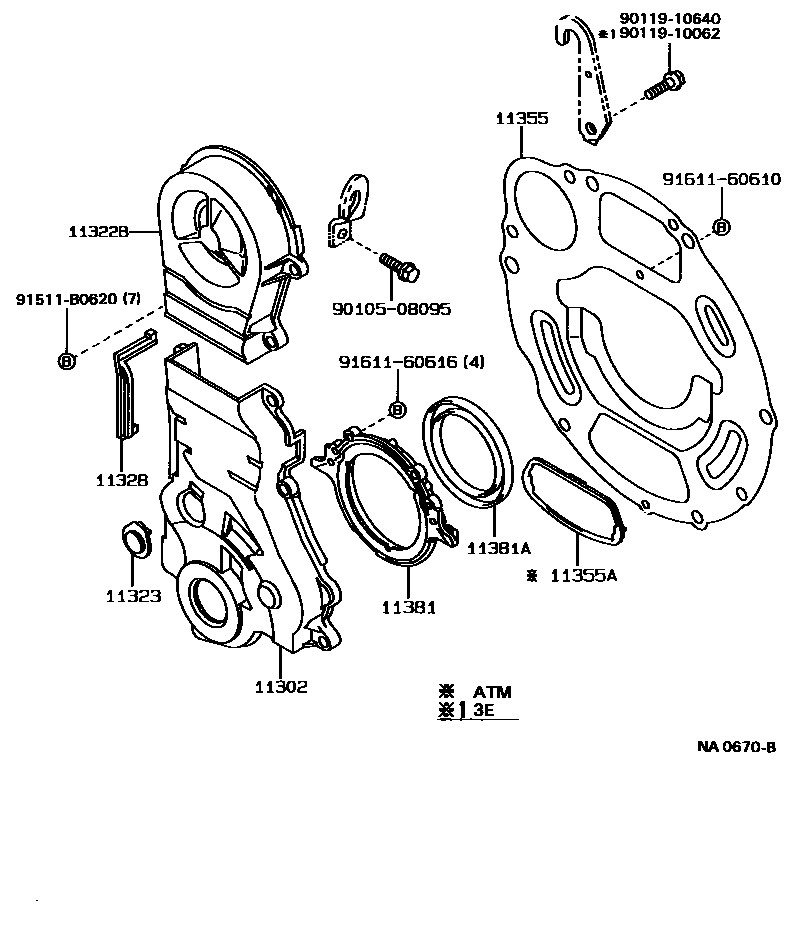

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-11031i3E#..EL31198805-199009

main11302-11042i2E..EL30198805-199009

sub11302-11043

sub90387-06015

main11302-55011i1NT..NL30198805-199009

11322BCOVER, TIMING BELT, NO.2

main11303-10022i2E..EL30198805-199009

sub11303-10023

sub90387-06015

main11303-11010i3E#..EL31198805-199009

11323COVER, TIMING GEAR, NO.3

main11323-10011i2E,3E#..EL3#198805-199009

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-11020i3E#..EL31198805-199009

main11328-11031i2E..EL30198805-199009

main11328-55010i1NT..NL30198805-199009

11355PLATE, REAR END

main11355-10011i2E,3E#..EL3#..MTM198805-199009

sub11355-10012

main11355-11011i2E,3E#..EL3#..ATM198805-199009

sub11355-11012

main11355-55012i1NT..NL30..5F198805-199009

main11355-55020i1NT..NL30..4FC198805-199009

11355APLUG, HOLE(FOR REAR END PLATE)

main90950-01548i1NT..NL30..4FC198805-199009

11381RETAINER, ENGINE REAR OIL SEAL

main11381-10020i2E,3E#..EL3#198805-199009

main11381-55010i1NT..NL30198805-199009

sub11381-55011

11381ASEAL, ENGINE REAR OIL

main90311-75004i2E..EL30198805-199009

sub90311-75006

main90311-80005i1NT..NL30198805-199008

main90311-80007i3E#..EL31198805-199009

sub90311-80012

main90311-80009i1NT..NL30199008-199009

sub90311-80014

9010508095

main90105-08095

9011910062

main90119-10062

9011910640

main90119-10640

91511B0620

main91511-B0620

9161160610

main91611-60610

9161160616

main91611-60616

14 parts on this diagram · 2 diagrams in section
