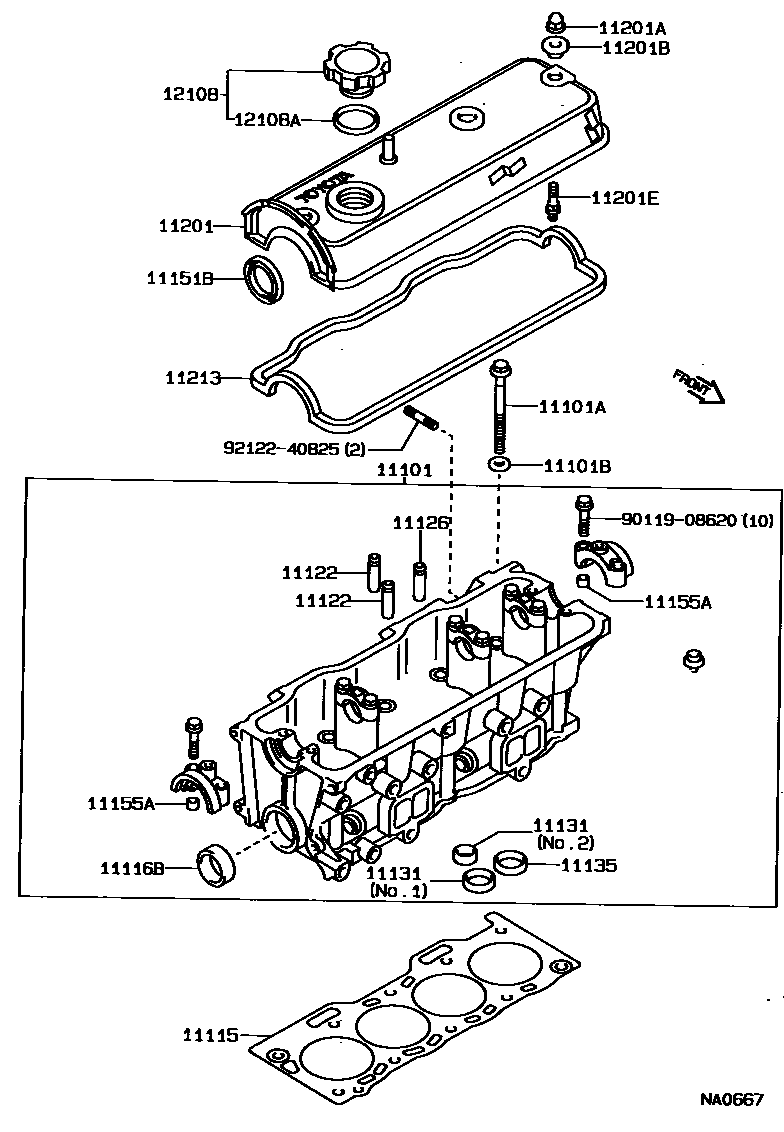

CYLINDER HEAD

0001 1 0002 1 0003 1

11101HEAD SUB-ASSY, CYLINDER

main11101-19146i2E..EL30..3DS..4F..TX198805-199009

main11101-19156i2E..EL30198805-199009

main11101-19185i3ETE..EL31198805-199009

main11101-19195i3E..EL31198805-199009

sub11101-19196

sub12329-11020

sub17771-11080

sub17771-11120

sub78184-16050

main11101-19295i3EE..EL31198805-199009

main11101-55010i1NT..NL30198805-199003

sub11101-55040

main11101-55040i1NT..NL30199003-199009

11101ABOLT(FOR CYLINDER HEAD SET)

main90105-09002i2E,3E#..EL3#198805-199009

main90105-11022i1NT..NL30198805-199009

11101BWASHER, PLATE(FOR CYLINDER HEAD SET)

main90201-09015i2E,3E#..EL3#198805-199009

main90201-11016i1NT..NL30198805-199009

11115GASKET, CYLINDER HEAD

main11115-11010i2E,3E,3EE..EL3#198805-199009

main11115-11030i3ETE..EL31198805-199009

main11115-55020-01i1NT..NL30198805-199009

MARK 1,MARK 1

sub11115-55H00

main11115-55020-02i1NT..NL30198805-199009

MARK 2,MARK 2

sub11115-55H00

main11115-55020-03i1NT..NL30198805-199009

MARK 3,MARK 3

sub11115-55H00

11116BPLUG, TIGHT, NO.2

main96411-12800i1NT..NL30198805-199009

sub96411-42800

main96411-44000i2E,3E#..EL3#198805-199009

11122BUSH, INTAKE VALVE GUIDE

main11122-10040i2E,3E#..EL3#198805-199009

main11122-16020i1NT..NL30198805-199009

main11123-10040i2E,3E#..EL3#198805-199009

main11123-16020i1NT..NL30198805-199009

11126BUSH, EXHAUST VALVE GUIDE

main11122-10040i2E,3E#..EL3#198805-199009

main11122-16020i1NT..NL30198805-199009

main11123-10040i2E,3E#..EL3#198805-199009

main11123-16020i1NT..NL30198805-199009

11131SEAT, INTAKE VALVE

main11131-10020i2E..EL30198805-199009

sub11131-11010

main11131-11010i3E#..EL31198805-199009

main11132-10020i2E..EL30198805-199009

main11132-11010i3E#..EL31198805-199009

main11137-10010i2E..EL30198805-199009

main11137-11020i3E#..EL31198805-199009

main11138-10010i2E..EL30198805-199009

main11138-11020i3E#..EL31198805-199009

11135SEAT, EXHAUST VALVE

main11135-10020i2E..EL30198805-199009

sub11135-11010

main11135-11010i3E#..EL31198805-199009

main11136-10020i2E..EL30198805-199009

sub11136-11010

main11136-11010i3E#..EL31198805-199009

11151BSEAL, OIL(FOR CAMSHAFT SETTING)

main90311-35013i2E,3E#..EL3#199002-199009

sub90311-35022

main90311-35017i2E,3E#..EL3#198805-199002

main90311-38025i1NT..NL30198805-199008

main90311-38041i1NT..NL30199008-199009

11155APIN, RING W/HEAD

main90253-11021i2E,3E#..EL3#198805-199009

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-10010i2E,3E,3EE..EL3#198805-199009

main11201-11010i3ETE..EL31198805-199009

main11201-55010i1NT..NL30198805-199009

11201ANUT, CAP(FOR CYLINDER HEAD COVER)

main90176-06012i3ETE..EL31198805-199009

main90176-08007i2E,3E,3EE..EL3#198805-199009

11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)

main90210-06008i3ETE..EL31198805-199009

sub90210-06013

main90210-09001i2E,3E,3EE..EL3#198805-199009

sub90210-09019

11201EBOLT, STUD(FOR CYLINDER HEAD COVER SET)

main90109-08139i3ETE..EL31198805-199009

main90116-08190i2E,3E,3EE..EL3#198805-199009

11213GASKET, CYLINDER HEAD COVER

main11213-10010i2E,3E,3EE..EL3#198805-199009

sub11213-10011

main11213-11020i3ETE..EL31198805-199009

main11213-55010i1NT..NL30198805-199009

sub11213-55011

12108CAP SUB-ASSY, OIL FILLER

main12180-11020i2E,3E,3EE..EL3#198805-199009

sub12180-11021

main12180-13030i3ETE..EL31198805-199009

sub12180-55010

main12180-55010i1NT..NL30198805-199009

12108AGASKET(FOR OIL FILLER CAP)

main12195-71020i2E,3E,3EE..EL3#198805-199009

main90430-37004i1NT..NL30198805-199009

main90430-37140i3ETE..EL31198805-199009

9011908620

main90119-08620

9212240825

main92122-40825

20 parts on this diagram · 3 diagrams in section
