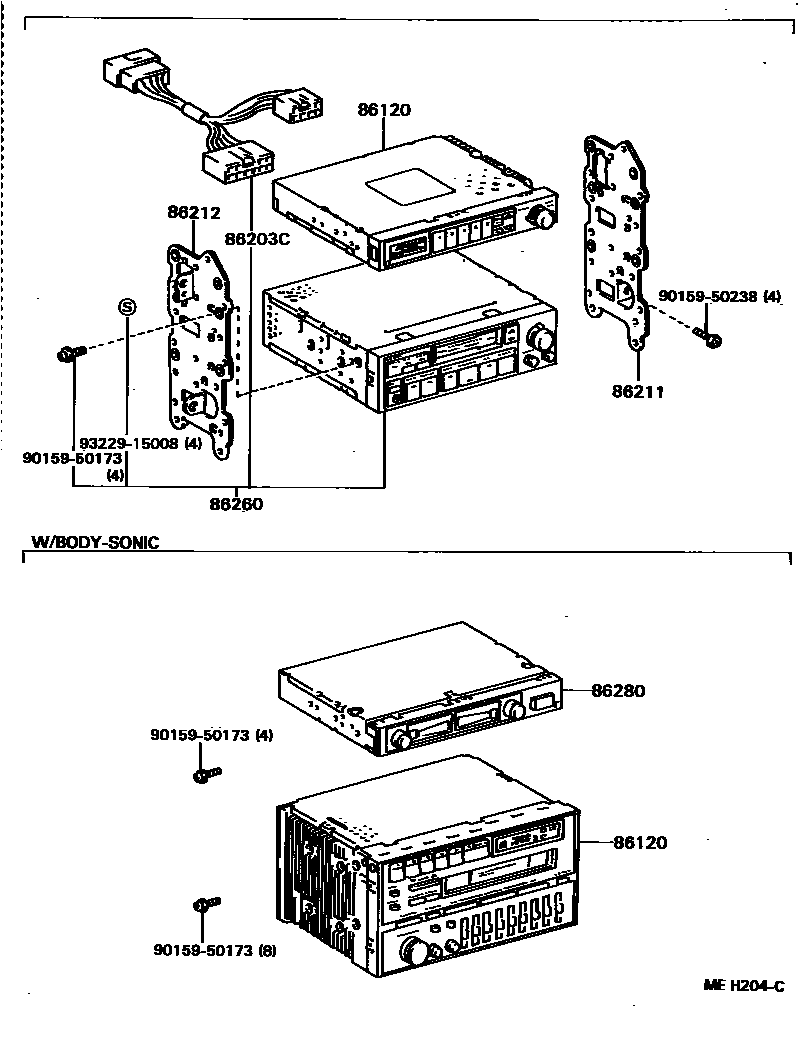

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1

86120RECEIVER ASSY, RADIO

main86120-14670iEL31..ZX198605-198805

W/DISC-PLAYER

main86120-16230iEL3#,NL30..CD,GL,LIM,TX,ZX198605-198805

main86120-16290iEL3#,NL30..CD,GL,LIM,TX,ZX198605-198805

sub86120-16291

main86120-16310iEL31..GP,SR198605-198805

AM/FM

main86120-16340iEL31..GP,SR198605-198805

W/BODY-SONIC

main86120-16400iEL31..GP,SR198605-198805

AM

main86120-16540iEL31..GP,SR198605-198805

86203CWIRE, TAPE PLAYER

main86203-16110iEL3#,NL30198610-198805

HIGH POWER

86211BRACKET, RADIO, NO.1

main86211-16180iEL3#,NL30198605-198805

86212BRACKET, RADIO, NO.2

main86212-16180iEL3#,NL30198605-198805

86260TAPE PLAYER ASSY

main86260-19105iEL3#,NL30198605-198805

TEN,AUTO REVERSE

main86260-19115iEL3#,NL30198605-198805

TEN,AUTO REVERSE W/FM

main86260-19125iEL3#,NL30198605-198805

TEN,HIGH POWER

main86260-19135iEL3#,NL30198605-198805

TEN,HIGH POWER,W/EQUALIZER

main86260-19145iEL3#,NL30198605-198805

MATSUSHITA,AUTO REVERSE

main86260-19155iEL3#,NL30198605-198805

MATSUSHITA,HIGH POWER

main86260-19165iEL3#,NL30198605-198805

MATSUSHITA,HIGH W/EQUALIZER

main86260-19175iEL3#,NL30198605-198805

MATSUSHITA,AUTO REVERSE,W/FM

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-16040iEL31..GP,SR198605-198805

W/BODY-SONIC

main86280-16050iEL31198605-198805

W/DISC-PLAYER

9015950173

main90159-50173

9015950238

main90159-50238

9322915008

main93229-15008

9 parts on this diagram · 2 diagrams in section
