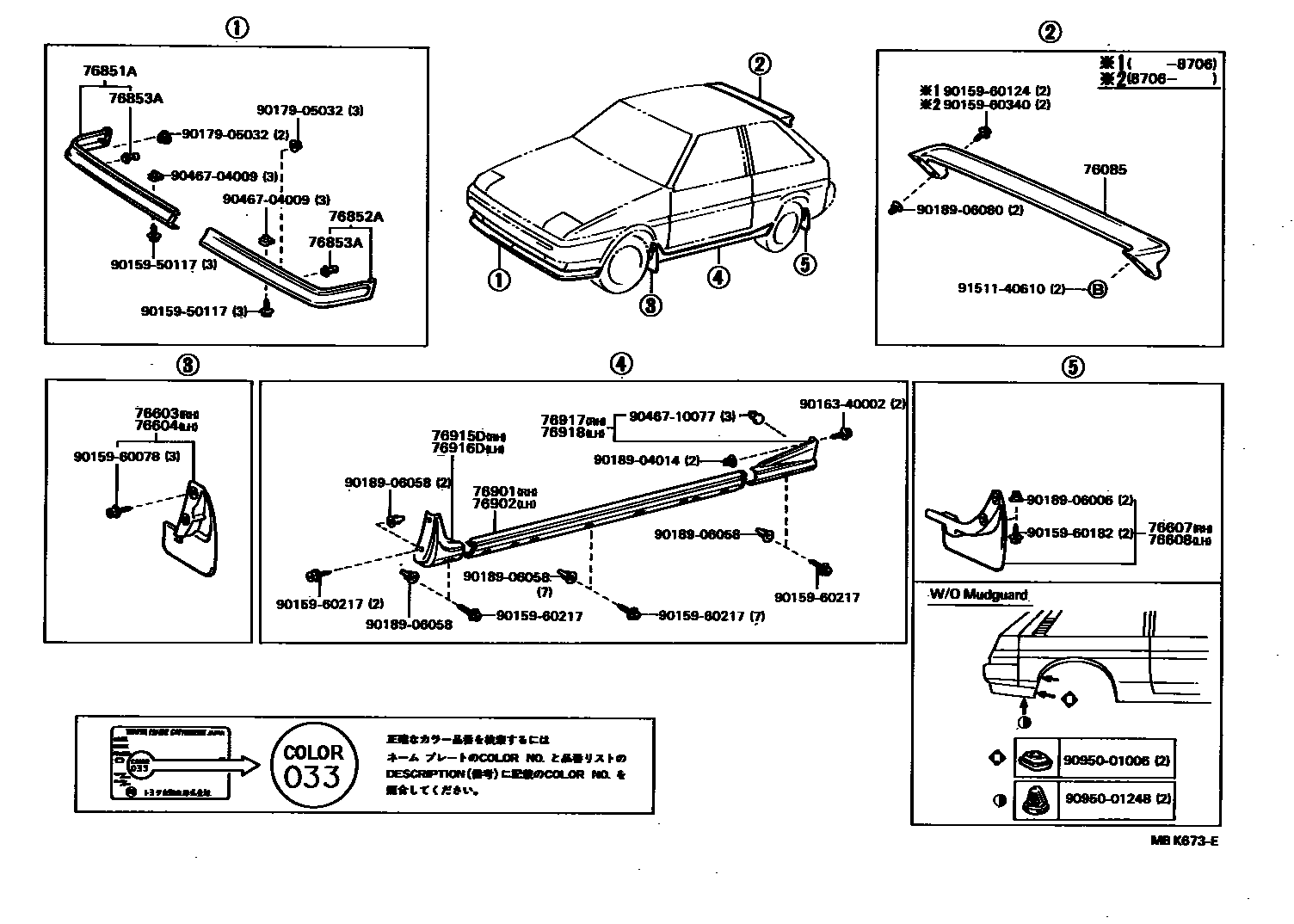

MUDGUARD & SPOILER
76085SPOILER SUB-ASSY, REAR
76603MUDGUARD SUB-ASSY, FRONT FENDER, RH
BLACK
*ASL,RED(3E6)
GRAY-M(22B)
76604MUDGUARD SUB-ASSY, FRONT FENDER, LH
BLACK
*ASL,RED(3E6)
GRAY-M(22B)
76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
BLACK
BLUE-M(8D6,24B)
GRAY-M(22B)
SILVER-M(23B)
76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
BLACK
BLUE-M(8D6)
GRAY-M(22B)
76851ACOVER, FRONT SPOILER, RH
RED,RED,3E6
GRAY-M,LIGHT GRAY METALLIC,22B
BLUE-M,GRAYISH BLUE M,8D6 ,24B
WHITE,WHITE,041
76852ACOVER, FRONT SPOILER, LH
RED,RED,3E6
GRAY-M,LIGHT GRAY METALLIC,22B
BLUE-M,GRAYISH BLUE M,8D6 ,24B
WHITE,WHITE,041
76853ARETAINER, FRONT SPOILER, UPPER NO.1
76901MUDGUARD SUB-ASSY, SIDE, RH
RED,RED,3E6
GRAY-M,LIGHT GRAY METALLIC,22B
BLUE-M,GRAYISH BLUE M,8D6 ,24B
WHITE,WHITE,041
76902MUDGUARD SUB-ASSY, SIDE, LH
RED,RED,3E6
GRAY-M,LIGHT GRAY METALLIC,22B
BLUE-M,GRAYISH BLUE M,8D6 ,24B
WHITE,WHITE,041
76915DMUDGUARD, SIDE, FRONT RH
RED,RED,3E6
GRAY-M,LIGHT GRAY METALLIC,22B
BLUE-M,GRAYISH BLUE M,8D6 ,24B
WHITE,WHITE,041
76916DMUDGUARD, SIDE, FRONT LH
RED,RED,3E6
GRAY-M,LIGHT GRAY METALLIC,22B
BLUE-M,GRAYISH BLUE M,8D6 ,24B
WHITE,WHITE,041
76917MUDGUARD, SIDE, REAR RH
RED,RED,3E6
GRAY-M,LIGHT GRAY METALLIC,22B
BLUE-M,GRAYISH BLUE M,8D6 ,24B
WHITE,WHITE,041
76918MUDGUARD, SIDE, REAR LH
RED,RED,3E6
GRAY-M,LIGHT GRAY METALLIC,22B
BLUE-M,GRAYISH BLUE M,8D6 ,24B
WHITE,WHITE,041
9015950117
main90159-50117
9015960078
main90159-60078
9015960124
main90159-60124
9015960182
main90159-60182
9015960217
main90159-60217
9015960340
main90159-60340
9016340002
main90163-40002
9017905032
main90179-05032
9018904014
main90189-04014
9018906006
main90189-06006
9018906058
main90189-06058
9018906080
main90189-06080
9046704009
main90467-04009
9046710077
main90467-10077
9095001006
main90950-01006
9095001248
main90950-01248
9151140610
main91511-40610
31 parts on this diagram · 1 diagram in section
