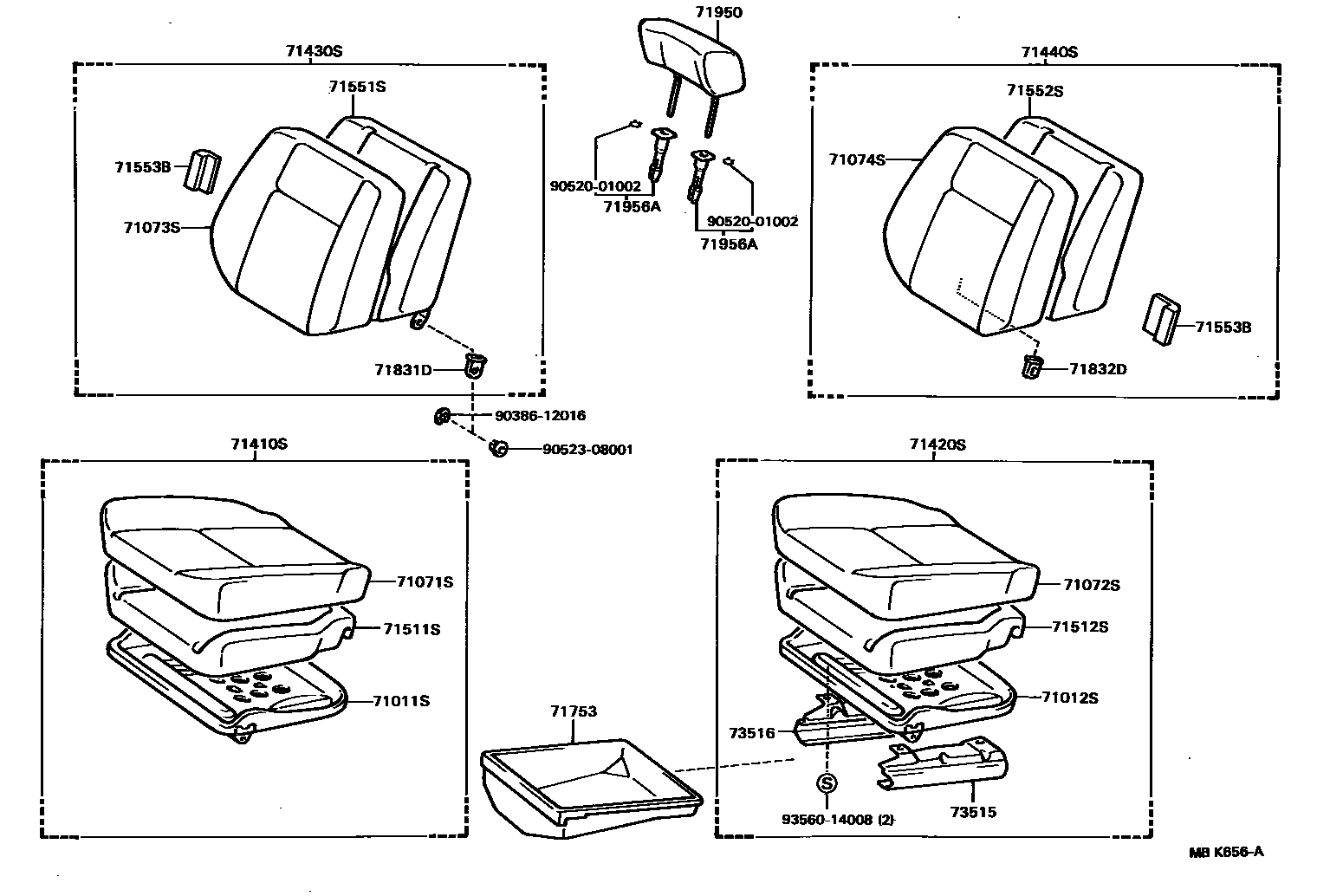

FRONT SEAT & SEAT TRACK

0001 1 0002 1 0003 1 0004 1

71011SFRAME SUB-ASSY, FRONT SEAT CUSHION, RH

main71011-12190iEL30,NL30..CD,GL,TX198605-198805

main71011-16030iEL31..GP,SR198605-198805

main71011-16040iEL3#..LIM,ZX198605-198805

71012SFRAME SUB-ASSY, FRONT SEAT CUSHION, LH

main71011-12190iEL3#,NL30..CD,GL,LIM,TX,ZX198605-198805

main71011-16030iEL31..GP,SR198605-198805

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-16420-01iEL31..SR198605-198805

FB,BLACK,BLACK,TRIM2#

main71071-16420-04iEL31..SR198605-198805

FB,BLUE,BLUE,TRIM8#

main71071-16560-03iEL30,NL30..TX198605-198805

FB,GRAY,GRAY,TRIM2#

main71071-16560-04iEL30,NL30..TX198605-198805

FB,BLUE,BLUE,TRIM8#

main71071-16560-05iEL30,NL30..TX198605-198805

FB,BEIGE,BEIGE,TRIM4#

main71071-16570-03iEL30,NL30..GL198605-198805

FB,GRAY,GRAY,TRIM2#

main71071-16570-04iEL30,NL30..GL198605-198805

FB,BLUE,BLUE,TRIM8#

main71071-16570-05iEL30,NL30..GL198605-198805

FB,BEIGE,BEIGE,TRIM4#

main71071-16580-03iEL30..LIM198605-198805

FB,GRAY,GRAY,TRIM2#

main71071-16580-04iEL30..LIM198605-198805

FB,BLUE,BLUE,TRIM8#

main71071-16580-05iEL30..LIM198605-198805

FB,BEIGE,BEIGE,TRIM4#

main71071-16590-03iEL31,NL30..ZX198605-198805

FB,GRAY,GRAY,TRIM2#

main71071-16590-04iEL31,NL30..ZX198605-198805

FB,BLUE,BLUE,TRIM8#

main71071-16590-05iEL31,NL30..ZX198605-198805

FB,BEIGE,BEIGE,TRIM4#

main71071-16610-03iEL30..TX198611-198805

WINDY,FB,GRAY,GRAY,TRIM2#

main71071-16610-04iEL30..TX198611-198805

WINDY,FB,BLUE,BLUE,TRIM8#

main71071-16650-04iEL30..CD198605-198805

PF,BLUE,BLUE,TRIM8#

main71071-16660-01iEL31..TBO198609-198805

FB,BLACK,BLACK,TRIM2#

main71071-16660-04iEL31..TBO198609-198805

FB,BLUE,BLUE,TRIM8#

main71071-16750-03iEL30..TX198708-198710

main71071-16750-03iEL30..TX198710-198805

*SWI,FB,GRAY,GRAY,TRIM2#

main71071-16750-04iEL30..TX198708-198710

main71071-16750-04iEL30..TX198710-198805

*SWI,FB,BLUE,BLUE,TRIM8#

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71071-16420-01iEL31..SR198605-198805

FB,BLACK,BLACK,TRIM2#

main71071-16420-04iEL31..SR198605-198805

FB,BLUE,BLUE,TRIM8#

main71071-16560-03iEL30,NL30..TX198605-198805

FB,GRAY,GRAY,TRIM2#

main71071-16560-04iEL30,NL30..TX198605-198805

FB,BLUE,BLUE,TRIM8#

main71071-16560-05iEL30,NL30..TX198605-198805

FB,BEIGE,BEIGE,TRIM4#

main71071-16570-03iEL30,NL30..GL198605-198805

FB,GRAY,GRAY,TRIM2#

main71071-16570-04iEL30,NL30..GL198605-198805

FB,BLUE,BLUE,TRIM8#

main71071-16570-05iEL30,NL30..GL198605-198805

FB,BEIGE,BEIGE,TRIM4#

main71071-16580-03iEL30..LIM198605-198805

FB,GRAY,GRAY,TRIM2#

main71071-16580-04iEL30..LIM198605-198805

FB,BLUE,BLUE,TRIM8#

main71071-16580-05iEL30..LIM198605-198805

FB,BEIGE,BEIGE,TRIM4#

main71071-16590-03iEL31,NL30..ZX198605-198805

FB,GRAY,GRAY,TRIM2#

main71071-16590-04iEL31,NL30..ZX198605-198805

FB,BLUE,BLUE,TRIM8#

main71071-16590-05iEL31,NL30..ZX198605-198805

FB,BEIGE,BEIGE,TRIM4#

main71071-16610-03iEL30..TX198611-198805

WINDY,FB,GRAY,GRAY,TRIM2#

main71071-16610-04iEL30..TX198611-198805

WINDY,FB,BLUE,BLUE,TRIM8#

main71071-16650-04iEL30..CD198605-198805

PF,BLUE,BLUE,TRIM2#

main71071-16660-01iEL31..TBO198609-198805

FB,BLACK,BLACK,TRIM2#

main71071-16660-04iEL31..TBO198609-198805

FB,BLUE,BLUE,TRIM8#

main71071-16750-03iEL30..TX198708-198805

*SWI,FB,GRAY,GRAY,TRIM2#

main71071-16750-04iEL30..TX198708-198805

*SWI,FB,BLUE,BLUE,TRIM8#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-16630-01iEL31..SR198605-198805

FB,BLACK,BLACK,TRIM2#

main71073-16630-04iEL31..SR198605-198805

FB,BLUE,BLUE,TRIM8#

main71073-16640-03iEL30,NL30..TX198605-198805

FB,GRAY,GRAY,TRIM2#

main71073-16640-04iEL30,NL30..TX198605-198805

FB,BLUE,BLUE,TRIM8#

main71073-16640-05iEL30,NL30..TX198605-198805

FB,BEIGE,BEIGE,TRIM4#

main71073-16650-03iEL30,NL30..GL198605-198805

FB,GRAY,GRAY,TRIM2#

main71073-16650-04iEL30,NL30..GL198605-198805

FB,BLUE,BLUE,TRIM8#

main71073-16650-05iEL30,NL30..GL198605-198805

FB,BEIGE,BEIGE,TRIM4#

main71073-16660-03iEL30..LIM198605-198805

FB,GRAY,GRAY,TRIM2#

main71073-16660-04iEL30..LIM198605-198805

FB,BLUE,BLUE,TRIM8#

main71073-16660-05iEL30..LIM198605-198805

FB,BEIGE,BEIGE,TRIM4#

main71073-16670-03iEL31,NL30..ZX198605-198805

FB,GRAY,GRAY,TRIM2#

main71073-16670-04iEL31,NL30..ZX198605-198805

FB,BLUE,BLUE,TRIM8#

main71073-16670-05iEL31,NL30..ZX198605-198805

FB,BEIGE,BEIGE,TRIM4#

main71073-16690-03iEL30..TX198611-198805

WINDY,FB,GRAY,GRAY,TRIM2#

main71073-16690-04iEL30..TX198611-198805

WINDY,FB,BLUE,BLUE,TRIM8#

main71073-16740-04iEL30..CD198605-198805

PF,BLUE,BLUE,TRIM8#

main71073-16750-01iEL31..TBO198609-198805

FB,BLACK,BLACK,TRIM2#

main71073-16750-04iEL31..TBO198609-198805

FB,BLUE,BLUE,TRIM8#

main71073-16820-03iEL30..TX198708-198805

*SWI,FB,GRAY,GRAY,TRIM2#

main71073-16820-04iEL30..TX198708-198805

*SWI,FB,BLUE,BLUE,TRIM8#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71073-16630-01iEL31..SR198605-198805

FB,BLACK,BLACK,TRIM2#

main71073-16630-04iEL31..SR198605-198805

FB,BLUE,BLUE,TRIM8#

main71073-16750-01iEL31..TBO198609-198805

FB,BLACK,BLACK,TRIM2#

main71073-16750-04iEL31..TBO198609-198805

FB,BLUE,BLUE,TRIM8#

main71074-16440-03iEL30,NL30..TX198605-198805

FB,GRAY,GRAY,TRIM2#

main71074-16440-04iEL30,NL30..TX198605-198805

FB,BLUE,BLUE,TRIM8#

main71074-16440-05iEL30,NL30..TX198605-198805

FB,BEIGE,BEIGE,TRIM4#

main71074-16450-03iEL30,NL30..GL198605-198805

FB,GRAY,GRAY,TRIM2#

main71074-16450-04iEL30,NL30..GL198605-198805

FB,BLUE,BLUE,TRIM8#

main71074-16450-05iEL30,NL30..GL198605-198805

FB,BEIGE,BEIGE,TRIM4#

main71074-16460-03iEL30..LIM198605-198805

FB,GRAY,GRAY,TRIM2#

main71074-16460-04iEL30..LIM198605-198805

FB,BLUE,BLUE,TRIM8#

main71074-16460-05iEL30..LIM198605-198805

FB,BEIGE,BEIGE,TRIM4#

main71074-16480-03iEL31,NL30..ZX198605-198805

FB,GRAY,GRAY,TRIM2#

main71074-16480-04iEL31,NL30..ZX198605-198805

FB,BLUE,BLUE,TRIM8#

main71074-16480-05iEL31,NL30..ZX198605-198805

FB,BEIGE,BEIGE,TRIM4#

main71074-16510-04iEL30..CD198605-198805

PF,BLUE,BLUE,TRIM8#

main71074-16600-03iEL30..TX198611-198805

WINDY,FB,GRAY,GRAY,TRIM2#

main71074-16600-04iEL30..TX198611-198805

WINDY,FB,BLUE,BLUE,TRIM8#

main71074-16620-03iEL30..TX198708-198805

*SWI,FB,GRAY,GRAY,TRIM2#

main71074-16620-04iEL30..TX198708-198805

*SWI,FB,BLUE,BLUE,TRIM8#

71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71410-16600-03iEL30,NL30..TX198605-198805

FB,GRAY,GRAY,TRIM2#

main71410-16600-04iEL30,NL30..TX198605-198805

FB,BLUE,BLUE,TRIM8#

main71410-16600-05iEL30,NL30..TX198605-198805

FB,BEIGE,BEIGE,TRIM4#

main71410-16610-03iEL30,NL30..GL198605-198805

FB,GRAY,GRAY,TRIM2#

main71410-16610-04iEL30,NL30..GL198605-198805

FB,BLUE,BLUE,TRIM8#

main71410-16610-05iEL30,NL30..GL198605-198805

FB,BEIGE,BEIGE,TRIM4#

main71410-16620-03iEL30..LIM198605-198805

FB,GRAY,GRAY,TRIM2#

main71410-16620-04iEL30..LIM198605-198805

FB,BLUE,BLUE,TRIM8#

main71410-16620-05iEL30..LIM198605-198805

FB,BEIGE,BEIGE,TRIM4#

main71410-16630-03iEL31,NL30..ZX198605-198805

FB,GRAY,GRAY,TRIM2#

main71410-16630-04iEL31,NL30..ZX198605-198805

FB,BLUE,BLUE,TRIM8#

main71410-16630-05iEL31,NL30..ZX198605-198805

FB,BEIGE,BEIGE,TRIM4#

main71410-16640-01iEL31..SR198605-198805

FB,BLACK,BLACK,TRIM2#

main71410-16640-04iEL31..SR198605-198805

FB,BLUE,BLUE,TRIM8#

main71410-16650-01iEL31..TBO198609-198805

FB,BLACK,BLACK,TRIM2#

main71410-16650-04iEL31..TBO198609-198805

FB,BLUE,BLUE,TRIM8#

main71410-16690-04iEL30..CD198605-198805

PF,BLUE,BLUE,TRIM8#

main71410-16750-03iEL30..TX198611-198805

WINDY,FB,GRAY,GRAY,TRIM2#

main71410-16750-04iEL30..TX198611-198805

WINDY,FB,BLUE,BLUE,TRIM8#

71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

main71410-16600-03iEL30,NL30..TX198605-198805

FB,GRAY,GRAY,TRIM2#

main71410-16600-04iEL30,NL30..TX198605-198805

FB,BLUE,BLUE,TRIM8#

main71410-16600-05iEL30,NL30..TX198605-198805

FB,BEIGE,BEIGE,TRIM4#

main71410-16610-03iEL30,NL30..GL198605-198805

FB,GRAY,GRAY,TRIM2#

main71410-16610-04iEL30,NL30..GL198605-198805

FB,BLUE,BLUE,TRIM8#

main71410-16610-05iEL30,NL30..GL198605-198805

FB,BEIGE,BEIGE,TRIM4#

main71410-16640-01iEL31..SR198605-198805

FB,BLACK,BLACK,TRIM2#

main71410-16640-04iEL31..SR198605-198805

FB,BLUE,BLUE,TRIM8#

main71410-16650-01iEL31..TBO198609-198805

FB,BLACK,BLACK,TRIM2#

main71410-16650-04iEL31..TBO198609-198805

FB,BLUE,BLUE,TRIM8#

main71410-16690-04iEL30..CD198605-198805

PF,BLUE,BLUE,TRIM8#

main71410-16750-03iEL30..TX198611-198805

WINDY,FB,GRAY,GRAY,TRIM2#

main71410-16750-04iEL30..TX198611-198805

WINDY,FB,BLUE,BLUE,TRIM8#

main71420-16590-03iEL30..LIM198605-198805

FB,GRAY,GRAY,TRIM2#

main71420-16590-04iEL30..LIM198605-198805

FB,BLUE,BLUE,TRIM8#

main71420-16590-05iEL30..LIM198605-198805

FB,BEIGE,BEIGE,TRIM4#

main71420-16600-03iEL31,NL30..ZX198605-198805

FB,GRAY,GRAY,TRIM2#

main71420-16600-04iEL31,NL30..ZX198605-198805

FB,BLUE,BLUE,TRIM8#

main71420-16600-05iEL31,NL30..ZX198605-198805

FB,BEIGE,BEIGE,TRIM4#

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71430-16660-03iEL30,NL30..TX198605-198805

FB,GRAY,GRAY,TRIM2#

main71430-16660-04iEL30,NL30..TX198605-198805

FB,BLUE,BLUE,TRIM8#

main71430-16660-05iEL30,NL30..TX198605-198805

FB,BEIGE,BEIGE,TRIM4#

main71430-16670-03iEL30,NL30..GL198605-198805

FB,GRAY,GRAY,TRIM2#

main71430-16670-04iEL30,NL30..GL198605-198805

FB,BLUE,BLUE,TRIM8#

main71430-16670-05iEL30,NL30..GL198605-198805

FB,BEIGE,BEIGE,TRIM4#

main71430-16680-03iEL30..LIM198605-198805

FB,GRAY,GRAY,TRIM2#

main71430-16680-04iEL30..LIM198605-198805

FB,BLUE,BLUE,TRIM8#

main71430-16680-05iEL30..LIM198605-198805

FB,BEIGE,BEIGE,TRIM4#

main71430-16690-03iEL31,NL30..ZX198605-198805

FB,GRAY,GRAY,TRIM2#

main71430-16690-04iEL31,NL30..ZX198605-198805

FB,BLUE,BLUE,TRIM8#

main71430-16690-05iEL31,NL30..ZX198605-198805

FB,BEIGE,BEIGE,TRIM4#

main71430-16700-01iEL31..SR198605-198805

FB,BLACK,BLACK,TRIM2#

main71430-16700-04iEL31..SR198605-198805

FB,BLUE,BLUE,TRIM8#

main71430-16710-01iEL31..TBO198609-198805

FB,BLACK,BLACK,TRIM2#

main71430-16710-04iEL31..TBO198609-198805

FB,BLUE,BLUE,TRIM8#

main71430-16720-01iEL31..SR198605-198805

FB,W/BODY SONIC,BLACK,BLACK,TRIM2#

main71430-16720-04iEL31..SR198605-198805

FB,W/BODY SONIC,BLUE,BLUE,TRIM8#

main71430-16730-01iEL31..TBO198609-198805

FB,W/BODY SONIC,BLACK,BLACK,TRIM2#

main71430-16730-04iEL31..TBO198609-198805

FB,W/BODY SONIC,BLUE,BLUE,TRIM8#

main71430-16780-04iEL30..CD198605-198805

PF,BLUE,BLUE,TRIM8#

main71430-16860-03iEL30..TX198611-198805

WINDY,FB,GRAY,GRAY,TRIM2#

main71430-16860-04iEL30..TX198611-198805

WINDY,FB,BLUE,BLUE,TRIM8#

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71440-16410-03iEL30,NL30..TX198605-198805

FB,GRAY,GRAY,TRIM2#

main71440-16410-04iEL30,NL30..TX198605-198805

FB,BLUE,BLUE,TRIM8#

main71440-16410-05iEL30,NL30..TX198605-198805

FB,BEIGE,BEIGE,TRIM2#

main71440-16420-03iEL30,NL30..GL198605-198805

FB,GRAY,GRAY,TRIM4#

main71440-16420-04iEL30,NL30..GL198605-198805

FB,BLUE,BLUE,TRIM8#

main71440-16420-05iEL30,NL30..GL198605-198805

FB,BEIGE,BEIGE,TRIM4#

main71440-16640-03iEL30..LIM198605-198805

FB,GRAY,GRAY,TRIM2#

main71440-16640-04iEL30..LIM198605-198805

FB,BLUE,BLUE,TRIM8#

main71440-16640-05iEL30..LIM198605-198805

FB,BEIGE,BEIGE,TRIM4#

main71440-16650-03iEL31,NL30..ZX198605-198805

FB,GRAY,GRAY,TRIM2#

main71440-16650-04iEL31,NL30..ZX198605-198805

FB,BLUE,BLUE,TRIM8#

main71440-16650-05iEL31,NL30..ZX198605-198805

FB,BEIGE,BEIGE,TRIM4#

main71440-16660-01iEL31..SR198605-198805

FB,BLACK,BLACK,TRIM2#

main71440-16660-04iEL31..SR198605-198805

FB,BLUE,BLUE,TRIM8#

main71440-16670-01iEL31..TBO198609-198805

FB,BLACK,BLACK,TRIM2#

main71440-16670-04iEL31..TBO198609-198805

FB,BLUE,BLUE,TRIM8#

main71440-16680-01iEL31..SR198605-198805

FB,W/BODY SONIC,BLACK,BLACK,TRIM2#

main71440-16680-04iEL31..SR198605-198805

FB,W/BODY SONIC,BLUE,BLUE,TRIM8#

main71440-16690-01iEL31..TBO198609-198805

FB,W/BODY SONIC,BLACK,BLACK,TRIM2#

main71440-16690-04iEL31..TBO198609-198805

FB,W/BODY SONIC,BLUE,BLUE,TRIM8#

main71440-16720-04iEL30..CD198605-198805

PF,BLUE,BLUE,TRIM8#

main71440-16810-03iEL30..TX198611-198805

WINDY,FB,GRAY,GRAY,TRIM2#

main71440-16810-04iEL30..TX198611-198805

WINDY,FB,BLUE,BLUE,TRIM8#

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-16100iEL3#,NL30..CD,GL,LIM,TX,ZX198605-198805

main71513-16010iEL31..GP,SR198605-198805

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71511-16100iEL3#,NL30..CD,GL,LIM,TX,ZX198605-198805

main71513-16010iEL31..GP,SR198605-198805

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71505-16020iEL3#,NL30..CD,GL,LIM,TX,ZX198605-198805

main71553-16010iEL31..GP,SR198605-198805

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71506-16020iEL3#,NL30..CD,GL,LIM,TX,ZX198605-198805

main71553-16010iEL31..GP,SR198605-198805

71553BPAD, FRONT SEATBACK, B

main71553-16030iEL3#,NL30..CD,GL,LIM,TX,ZX198605-198805

71753TRAY, FRONT SEAT UNDER

main71753-12010iEL3#,NL30..LIM,ZX198605-198805

71831DCOVER, FRONT SEAT HINGE, RH

main71831-10010iEL3#,NL30..CD,GL,LIM,TX,ZX198605-198805

71832DCOVER, FRONT SEAT HINGE, LH

main71831-10010iEL3#,NL30..CD,GL,LIM,TX,ZX198605-198805

71950HEADREST ASSY, FRONT SEAT

main71910-16180-01iEL30,NL30..GL,TX198605-198805

BLACK,BLACK,TRIM2#

main71910-16180-04iEL30,NL30..CD,GL,TX198605-198805

BLUE,BLUE,TRIM8#

main71910-16180-05iEL30,NL30..GL,TX198605-198805

BEIGE,BEIGE,TRIM4#

main71910-16190-03iEL31,NL30..ZX198605-198805

GRAY,GRAY,TRIM2#

main71910-16190-04iEL31,NL30..ZX198605-198805

BLUE,BLUE,TRIM8#

main71910-16190-05iEL31,NL30..ZX198605-198805

BEIGE,BEIGE,TRIM4#

main71910-16200-01iEL31..GP,SR198605-198805

BLACK,BLACK,TRIM2#

main71910-16200-04iEL31..GP,SR198605-198805

BLUE,BLUE,TRIM8#

main71910-16230-03iEL30..LIM198710-198805

*ASL,GRAY,GRAY,TRIM2#

main71910-16230-04iEL30..LIM198710-198805

*ASL,BLUE,BLUE,TRIM8#

main71910-16270-03iEL30..LIM198605-198805

GRAY,GRAY,TRIM2#

main71910-16270-04iEL30..LIM198605-198805

BLUE,BLUE,TRIM8#

main71910-16270-05iEL30..LIM198605-198805

BEIGE,BEIGE,TRIM4#

71956ASUPPORT, FRONT SEAT HEADREST

main71931-16010-01iEL3#,NL30..GL,GP,LIM,SR,TX,ZX198605-198805

BLACK,BLACK,TRIM2#

sub71931-16011

main71931-16010-04iEL3#,NL30198605-198805

BLUE,BLUE,TRIM8#

sub71931-16011

main71931-16010-05iEL3#,NL30..GL,LIM,TX,ZX198605-198805

BEIGE,BEIGE,TRIM4#

sub71931-16011

73515RAIL, FRONT SEAT UNDER TRAY, NO.1

main73515-12020iEL3#,NL30..LIM,ZX198605-198805

73516RAIL, FRONT SEAT UNDER TRAY, NO.2

main73516-12020iEL3#,NL30..LIM,ZX198605-198805

9038612016

main90386-12016

9052001002

main90520-01002

9052308001

main90523-08001

9356014008

main93560-14008

26 parts on this diagram · 4 diagrams in section
