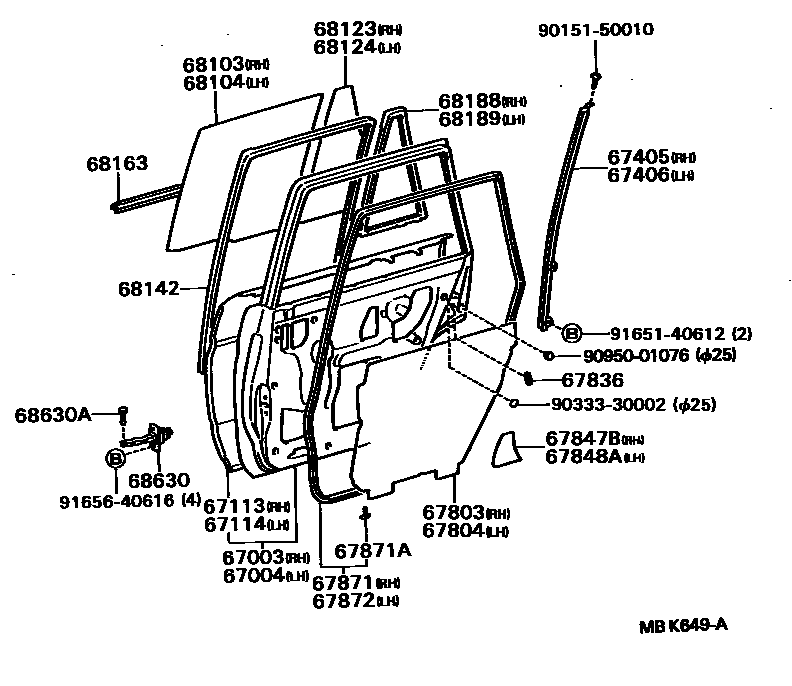

REAR DOOR PANEL & GLASS

0001 1 0002 1

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-16150iEL3#,NL30..5DS198605-198805

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-16150iEL3#,NL30..5DS198605-198805

67113PANEL, REAR DOOR, OUTER RH

main67113-16050iEL3#,NL30..5DS198605-198708

main67113-16070iEL3#,NL30..5DS198708-198805

67114PANEL, REAR DOOR, OUTER LH

main67114-16050iEL3#,NL30..5DS198605-198708

main67114-16070iEL3#,NL30..5DS198708-198805

67405BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-16050iEL3#,NL30..5DS198605-198805

67406BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-16050iEL3#,NL30..5DS198605-198805

67803COVER SUB-ASSY, REAR DOOR SERVICE HOLE, RH

main67841-16080iEL3#,NL30..5DS198605-198805

sub67841-16090

main67841-16100iEL3#,NL30..5DS198605-198805

COLD SPEC

67804COVER SUB-ASSY, REAR DOOR SERVICE HOLE, LH

main67841-16100iEL3#,NL30..5DS198605-198805

COLD SPEC

main67842-16050iEL3#,NL30..5DS198605-198805

sub67842-16060

67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH

main67836-14010×2iEL3#,NL30..5DS198605-198805

67847BSEAL, REAR DOOR VENT, RH NO.1

main67847-16010iEL3#,NL30..5DS198605-198805

COLD SPEC

67848ASEAL, REAR DOOR VENT, LH NO.1

main67848-16010iEL3#,NL30..5DS198605-198805

COLD SPEC

67871WEATHERSTRIP, REAR DOOR, RH

main67871-16120iEL3#,NL30..5DS198605-198805

67871ARETAINER(FOR REAR DOOR WEATHERSTRIP)

main67868-30040×28iEL3#,NL30..5DS198605-198805

67872WEATHERSTRIP, REAR DOOR, LH

main67872-16120iEL3#,NL30..5DS198605-198805

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-16080iEL30..5DS..TX198611-198805

main68113-16090iEL3#,NL30..5DS198605-198805

68104GLASS SUB-ASSY, REAR DOOR, LH

main68114-16080iEL30..5DS..TX198611-198805

main68114-16090iEL3#,NL30..5DS198605-198805

68123GLASS, REAR DOOR WINDOW, RH

main68123-16080iEL30..5DS..TX198611-198805

main68123-16090iEL3#,NL30..5DS198605-198805

68124GLASS, REAR DOOR WINDOW, LH

main68124-16080iEL30..5DS..TX198611-198805

main68124-16090iEL3#,NL30..5DS198605-198805

68142RUN, REAR DOOR GLASS

main68142-16060×2iEL3#,NL30..5DS198605-198805

68163WEATHERSTRIP, REAR DOOR GLASS, OUTER

main68180-16030iEL30,NL30..5DS..(GL,TX)198605-198805

RH

main68230-16020iEL30,NL30..5DS..(GL,TX)198605-198805

LH

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-16050iEL3#,NL30..5DS198605-198805

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-16050iEL3#,NL30..5DS198605-198805

68630CHECK ASSY, REAR DOOR

main68630-16040×2iEL3#,NL30..5DS198605-198805

68630APIN(FOR REAR DOOR CHECK)

main68617-90A00×2iEL3#,NL30..5DS198605-198805

9015150010

main90151-50010

9033330002

main90333-30002

9095001076

main90950-01076

9165140612

main91651-40612

9165640616

main91656-40616

29 parts on this diagram · 2 diagrams in section
