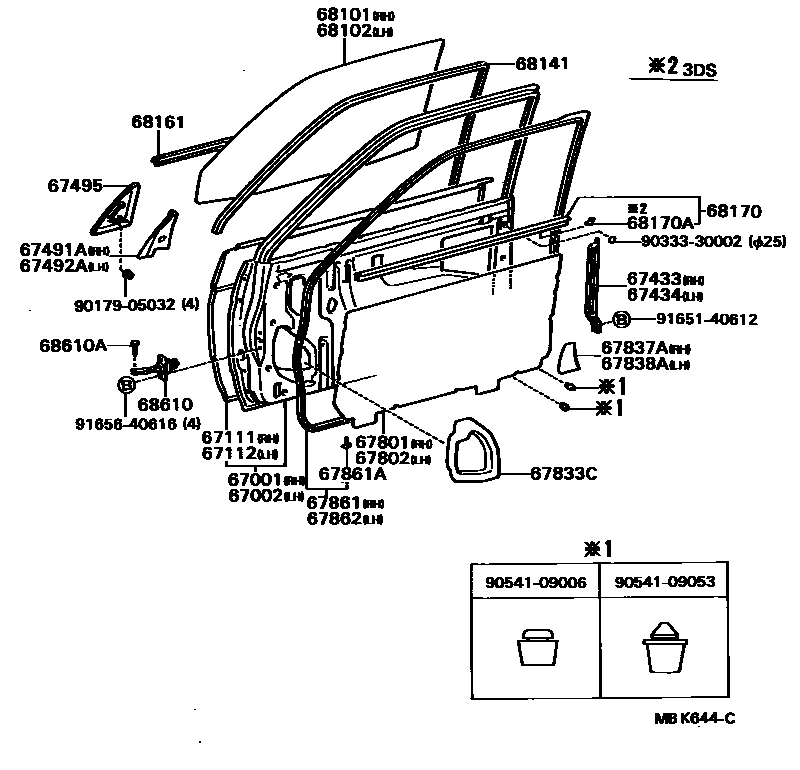

FRONT DOOR PANEL & GLASS

0001 1 0002 1 0003 1

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-16150iEL3#..3DS198605-198805

main67001-16200iEL3#..3DS..(GP,LIM,SR,ZX)198605-198805

W/*PW OR ELECTRIC *DM

main67001-16210iEL3#,NL30..5DS198605-198805

main67001-16280iEL3#,NL30..5DS..(LIM,ZX)198605-198805

W/*PW OR ELECTRIC *DM

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-16110iEL3#..3DS198605-198805

main67002-16160iEL3#..3DS..(GP,LIM,SR,ZX)198605-198805

W/*PW OR ELECTRIC *DM

main67002-16170iEL3#,NL30..5DS198605-198805

main67002-16240iEL3#,NL30..5DS..(LIM,ZX)198605-198805

W/*PW OR ELECTRIC *DM

67111PANEL, FRONT DOOR, OUTER RH

main67111-16150iEL3#..3DS198605-198708

main67111-16160iEL3#..3DS198708-198805

main67111-16170iEL3#,NL30..5DS198605-198708

main67111-16180iEL3#,NL30..5DS198708-198805

67112PANEL, FRONT DOOR, OUTER LH

main67112-16130iEL3#..3DS198605-198708

main67112-16140iEL3#..3DS198708-198805

main67112-16150iEL3#,NL30..5DS198605-198708

main67112-16160iEL3#,NL30..5DS198708-198805

67433FRAME, FRONT DOOR WINDOW, REAR LOWER RH

main67433-16040iEL3#..3DS198605-198805

main67433-16050iEL3#,NL30..5DS198605-198805

67434FRAME, FRONT DOOR WINDOW, REAR LOWER LH

main67434-16040iEL3#..3DS198605-198805

main67434-16050iEL3#,NL30..5DS198605-198805

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-16050iEL3#..3DS198605-198805

main67491-16070iEL3#,NL30..5DS198605-198805

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-16050iEL3#..3DS198605-198805

main67492-16070iEL3#,NL30..5DS198605-198805

67495COVER, FRONT DOOR FRONT LOWER FRAME, UPPER

main67495-16030iEL3#..3DS..(GL,GP,LIM,SR,TX,ZX)198605-198805

RH,W/*FM,BELT MOULDING

main67495-16040iEL30..3DS..(CD,GL,TX)198605-198805

RH,W/*FM

main67495-16050iEL3#,NL30..5DS..(GL,LIM,ZX)198605-198805

RH,W/*FM,BELT MOULDING

main67495-16060iEL30,NL30..5DS..(GL,TX)198605-198805

RH,W/*FM

main67496-16030iEL3#..3DS..(GL,GP,LIM,SR,ZX)198605-198805

LH,W/*FM,BELT MOULDING

main67496-16040iEL30..3DS..(CD,GL,TX)198605-198805

LH,W/*FM

main67496-16050iEL3#,NL30..5DS..(GL,LIM,ZX)198605-198805

LH,W/*FM,BELT MOULDING

main67496-16060iEL30,NL30..5DS..(GL,TX)198605-198805

LH,W/*FM

67801COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 RH

main67831-16100iEL3#..3DS198605-198805

sub67831-16120

main67831-16130iEL3#,NL30..5DS198605-198805

sub67831-16140

main67831-16150iEL3#,NL30..5DS198605-198805

COLD SPEC

main67831-16160iEL31,NL30..5DS..ZX198605-198805

W/POWER WINDOW

main67831-16170iEL31,NL30..5DS..ZX198605-198805

W/POWER WINDOW & COLD SPEC

67802COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 LH

main67831-16100iEL3#..3DS198605-198805

sub67831-16120

main67831-16150iEL3#,NL30..5DS198605-198805

COLD SPEC

main67832-16100iEL3#,NL30..5DS198605-198805

sub67832-16110

67833CCOVER, FRONT DOOR SPEAKER HOLE

main67833-16010×2iEL31..3DS198605-198805

W/DOOR SPEAKER

67837ASEAL, FRONT DOOR VENT, RH

main67837-16020iEL3#,NL30..5DS198605-198805

COLD SPEC

67838ASEAL, FRONT DOOR VENT, LH

main67838-16020iEL3#,NL30..5DS198605-198805

COLD SPEC

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-16210iEL3#..3DS198605-198805

main67861-16220iEL3#,NL30..5DS198605-198805

67861ARETAINER(FOR FRONT DOOR WEATHERSTRIP)

main67868-30040×34iEL3#..3DS198605-198805

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-16210iEL3#..3DS198605-198805

main67862-16220iEL3#,NL30..5DS198605-198805

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68111-16130iEL30..3DS..TX198611-198805

main68111-16140iEL3#..3DS..(GL,GP,LIM,SR,TX,ZX)198605-198805

main68111-16160iEL30..5DS..TX198611-198805

main68111-16170iEL3#,NL30..5DS198605-198805

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68112-16130iEL30..CD198605-198805

main68112-16140iEL3#..3DS..(GL,GP,LIM,SR,TX,ZX)198605-198805

main68112-16160iEL30..5DS..TX198611-198805

main68112-16170iEL3#,NL30..5DS198605-198805

68141RUN, FRONT DOOR GLASS

main68141-16150×2iEL3#..3DS198605-198805

main68141-16160×2iEL3#,NL30..5DS198605-198805

68161WEATHERSTRIP, FRONT DOOR GLASS, OUTER

main68160-16070iEL30..3DS..(CD,GL,TX)198605-198805

RH

main68160-16080iEL30,NL30..5DS..(GL,TX)198605-198805

RH

main68210-16060iEL30..3DS..(CD,GL,TX)198605-198805

LH

main68210-16070iEL30,NL30..5DS..(GL,TX)198605-198805

LH

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68170-16080×2iEL3#..3DS198605-198805

main68171-16070iEL30,NL30..5DS..(GL,TX)198605-198805

RH

main68172-16070iEL30,NL30..5DS..(GL,TX)198605-198805

LH

main68172-16080×2iEL3#,NL30..5DS..(LIM,ZX)198605-198805

68170ACLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET)

main67773-16040×14iEL30,NL30..5DS..(GL,TX)198605-198805

main68211-10030×14iEL3#..3DS198605-198805

68610CHECK ASSY, FRONT DOOR

main68610-10020×2iEL3#,NL30198605-198805

68610APIN(FOR FRONT DOOR CHECK)

main68617-90A00×2iEL3#,NL30198605-198805

9017905032

main90179-05032

9033330002

main90333-30002

9054109006

main90541-09006

9054109053

main90541-09053

9165140612

main91651-40612

9165640616

main91656-40616

31 parts on this diagram · 3 diagrams in section
