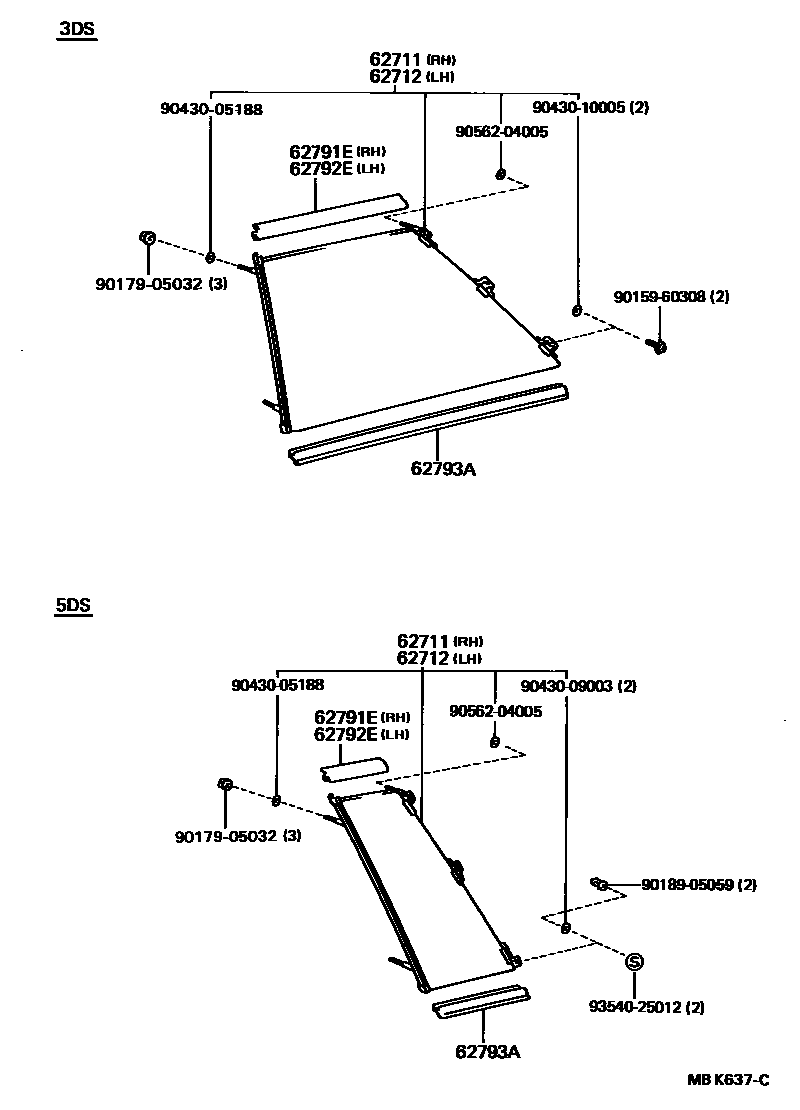

QUARTER WINDOW

62711GLASS, QUARTER WINDOW, RH

main62710-16120iEL30..5DS..TX198611-198805

main62710-16130iEL3#,NL30..5DS198605-198805

main62710-16150iEL30..3DS..TX198611-198805

main62710-16160iEL3#..3DS..(GL,GP,LIM,SR,TX,ZX)198605-198805

62712GLASS, QUARTER WINDOW, LH

main62720-16120iEL30..5DS..TX198611-198805

main62720-16130iEL3#,NL30..5DS198605-198805

main62720-16150iEL30..3DS..TX198611-198805

main62720-16160iEL3#..3DS..(GL,GP,LIM,SR,TX,ZX)198605-198805

62791EMOULDING, QUARTER WINDOW, UPPER RH

main62791-16010iEL3#..3DS198605-198805

main62791-16020iEL3#,NL30..5DS198605-198805

62792EMOULDING, QUARTER WINDOW, UPPER LH

main62791-16010iEL3#..3DS198605-198805

main62792-16010iEL3#,NL30..5DS198605-198805

62793AMOULDING, QUARTER WINDOW, LOWER

main62793-16010×2iEL30..3DS..(CD,GL,TX)198605-198805

sub62793-16011

main62793-16020×2iEL30,NL30..5DS..(GL,TX)198605-198805

main62793-16030×2iEL3#..3DS..(GL,GP,LIM,SR,ZX)198605-198805

W/BELT MOULDING

main62793-16040×2iEL3#,NL30..5DS..(GL,LIM,ZX)198605-198805

W/BELT MOULDING

9015960308

main90159-60308

9017905032

main90179-05032

9018905059

main90189-05059

9043005188

main90430-05188

9043009003

main90430-09003

9043010005

main90430-10005

9056204005

main90562-04005

9354025012

main93540-25012

13 parts on this diagram · 1 diagram in section
