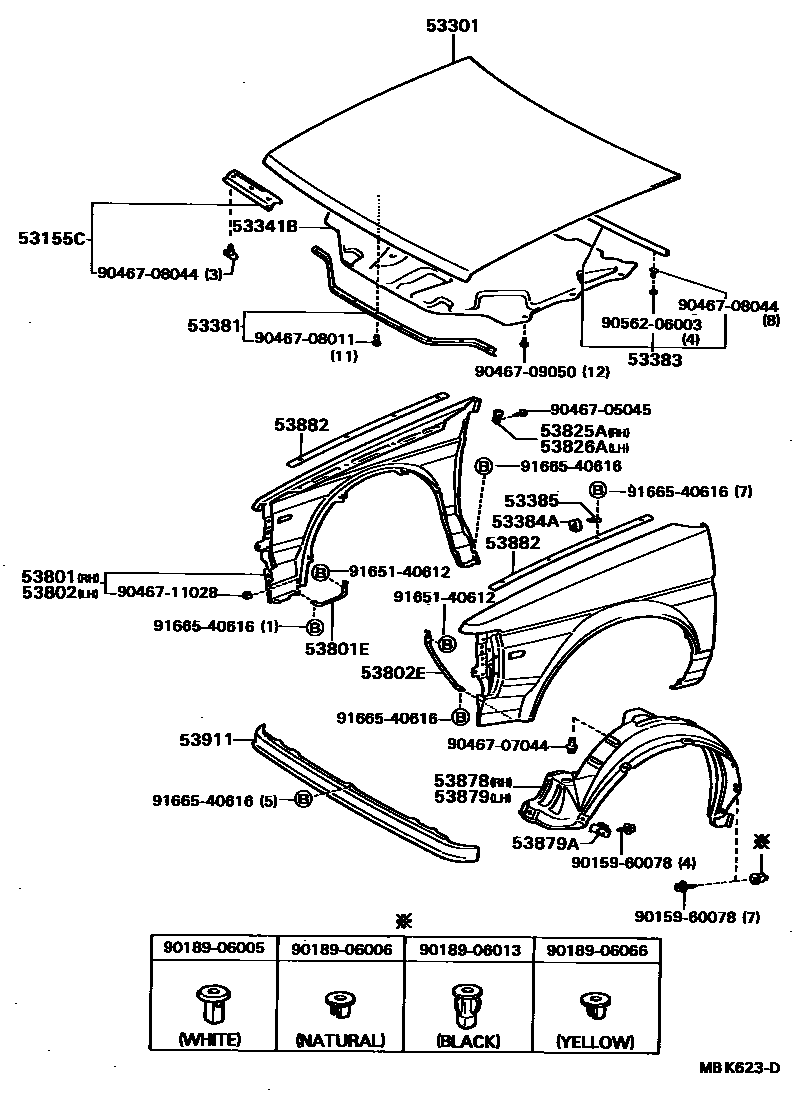

HOOD & FRONT FENDER

0001 1 0002 1

53155CSEAL, RADIATOR GRILLE, NO.1

main53155-16030iNL30198605-198805

COLD SPEC

53301HOOD SUB-ASSY

main53301-16050iEL31..SR198605-198805

sub53301-16051

sub85035-16070

sub85370-16140

main53301-16060iEL31..TBO198609-198805

sub53301-16061

sub85035-16070

sub85370-16140

main53301-16070iEL3#,NL30..CD,GL,LIM,TX,ZX198605-198805

sub53301-16071

sub85035-16070

sub85370-16140

sub85370-16150

53341BINSULATOR, HOOD

main53341-16010iNL30198605-198805

main53341-16020iEL31..TBO198609-198805

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-16030iEL31..GP,SR198605-198805

main53381-16040iEL3#,NL30..CD,GL,LIM,TX,ZX198605-198805

53383SEAL, HOOD TO COWL TOP

main53383-16030iEL3#,NL30198605-198805

53384ABUMPER, FENDER TO HOOD

main53384-16030×2iEL3#,NL30198605-198805

53385RETAINER, HOOD, BUMPER

main53385-14010iEL3#,NL30198605-198805

LH

main53386-14010iEL3#,NL30198605-198805

RH

53801FENDER SUB-ASSY, FRONT RH

main53801-16060iEL3#,NL30..CD,GL,LIM,TX,ZX198605-198805

W/DOOR MIRROR

sub53801-16061

main53801-16070iEL3#,NL30..CD,GL,LIM,TX,ZX198605-198805

W/FENDER MIRROR

sub53801-16071

main53801-16130iEL31..GP,SR198605-198805

W/DOOR MIRROR

sub53801-16131

main53801-16160iEL31..GP,SR198605-198805

W/DOOR MIRROR & FR SPOILER

sub53801-16161

main53801-16170iEL31..GP,SR198605-198805

W/FENDER MIRROR

sub53801-16171

main53801-16180iEL31..GP,SR198605-198805

W/FENDER MIRROR & FR SPOILER

sub53801-16181

53801EBRACE, FRONT FENDER TO APRON, RH

main53835-16020iEL3#,NL30198605-198805

53802FENDER SUB-ASSY, FRONT LH

main53802-16060iEL3#,NL30..CD,GL,LIM,TX,ZX198605-198805

W/DOOR MIRROR

sub53802-16061

main53802-16070iEL3#,NL30..CD,GL,LIM,TX,ZX198605-198805

W/FENDER MIRROR

sub53802-16071

main53802-16090iEL31..GP,SR198605-198805

W/DOOR MIRROR

sub53802-16091

main53802-16100iEL31..GP,SR198605-198805

W/DOOR MIRROR & FR SPOILER

sub53802-16101

main53802-16160iEL31..GP,SR198605-198805

W/FENDER MIRROR

sub53802-16161

main53802-16170iEL31..GP,SR198605-198805

W/FENDER MIRROR & FR SPOILER

sub53802-16171

53802EBRACE, FRONT FENDER TO APRON, LH

main53836-16020iEL3#,NL30198605-198805

53825APROTECTOR, FRONT FENDER, UPPER RH

main53825-16010iEL3#,NL30198605-198805

53826APROTECTOR, FRONT FENDER, UPPER LH

main53826-16010iEL3#,NL30198605-198805

53878LINER, FRONT FENDER, RH

main53875-16030iEL3#,NL30198605-198805

53879LINER, FRONT FENDER, LH

main53876-16030iEL3#,NL30198605-198805

53879ARETAINER, FRONT FENDER LINER

main53879-14010×8iEL3#,NL30198605-198805

53882PACKING, FRONT FENDER MAIN

main53882-10050×2iEL3#,NL30198605-198805

53911PANEL, FRONT VALANCE

main53901-16030iEL3#,NL30198605-198712

main53901-16040iEL31..GP,SR198605-198805

W/FR SPOILER

main53901-16050iEL3#,NL30198712-198805

9015960078

main90159-60078

9018906005

main90189-06005

9018906006

main90189-06006

9018906013

main90189-06013

9018906066

main90189-06066

9046705045

main90467-05045

9046707044

main90467-07044

9046708011

main90467-08011

9046708044

main90467-08044

9046709050

main90467-09050

9046711028

main90467-11028

9056206003

main90562-06003

9165140612

main91651-40612

9166540616

main91665-40616

32 parts on this diagram · 2 diagrams in section
