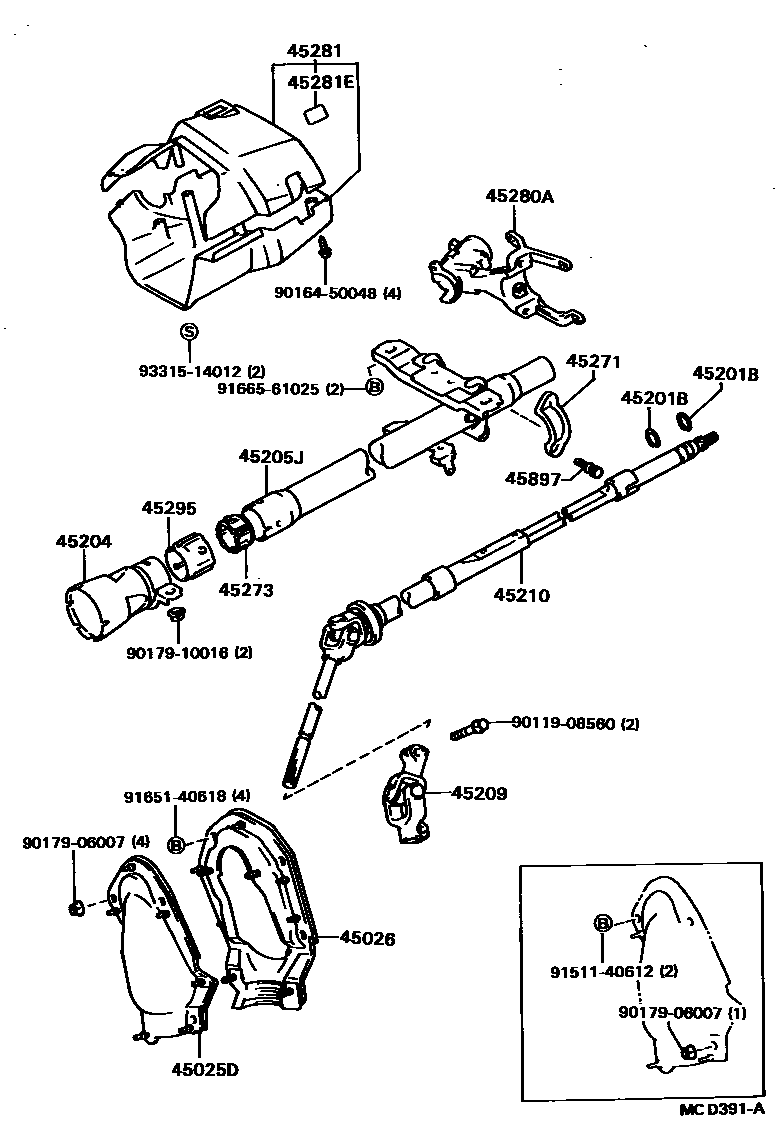

STEERING COLUMN & SHAFT

0001 1 0002 1

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-16070iNL30..GL,TX198605-198805

main45025-16090iEL3#,NL30..GL,LIM,SR,TX,ZX198605-198609

W/POWER STEERING

sub45025-16091

main45025-16091iEL3#,NL30..GL,GP,LIM,SR,TX,ZX198609-198805

W/POWER STEERING

45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2

main45026-16010iNL30..GL,TX198605-198805

main45026-16030iEL3#,NL30..GL,LIM,SR,TX,ZX198605-198609

W/POWER STEERING

sub45026-16032

sub90179-06007

sub91511-40612

main45026-16032iEL3#,NL30..GL,GP,LIM,SR,TX,ZX198609-198805

W/POWER STEERING

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iEL3#,NL30198605-198805

main90520-17196iEL3#,NL30198605-198805

45204TUBE ASSY, STEERING COLUMN, LOWER

main45204-16010iEL3#,NL30..CD,GL,SR,TX198605-198608

sub45204-16011

main45204-16011iEL3#,NL30..CD,GL,GP,SR,TX198608-198805

main45204-16020iEL31198605-198805

W/*TIS

main45204-16030iEL3#..GP,LIM,SR,ZX198605-198805

W/*TIS & POWER STEERING

45205JTUBE SUB-ASSY, STEERING COLUMN, UPPER

main45205-16050iEL3#,NL30..CD,GL,GP,SR,TX198605-198805

sub45205-16051

main45205-16060iEL3#..GP,LIM,SR,ZX198605-198805

W/*TIS

sub45205-16061

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-10020iEL3#..CD,GL,GP,SR,TX,ZX198605-198805

main45209-16020iEL3#,NL30..GL,GP,LIM,SR,TX,ZX198605-198805

W/POWER STEERING

45210SHAFT ASSY, STEERING MAIN

main45210-16080iNL30..GL,TX198605-198805

sub45210-16081

main45210-16100iEL3#,NL30..GL,GP,LIM,SR,TX,ZX198605-198805

W/POWER STEERING

45271CLAMP, STEERING COLUMN, UPPER

main45271-16020iEL3#,NL30198605-198805

45273BUSH, STEERING MAIN SHAFT

main45273-16010iEL3#,NL30198605-198805

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-16040iEL3#,NL30198605-198805

45281HOUSING, STEERING COLUMN

main45286-16905-01iEL3#,NL30..GL,GP,SR,TX,ZX198605-198805

BLACK,NEW BLACK,TRIM2#

sub45286-16905

main45286-16905-04iEL3#,NL30..CD,GL,GP,SR,TX,ZX198605-198805

BLUE,BLUE,TRIM8#

sub45286-16905

main45286-16905-05iEL30,NL30..GL,TX,ZX198605-198805

BEIGE,DARK BEIGE,TRIM4#

sub45286-16905

main45286-16907-01iEL3#..GP,LIM,SR,ZX198605-198805

BLACK,W/TILT STEERING,NEW BLACK,TRIM2#

main45286-16907-04iEL3#..GP,LIM,SR,ZX198605-198805

BLUE,W/TILT STEERING,BLUE,TRIM8#

main45286-16907-05iEL3#..LIM,ZX198605-198805

BEIGE,W/TILT STEERING,DARK BEIGE,TRIM4#

45281EPLATE, SAFETY CAUTION

main45283-12010iEL3#,NL30198605-198805

45295BUSH, STEERING COLUMN TUBE

main45295-16010iEL3#,NL30198605-198805

45897BOLT, STEERING LOCK SET

main45897-12020iEL3#,NL30198605-198805

9011908560

main90119-08560

9016450048

main90164-50048

9017906007

main90179-06007

9017910016

main90179-10016

9151140612

main91511-40612

9165140618

main91651-40618

9166561025

main91665-61025

9331514012

main93315-14012

22 parts on this diagram · 2 diagrams in section
