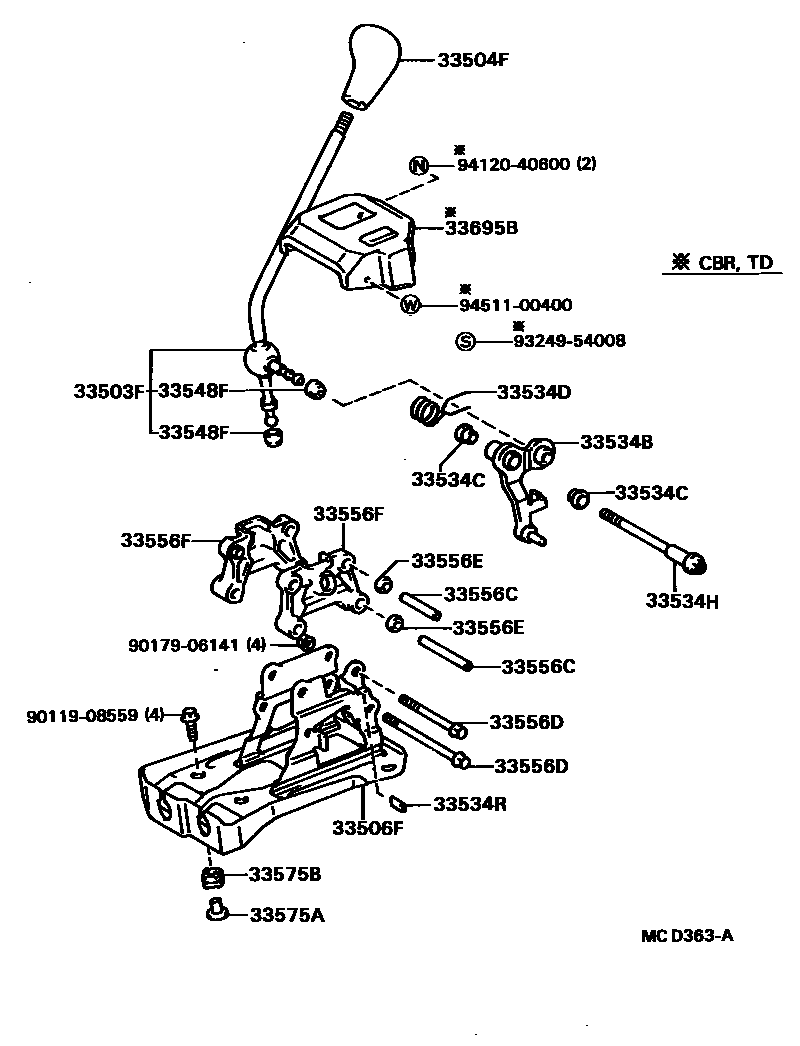

SHIFT LEVER & RETAINER
33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
33504FKNOB SUB-ASSY, SHIFT LEVER
BLUE,BLUE,TRIM8#
BLACK,NEW BLACK,TRIM2#
BLACK,NEW BLACK,TRIM2#
BEIGE,DARK BEIGE,TRIM4#
BLUE,BLUE,TRIM8#
BLACK,NEW BLACK,TRIM2#
BEIGE,DARK BEIGE,TRIM4#
BLUE,BLUE,TRIM8#
BLACK,NEW BLACK,TRIM2#
BLUE,DEEP BLUE,TRIM8#
BEIGE,DARK BEIGE,TRIM4#
LEATHER,BLACK,NEW BLACK,TRIM2#
LEATHER,BLUE,DEEP BLUE,TRIM8#
BLACK,NEW BLACK,TRIM2#
BEIGE,DARK BEIGE,TRIM4#
BLUE,BLUE,TRIM8#
BLACK,NEW BLACK,TRIM2#
BEIGE,DARK BEIGE,TRIM4#
BLUE,DEEP BLUE,TRIM8#
33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)
33534BCRANK, SELECTING BELL, NO.1
33534CBUSH (FOR SELECTING BELLCRANK NO.1)
33534DSPRING, TORSION (FOR SELECTING BELLCRANK NO.1)
33534HBOLT (FOR SELECTING BELLCRANK NO.1)
33534RCUSHION (FOR SELECTING BELLCRANK NO.1)
33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)
33556CCOLLAR (FOR TRANSMISSION SHIFT LEVER BALL SEAT)
L=37.8
L=57.8
33556DBOLT (FOR TRANSMISSION SHIFT LEVER BALL SEAT)
*6-1.00PX55-14.5
*6-1.00PX71-10.5
33556ECUSHION (FOR TRANSMISSION SHIFT LEVER BALL SEAT)
33556FSEAT, TRANSMISSION SHIFT LEVER BALL
33575ABUSH, NO.1 (FOR CONTROL SHIFT LEVER RETAINER)
33575BBUSH, NO.2 (FOR CONTROL SHIFT LEVER RETAINER)
33695BCOVER, SELECTING SPRING (FOR FLOOR SHIFT)
9011908559
main90119-08559
9017906141
main90179-06141
9324954008
main93249-54008
9412040600
main94120-40600
9451100400
main94511-00400
21 parts on this diagram · 5 diagrams in section
