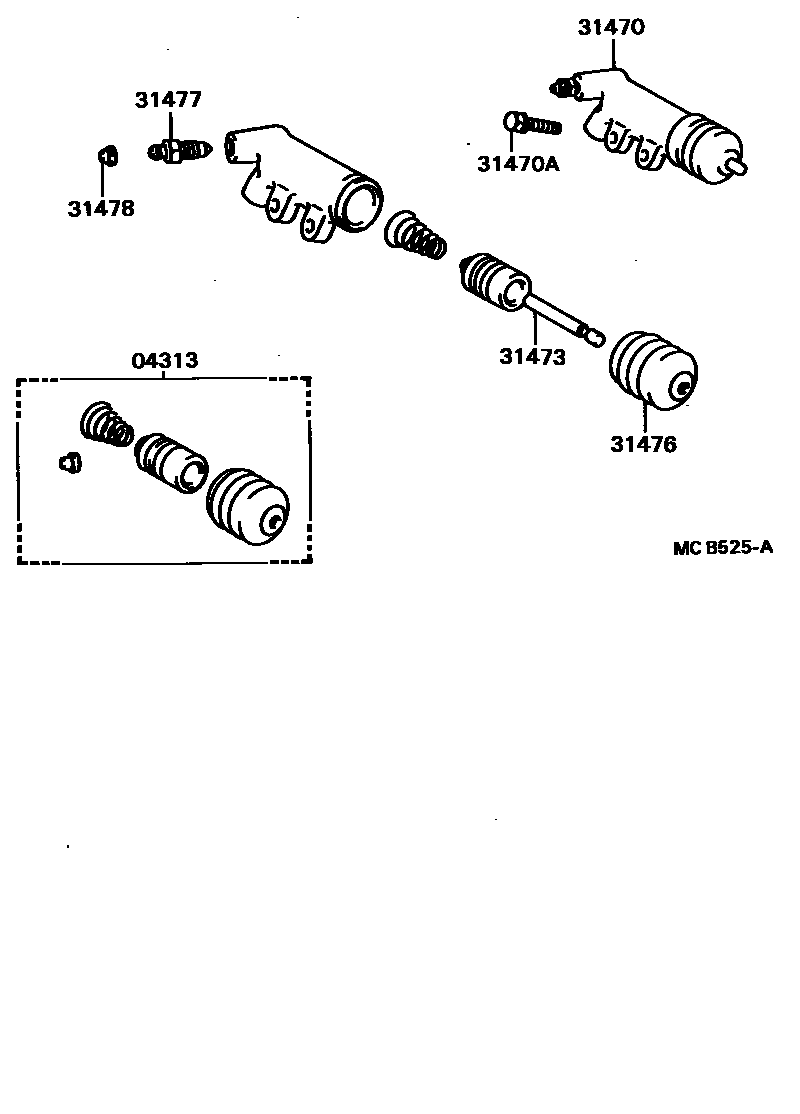

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-22020iEL3#,NL30..MTM198605-198805

sub04313-12030

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-10010iEL3#..MTM198605-198805

sub31470-10011

main31470-16010iNL30..5F198605-198805

sub31470-16011

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60822iEL3#,NL30..MTM198605-198805

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-32010iEL3#,NL30..MTM198605-198805

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iEL3#,NL30..MTM198605-198805

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iEL3#,NL30..MTM198605-198805

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iEL3#,NL30..MTM198605-198805

7 parts on this diagram · 1 diagram in section
