CLUTCH MASTER CYLINDER

04311CYLINDER KIT, CLUTCH MASTER

main04311-14030iEL3#,NL30..MTM198611-198704

main04311-14031iEL3#,NL30..MTM198704-198805

sub04311-14032

main04311-17020iNL30..5F198605-198611

main04311-17030iEL3#..MTM198605-198611

sub04311-17031

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-30060iEL3#,NL30..MTM198605-198805

sub31402-30061

sub47231-20010

31410CYLINDER ASSY, CLUTCH MASTER

main31410-16010iEL3#..MTM198605-198704

main31410-16011iEL3#..MTM198704-198710

main31410-16012iEL3#..MTM198710-198805

sub31410-16013

main31410-16020iNL30..5F198605-198704

main31410-16021iNL30..5F198704-198710

main31410-16022iNL30..5F198710-198805

sub31410-16023

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

main90116-08146×2iEL3#,NL30..MTM198605-198805

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-30011iEL3#,NL30..MTM198605-198805

31431BOLT, CLUTCH MASTER CYLINDER RESERVOIR SET

main47231-30010iEL3#,NL30..MTM198605-198805

31432WASHER, CLUTCH RESERVOIR SET BOLT

main47232-30010iEL3#..MTM198605-198805

31440PCAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main47230-20040iEL3#,NL30..MTM198605-198805

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-20050iEL3#..MTM198605-198611

main31451-22060iEL3#..MTM198611-198805

main31451-22070iNL30..5F198611-198805

main31451-30060iNL30..5F198605-198611

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-16010iNL30..5F198605-198612

sub31404-20010

main31404-16011iNL30..5F198612-198805

sub31404-16012

main31453-10020iEL3#..MTM198605-198805

31454BOOT, CLUTCH MASTER CYLINDER

main31454-14010iEL3#..MTM198605-198805

main31454-24010iNL30..5F198605-198805

9017908038

main90179-08038

9412040800

main94120-40800

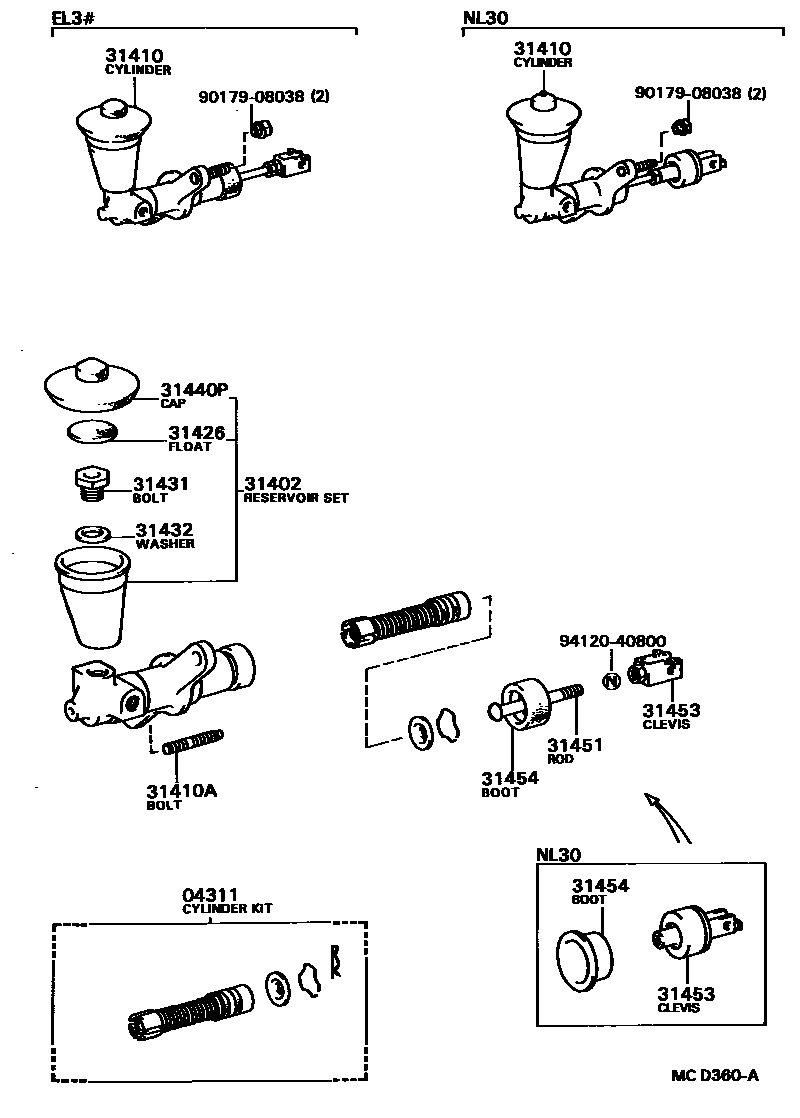

13 parts on this diagram · 1 diagram in section
