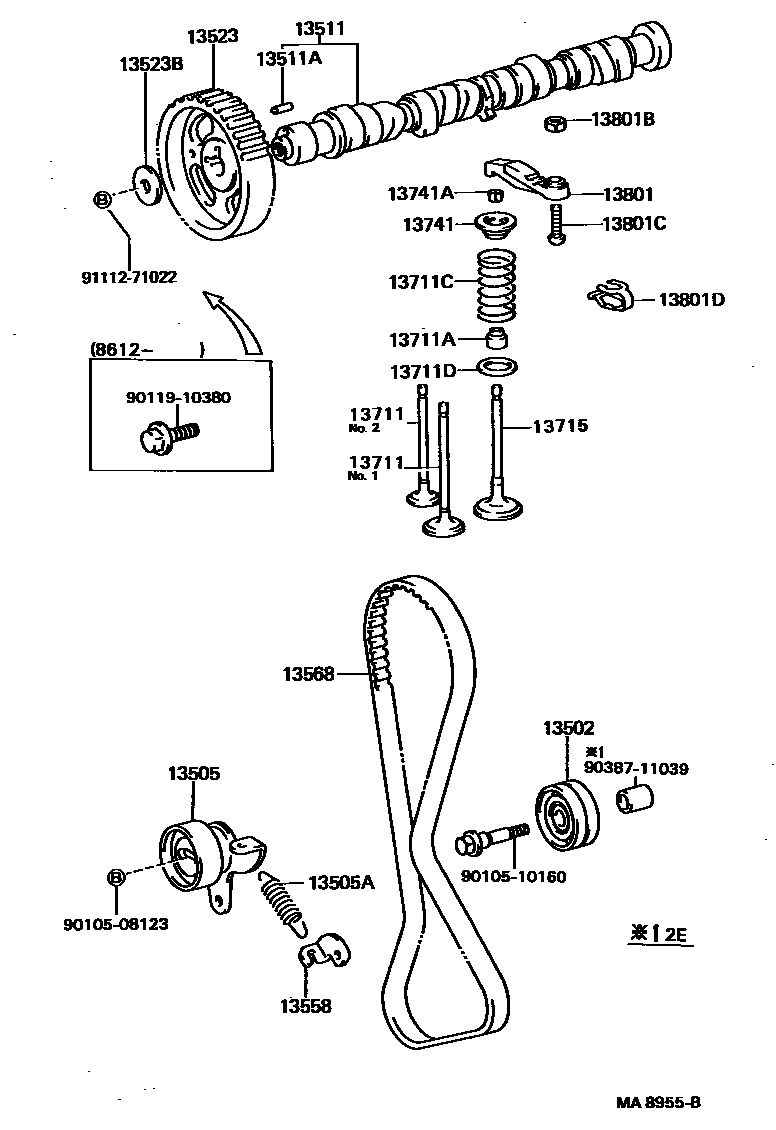

CAMSHAFT & VALVE

0001 1 0002 1

13502IDLER SUB-ASSY, TIMING BELT, NO.2

main13503-10011i2E..EL30198605-198805

main13503-11010i3E#..EL31198605-198805

13505IDLER SUB-ASSY, TIMING BELT, NO.1

main13505-11010i2E,3E#..EL3#198605-198805

sub13505-11011

main13505-55020i1NT..NL30198605-198805

13505ASPRING, TENSION(FOR IDLER)

main90506-18059i2E,3E#..EL3#198709-198805

sub90506-16050

main90506-19002i1NT..NL30198612-198805

main90506-20050i2E,3E#..EL3#198605-198704

main90506-23036i1NT..NL30198605-198612

13511CAMSHAFT

main13501-10010i2E,3E#..EL3#198605-198805

main13501-55010i1NT..NL30198605-198805

13511APIN, STRAIGHT(FOR CAMSHAFT KNOCK)

main90250-05121i2E,3E#..EL3#198605-198805

13523GEAR OR SPROCKET, CAMSHAFT TIMING

main13523-10040i2E..EL30198605-198805

main13523-11010i3E#..EL31198605-198805

13523BWASHER, PLATE(FOR TIMING GEAR)

main90201-10019i2E,3E#..EL3#198605-198612

13558BRACKET, SPRING(FOR IDLER)

main13558-11010i2E,3E#..EL3#198605-198805

13568BELT, TIMING

main13568-11030i3E#..EL31198605-198709

main13568-11031i3E#..EL31198709-198805

sub13568-11032

main13568-11050i2E..EL30198605-198705

main13568-11051i2E..EL30198705-198805

sub13568-11052

main13568-55010i1NT..NL30198605-198805

sub13568-59055

13711VALVE, INTAKE

main13711-10020×4i2E,3E#..EL3#198605-198805

NO.1

main13711-55010×4i1NT..NL30198605-198805

main13712-10010×4i2E..EL30198605-198805

NO.2

main13712-11020×4i3E#..EL31198605-198805

NO.2

13711ASEAL OR RING, O(FOR VALVE STEM OIL)

main90913-02062×8i1NT..NL30198605-198805

main90913-02071×12i2E,3E#..EL3#198605-198805

13711CSPRING, COMPRESSION(FOR OUTER)

main90501-35011×12i2E,3E#..EL3#198605-198805

13711DWASHER, PLATE(FOR VALVE SPRING SEAT)

main90201-19008×12i1NT..NL30198605-198805

13715VALVE, EXHAUST

main13715-10030×4i2E,3E#..EL3#198605-198805

main13715-55010×4i1NT..NL30198605-198805

13741RETAINER, VALVE SPRING

main13741-10020×12i1NT..NL30198605-198805

13741ALOCK, VALVE SPRING RETAINER

main90913-03021×24i1NT..NL30198605-198805

13801ARM SUB-ASSY, VALVE ROCKER, NO.1

main13811-10020×12i2E,3E#..EL3#198605-198711

main13811-10021×12i2E,3E#..EL3#198711-198805

13801BNUT, HEXAGON(FOR VALVE ADJUSTING)

main90170-07003×12i2E,3E#..EL3#198605-198803

main90170-07004×12i2E,3E#..EL3#198803-198805

13801CSCREW, VALVE ADJUSTING

main13788-10010×12i2E,3E#..EL3#198605-198803

sub13788-10012

main13788-10013×12i2E,3E#..EL3#198803-198805

13801DSPRING, COMPRESSION(FOR ROCKER ARM)

main13935-10010×12i2E,3E#..EL3#198605-198805

9010508123

main90105-08123

9010510160

main90105-10160

9011910380

main90119-10380

9038711039

main90387-11039

9111271022

main91112-71022

25 parts on this diagram · 2 diagrams in section
