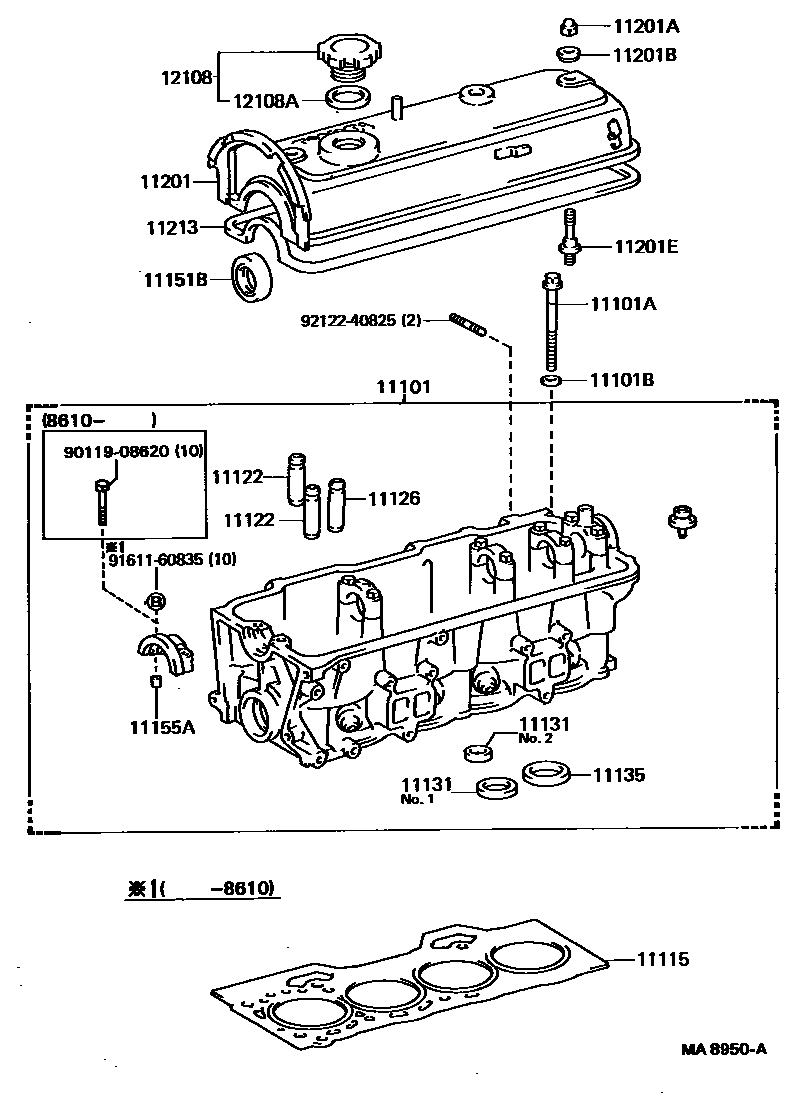

CYLINDER HEAD

0001 1 0002 1 0003 1

11101HEAD SUB-ASSY, CYLINDER

main11101-19146i2E..EL30..3DS..4F..TX198605-198805

*52

main11101-19156i2E..EL30198605-198805

main11101-19185i3ETE..EL31198609-198805

main11101-19195i3E..EL31198605-198805

sub11101-19196

sub12329-11020

sub17771-11080

sub17771-11120

sub78184-16050

main11101-55010i1NT..NL30198605-198805

sub11101-55040

11101ABOLT(FOR CYLINDER HEAD SET)

main90105-09002i2E,3E#..EL3#198605-198805

main90105-11022i1NT..NL30198605-198805

11101BWASHER, PLATE(FOR CYLINDER HEAD SET)

main90201-09015i2E,3E#..EL3#198605-198805

main90201-11016i1NT..NL30198605-198805

11115GASKET, CYLINDER HEAD

main11115-11010i2E..EL30198605-198805

main11115-11030i3ETE..EL31198609-198805

main11115-11060i2E,3E..EL3#198605-198705

sub11115-11010

main11115-55020-01i1NT..NL30198605-198805

MARK"1",MARK 1

sub11115-55H00

main11115-55020-02i1NT..NL30198605-198805

MARK"2",MARK 2

sub11115-55H00

main11115-55020-03i1NT..NL30198605-198805

MARK"3",MARK 3

sub11115-55H00

11122BUSH, INTAKE VALVE GUIDE

main11122-10040i2E,3E#..EL3#198605-198805

main11122-16020i1NT..NL30198605-198805

main11123-10040i2E,3E#..EL3#198605-198805

main11123-16020i1NT..NL30198605-198805

11126BUSH, EXHAUST VALVE GUIDE

main11122-10040i2E,3E#..EL3#198605-198805

main11122-16020i1NT..NL30198605-198805

main11123-10040i2E,3E#..EL3#198605-198805

main11123-16020i1NT..NL30198605-198805

11131SEAT, INTAKE VALVE

main11131-10020i2E,3E..EL3#198605-198609

sub11131-11010

main11131-11010i2E,3E#..EL3#198609-198805

main11132-10020i2E,3E..EL3#198605-198609

main11132-11010i2E,3E#..EL3#198609-198805

main11137-10010i2E..EL30198605-198805

main11137-11020i3E#..EL31198605-198805

main11138-10010i2E..EL30198605-198805

main11138-11020i3E#..EL31198605-198805

11135SEAT, EXHAUST VALVE

main11135-10020i2E..EL30198605-198805

sub11135-11010

main11135-11010i3E#..EL31198605-198805

main11136-10020i2E..EL30198605-198805

sub11136-11010

main11136-11010i3E#..EL31198605-198805

11151BSEAL, OIL(FOR CAMSHAFT SETTING)

main90311-35017i2E,3E#..EL3#198605-198805

main90311-38025i1NT..NL30198605-198805

11155APIN, RING W/HEAD

main90253-11021i2E,3E#..EL3#198605-198805

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-10010i2E,3E..EL3#198605-198805

main11201-11010i3ETE..EL31198609-198805

main11201-55010i1NT..NL30198605-198805

11201ANUT, CAP(FOR CYLINDER HEAD COVER)

main90176-06012i3ETE..EL31198609-198805

main90176-08007i2E,3E..EL3#198605-198805

11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)

main90210-06008i3ETE..EL31198609-198805

sub90210-06013

main90210-09001i2E,3E..EL3#198605-198805

sub90210-09019

11201EBOLT, STUD(FOR CYLINDER HEAD COVER SET)

main90109-08139i3ETE..EL31198609-198805

main90116-08190i2E,3E..EL3#198605-198805

11213GASKET, CYLINDER HEAD COVER

main11213-10010i2E,3E..EL3#198605-198805

sub11213-10011

main11213-11020i3ETE..EL31198609-198805

main11213-55010i1NT..NL30198605-198805

sub11213-55011

12108CAP SUB-ASSY, OIL FILLER

main12180-11020i2E,3E..EL3#198708-198805

sub12180-11021

main12180-13030i3ETE..EL31198609-198805

sub12180-55010

main12180-55010i1NT..NL30198605-198805

main12180-61010i2E,3E..EL3#198605-198708

sub12180-70020

12108AGASKET(FOR OIL FILLER CAP)

main12195-71020i2E,3E..EL3#198605-198805

main90430-37004i1NT..NL30198605-198805

main90430-37140i3ETE..EL31198609-198805

9011908620

main90119-08620

9161160835

main91611-60835

9212240825

main92122-40825

20 parts on this diagram · 3 diagrams in section
