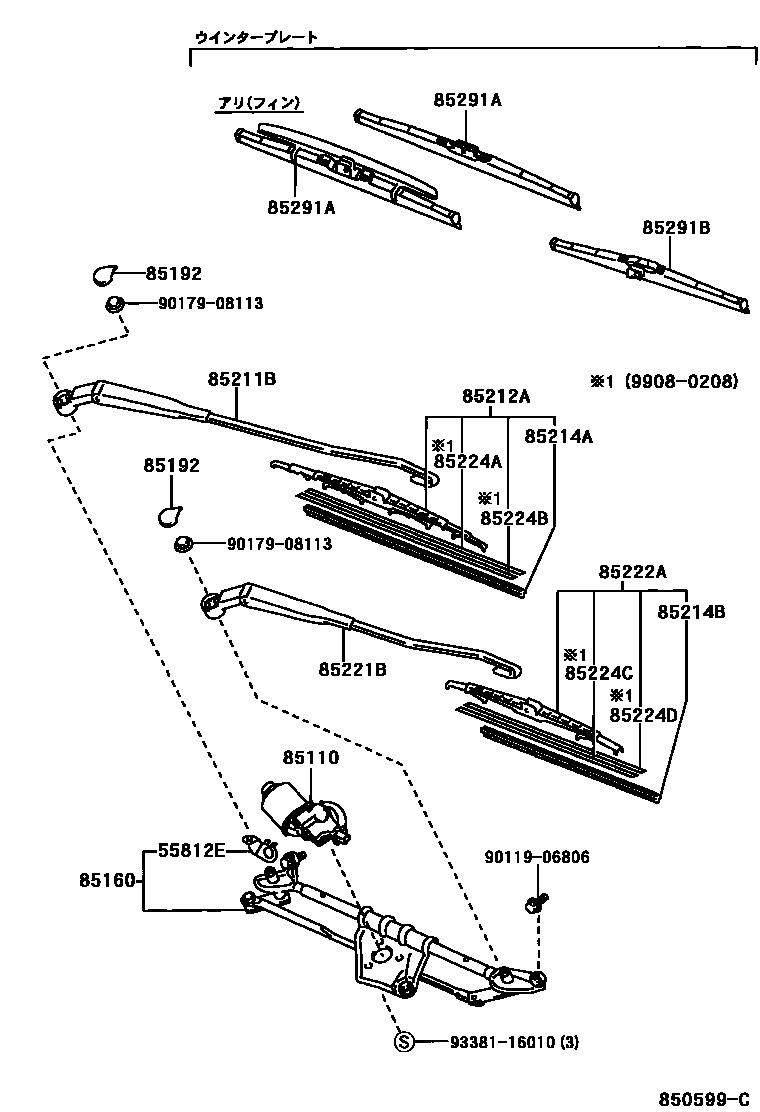

WINDSHIELD WIPER

55812EBRACKET, COWL VENTILATOR

main55812-52030iNCP1#,SCP11199908-200208

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-52020iSCP11;NCP1#..ATM;NCP1#..MTM..F200308

main85110-52030iNCP1#,SCP11200208-200308

85160LINK ASSY, WINDSHIELD WIPER

main85150-52020iNCP1#,SCP11199908-200208

main85150-52040iNCP1#,SCP11200208-200308

85192COVER, WINDSHIELD WIPER ARM

main85192-12800×2iNCP1#,SCP11200208-200308

85211BARM, FRONT WIPER, RH

main85211-52020iSCP11;NCP1#..ATM;NCP1#..MTM..F200308

85212ABLADE, FR WIPER, RH

main85212-26060iNCP1#,SCP11200207-200208

sub85212-36040

main85212-52020iNCP1#,SCP11199908-200207

main85212-52040iNCP1#,SCP11200312-200512

sub85212-52041

85214ARUBBER, WIPER, RH

main85214-20280iNCP1#,SCP11199908-200208

sub85214-48031

main85214-48030iNCP1#,SCP11200312-200511

sub85214-48031

85214BRUBBER, WIPER, LH

main85214-44080iNCP1#,SCP11199908-200208

main85214-68010iNCP1#,SCP11200312-200512

sub85214-68011

85221BARM, FRONT WIPER, LH

main85221-52020iNCP1#,SCP11199908-200208

85222ABLADE, FR WIPER, LH

main85222-52020iNCP1#,SCP11199908-200208

main85222-52140iNCP1#,SCP11200312-200512

sub85222-52141

85224APLATE, WIPER RUBBER BACKING, NO.1

main85224-20280iNCP1#,SCP11199908-200208

85224BPLATE, WIPER RUBBER BACKING, NO.2

main85224-20280iNCP1#,SCP11199908-200208

85224CPLATE, WIPER RUBBER BACKING, NO.3

main85224-44070iNCP1#,SCP11199908-200208

85224DPLATE, WIPER RUBBER BACKING, NO.4

main85224-44070iNCP1#,SCP11199908-200208

85291ABLADE, FRONT WIPER, WINTER, RH

main85291-22050iNCP1#,SCP11199908-200208

main85291-30050iSCP11;NCP1#..ATM;NCP1#..MTM..F200308

main85291-33060iNCP1#,SCP11200208-200308

85291BBLADE, FRONT WIPER, WINTER, LH

main85291-28120iNCP1#,SCP11200208-200308

main85291-32080iNCP1#,SCP11199908-200208

9011906806

main90119-06806

9017908113

main90179-08113

9338116010

main93381-16010

19 parts on this diagram · 1 diagram in section
