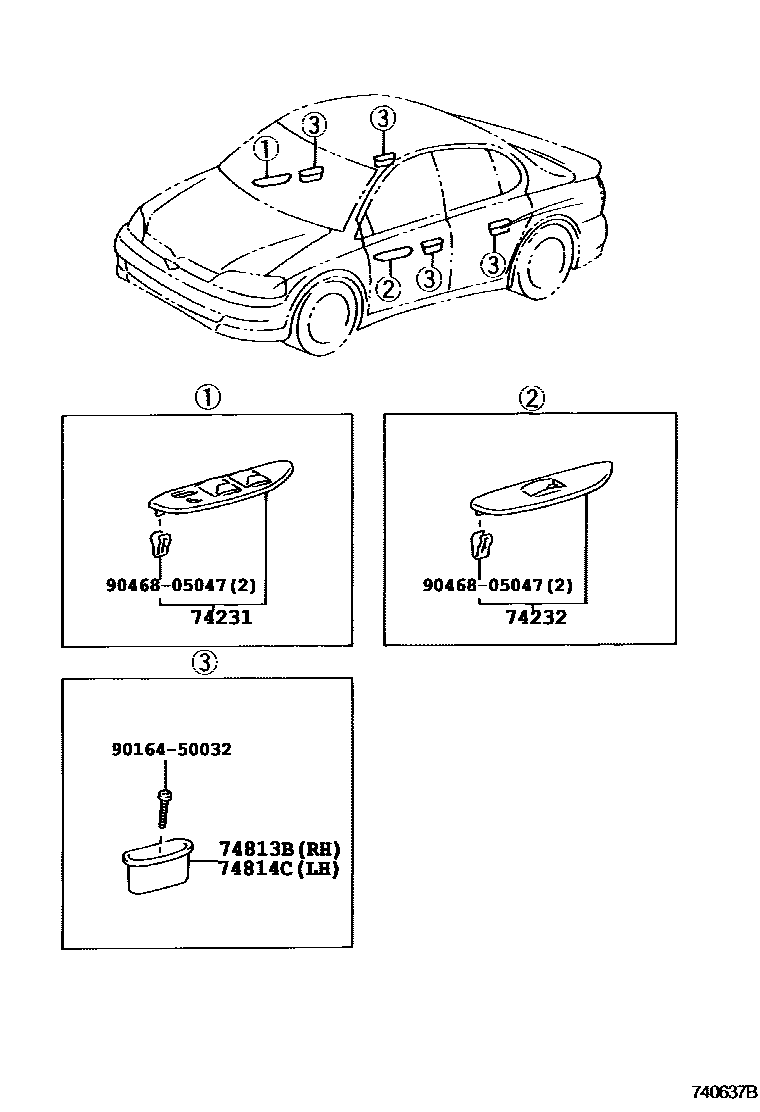

ARMREST & VISOR

0001 1 0002 1

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74230-52010iNCP12..X;NCP16,SCP11200008-200208

main74231-52010iNCP1#,SCP11199908-200208

main74231-52010-E0iNCP1#,SCP11200208-200512

SANDAL WOOD,TRIM4#

sub74231-52010

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-52030iNCP1#,SCP11199908-200208

main74232-52030-E0iNCP1#,SCP11200208-200512

SANDAL WOOD,TRIM4#

sub74232-52030

main74240-52010iNCP12..X;NCP16,SCP11200008-200208

74813BHANDLE, FRONT DOOR PULL, RH

main74813-52010-B1iNCP1#,SCP11199908-200208

AMETHYST,TRIM9#

sub74813-52010

main74813-52010-E0iNCP1#,SCP11200208-200512

SANDAL WOOD,TRIM4#

sub74813-52010

74814CHANDLE, FRONT DOOR PULL, LH

main74814-52010-B1iNCP1#,SCP11199908-200208

AMETHYST,TRIM9#

sub74814-52010

main74814-52010-E0iNCP1#,SCP11200208-200512

SANDAL WOOD,TRIM4#

sub74814-52010

9016450032

main90164-50032

9046805047

main90468-05047

6 parts on this diagram · 2 diagrams in section
