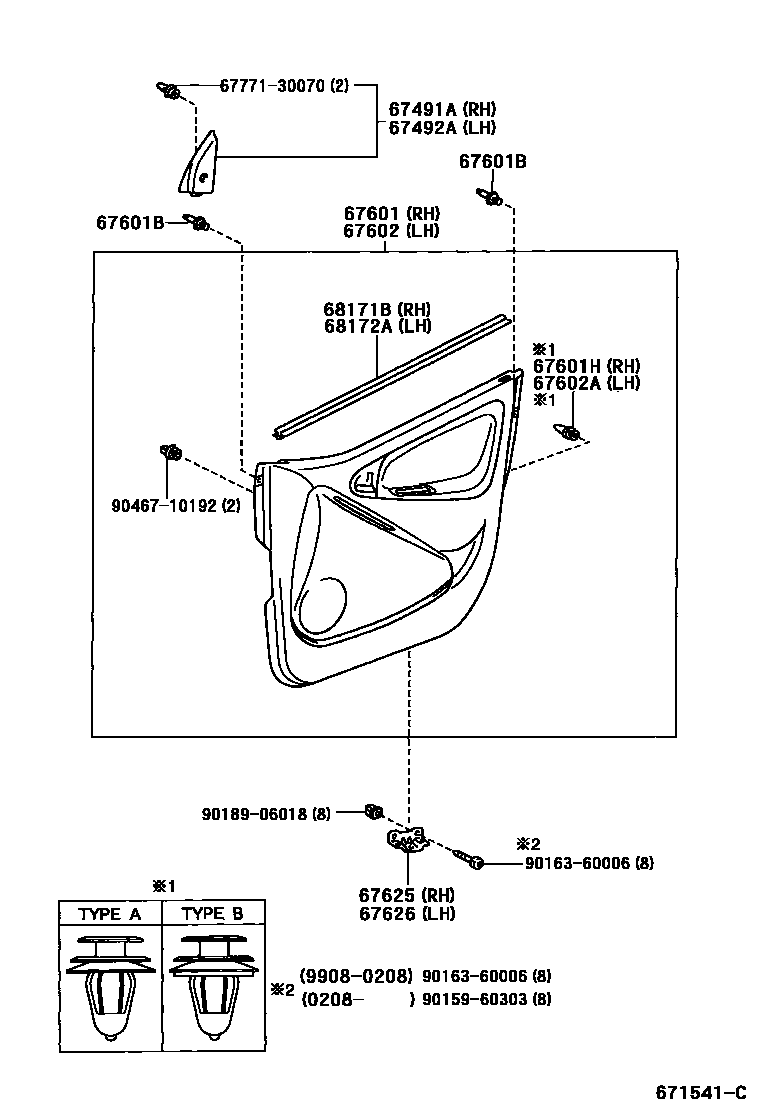

FRONT DOOR PANEL & GLASS

0001 1 0002 1 0003 1 0004 1

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-52010iNCP1#,SCP11199908-200208

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-52010iNCP1#,SCP11199908-200208

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-52590-B0iNCP1#..X199908-200208

main67610-52710-B1iSCP11199908-200208

main67610-52710-E0iSCP11200208-200304

main67610-52720-B1iSCP11199908-200208

main67610-52720-E0iSCP11200208-200304

main67610-52730-B1iSCP11199908-200208

main67610-52750-E0iSCP11200304-200511

main67610-52760-E0iSCP11200304-200511

main67610-52850-B0iNCP16..F199908-200208

main67610-52860-B0iNCP1#..F199908-200208

main67610-52860-E0iNCP1#..F200208-200511

main67610-5C050-E0iNCP12..X;NCP16,SCP11200208-200511

main67650-52260-B0iNCP12..X;NCP16,SCP11200008-200108

main67650-52380-B0iNCP12..X;NCP16,SCP11200108-200208

67601BCLIP(FOR FRONT DOOR TRIM BOARD)

main90467-07190-B1×6iNCP1#,SCP11199908-200208

AMETHYST,TRIM9#

main90467-07190-E1×6iNCP1#,SCP11200208-200512

SANDAL WOOD,TRIM4#

67601HRETAINER, DOOR TRIM, RH

main67771-12050×3iNCP1#,SCP11200208-200512

main67771-28020×3iNCP1#,SCP11200208-200512

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-52590-B0iNCP1#..X199908-200208

main67620-52680-B1iSCP11199908-200208

main67620-52700-B1iSCP11199908-200208

main67620-52700-E0iSCP11200208-200511

main67620-52710-B1iSCP11199908-200208

main67620-52710-E0iSCP11200208-200511

main67620-52840-B0iNCP16..F199908-200208

main67620-52850-B0iNCP1#..F199908-200208

main67620-52850-E0iNCP1#..F200208-200511

main67620-5C060-E0iNCP12..X;NCP16,SCP11200208-200511

main67660-52250-B0iNCP12..X;NCP16,SCP11200008-200108

main67660-52370-B0iNCP12..X;NCP16,SCP11200108-200208

67602ARETAINER, DOOR TRIM, LH

main67771-12050×3iNCP1#,SCP11200208-200512

main67771-28020×3iNCP1#,SCP11200208-200512

67625BRACKET, FRONT DOOR TRIM, RH

main67625-52010iNCP1#,SCP11199908-200208

67626BRACKET, FRONT DOOR TRIM, LH

main67625-52010iNCP1#,SCP11199908-200208

68171BWEATHERSTRIP, FRONT DOOR GLASS, INNER RH

main68171-52080iNCP1#,SCP11199908-200202

main68171-52081iNCP1#,SCP11200202-200208

68172AWEATHERSTRIP, FRONT DOOR GLASS, INNER LH

main68172-52080iNCP1#,SCP11199908-200202

main68172-52081iNCP1#,SCP11200202-200208

6777130070WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-30070

9015960303

main90159-60303

9016360006

main90163-60006

9018906018

main90189-06018

9046710192

main90467-10192

16 parts on this diagram · 4 diagrams in section
