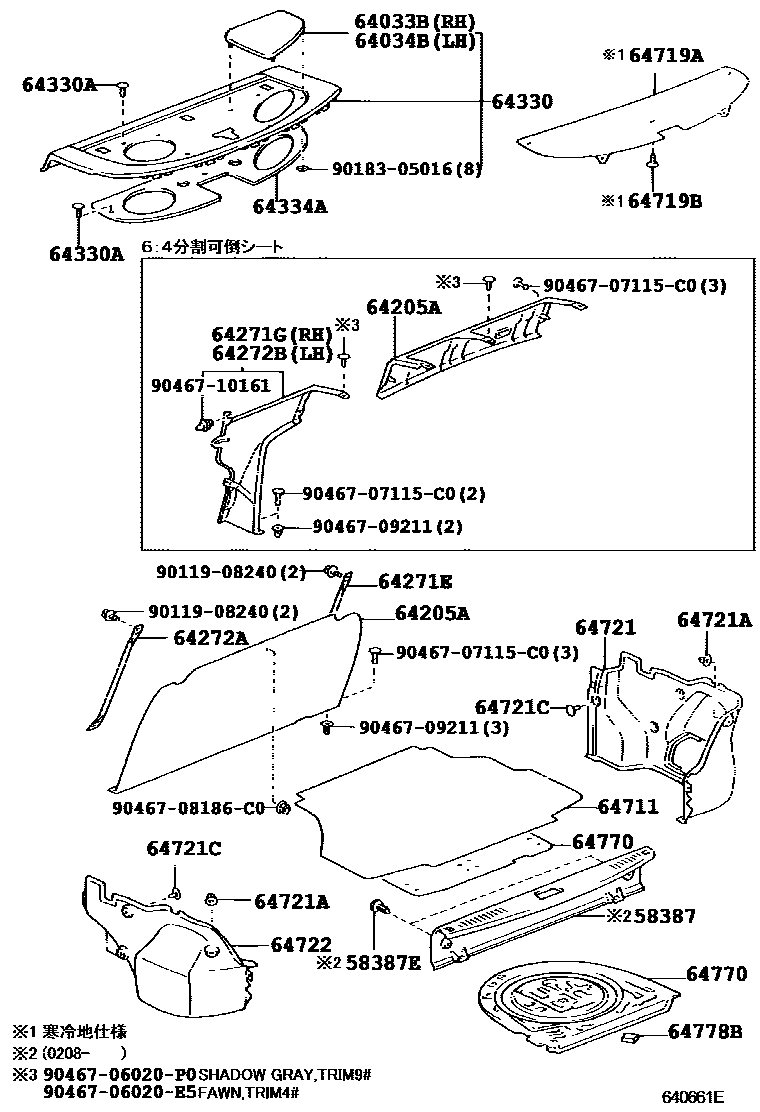

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

58387PLATE, REAR FLOOR FINISH

main58387-52010-B0iNCP1#,SCP11200208-200212

SHADOW GRAY,TRIM4#

main58387-52010-B1iNCP1#,SCP11200212-200512

DK.GRAY,TRIM4#

58387ECLIP(FOR REAR FLOOR FINISH PLATE)

main90467-08186-B4×2iNCP1#,SCP11200508-200511

DK.GRAY

main90467-08186-C0×2iNCP1#,SCP11200208-200508

BLACK,TRIM4#

64033BGRILLE SUB-ASSY, REAR SPEAKER, RH

main64383-52010-B0iNCP1#..X199908-200208

SHADOW GRAY,TRIM9#

main64383-52010-E0iNCP1#..X200208-200512

FAWN,TRIM4#

64034BGRILLE SUB-ASSY, REAR SPEAKER, LH

main64384-52010-B0iNCP1#..X199908-200208

SHADOW GRAY,TRIM9#

main64384-52010-E0iNCP1#..X200208-200512

FAWN,TRIM4#

64205ACOVER SUB-ASSY, ROOM PARTITION

main64275-52010iNCP12,SCP11..F199908-200004

main64275-52011iNCP12..F200208-200512

main64275-52020-B0iNCP12..X199908-200008

main64275-52020-B2iNCP12..X200212-200512

main64275-52030iNCP16199908-200004

main64275-52031iNCP16200208-200512

64271EPANEL, ROOM PARTITION

main64241-52010iNCP12,SCP11..F199908-200208

main64241-52020iNCP16199908-200208

64271GBOARD, ROOM PARTITION, RH

main64271-52010-B0iNCP12..X199908-200008

SHADOW GRAY,TRIM9#

main64271-52010-B2iNCP12..X200212-200512

DK.GRAY,TRIM4#

64272APANEL, ROOM PARTITION, LH

main64242-52010iNCP12,SCP11..F199908-200208

main64242-52020iNCP16199908-200208

64272BBOARD, ROOM PARTITION, LH

main64272-52010-B0iNCP12..X199908-200008

SHADOW GRAY,TRIM9#

main64272-52010-B2iNCP12..X200212-200512

DK.GRAY,TRIM40

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-52040-C0iNCP1#,SCP11..F199908-200208

main64330-52050-C0iNCP1#,SCP11..F199908-200208

BLACK,TRIM9#

main64330-52080-C0iNCP1#..X199908-200208

main64330-52090-C0iNCP12..X;NCP16,SCP11199908-200208

main64330-52150-E0iNCP1#..X200208-200512

FAWN,TRIM4#

main64330-52160-E0iNCP1#,SCP11..F200208-200512

FAWN,TRIM4#

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-06020-E5×5iNCP1#,SCP11200208-200512

FAWN,TRIM4#

main90467-06020-P0×5iNCP1#,SCP11199908-200208

SHADOW GRAY,TRIM9#

64334APAD, PACKAGE TRAY TRIM

main64334-52010iNCP1#..X199908-200208

main64334-52020iNCP1#,SCP11..F199908-200208

64711MAT, LUGGAGE COMPARTMENT FLOOR

main64711-52010-C0iNCP12,SCP11..F200208-200512

main64711-52020-C0iNCP12..X199908-199912

main64711-52021-C0iSCP11;NCP12..X200008-200208

main64711-52050-C0iNCP16199908-200208

main64711-52070-C0iNCP12..X200208-200512

BLACK,TRIM4#

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-52010-C0iNCP1#,SCP11199908-200208

BLACK,TRIM9#

64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)

main90467-08186-C0×5iNCP1#,SCP11199908-200208

BLACK,TRIM9#

64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH

main64710-52010-C0iNCP12,SCP11199908-200206

BLACK,TRIM9#

main64710-52011-C0iNCP12,SCP11200206-200208

BLACK,TRIM9#

main64710-52020-C0iNCP16199908-200206

BLACK,TRIM9#

main64710-52021-C0iNCP16200208-200512

BLACK,TRIM4#

64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)

main90467-06155×2iNCP1#,SCP11199908-200208

64721CCLIP(LUGGAGE COMPARTMENT)

main90467-08186-B4×10iNCP1#,SCP11200508-200511

DK.GRAY

main90467-08186-C0×10iNCP1#,SCP11199908-200208

BLACK,TRIM9#

64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH

main64722-52010-C0iNCP12,SCP11199908-200206

BLACK,TRIM9#

main64722-52011-C0iNCP12,SCP11200206-200208

BLACK,TRIM9#

main64722-52020-C0iNCP16199908-200206

BLACK,TRIM9#

main64722-52021-C0iNCP16200206-200208

BLACK,TRIM9#

64770COVER ASSY, SPARE WHEEL

main64770-52050iNCP16199908-200208

main64771-52070iNCP12,SCP11200208-200308

64778BPROTECTOR, SPARE WHEEL

main64778-16030×3iNCP16..ATM;NCP16..MTM..F200308

main64778-52020×4iNCP12,SCP11200208-200308

9011908240

main90119-08240

9018305016

main90183-05016

9046706020E5

main90467-06020E5

9046706020P0

main90467-06020P0

9046707115C0

main90467-07115C0

9046708186C0

main90467-08186C0

9046709211

main90467-09211

9046710161

main90467-10161

29 parts on this diagram · 1 diagram in section
