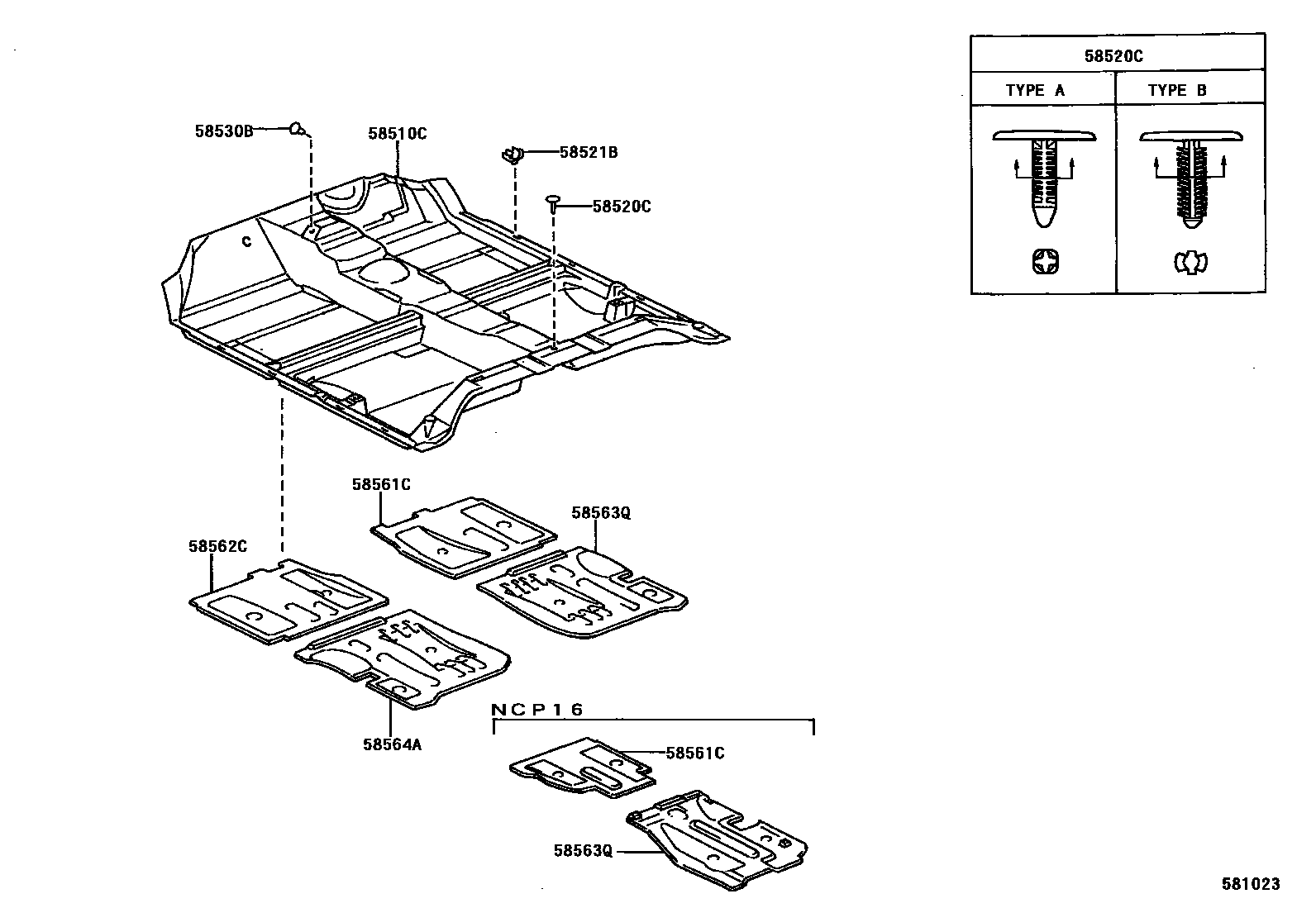

MAT & CARPET

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-52230-B0iNCP12,SCP11199908-200005

GRAY,TRIM9#

main58510-52231-B0iNCP12,SCP11200005-200105

GRAY,TRIM9#

main58510-52232-B0iNCP12,SCP11200105-200208

GRAY,TRIM9#

main58510-52233-A0iNCP12,SCP11200208-200212

IVORY,TRIM4#

main58510-52240-B0iNCP12,SCP11199908-200005

main58510-52241-B0iNCP12,SCP11200005-200105

main58510-52242-B0iNCP12,SCP11200105-200208

main58510-52243-A0iNCP12,SCP11200208-200212

main58510-52360-B0iNCP16199908-200005

GRAY,TRIM9#

main58510-52361-A0iNCP16200208-200212

IVORY,TRIM4#

main58510-52361-B0iNCP16200005-200208

GRAY,TRIM9#

main58510-52370-B0iNCP16199908-200005

main58510-52371-A0iNCP16..ATM;NCP16..MTM..F200208-200212

main58510-52371-B0iNCP16200005-200208

main58510-5C841-A0iNCP12,SCP11200212-200512

IVORY,TRIM4#

main58510-5C851-A0iNCP12,SCP11200212-200512

main58510-5D020-A0iNCP16200212-200512

IVORY,TRIM4#

main58510-5D030-A0iNCP16200212-200512

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-06016-P0iNCP1#,SCP11199908-200207

main90467-06016-P2iNCP1#,SCP11200207-200208

main90467-07049-B7iNCP1#,SCP11200207-200208

main90467-07049-P0iNCP1#,SCP11199908-200207

58521BHOOK, FLOOR CARPET

main58521-52010×8iSCP11;NCP1#..ATM;NCP1#..MTM..F200308

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-10091iSCP11;NCP1#..ATM;NCP1#..MTM..F200308

58561CSILENCER, FRONT FLOOR, NO.1

main58561-52010iNCP12,SCP11200208-200212

sub58561-52011

main58561-52020iNCP16199908-200208

sub58561-52021

main58561-52110iNCP12,SCP11200212-200308

sub58561-52111

58562CSILENCER, FRONT FLOOR, NO.2

main58562-52010iNCP1#,SCP11199908-200208

sub58562-52011

main58562-52070iNCP12,SCP11200212-200308

sub58562-52071

58563QSILENCER, FRONT FLOOR, NO.3

main58563-52010iNCP12,SCP11200208-200308

sub58563-52011

main58563-52020iNCP16..ATM;NCP16..MTM..F200308

sub58563-52021

58564ASILENCER, FRONT FLOOR, NO.4

main58564-52010iNCP1#,SCP11199908-200208

main58564-52040iNCP1#,SCP11200302-200308

sub58564-52041

8 parts on this diagram · 1 diagram in section
