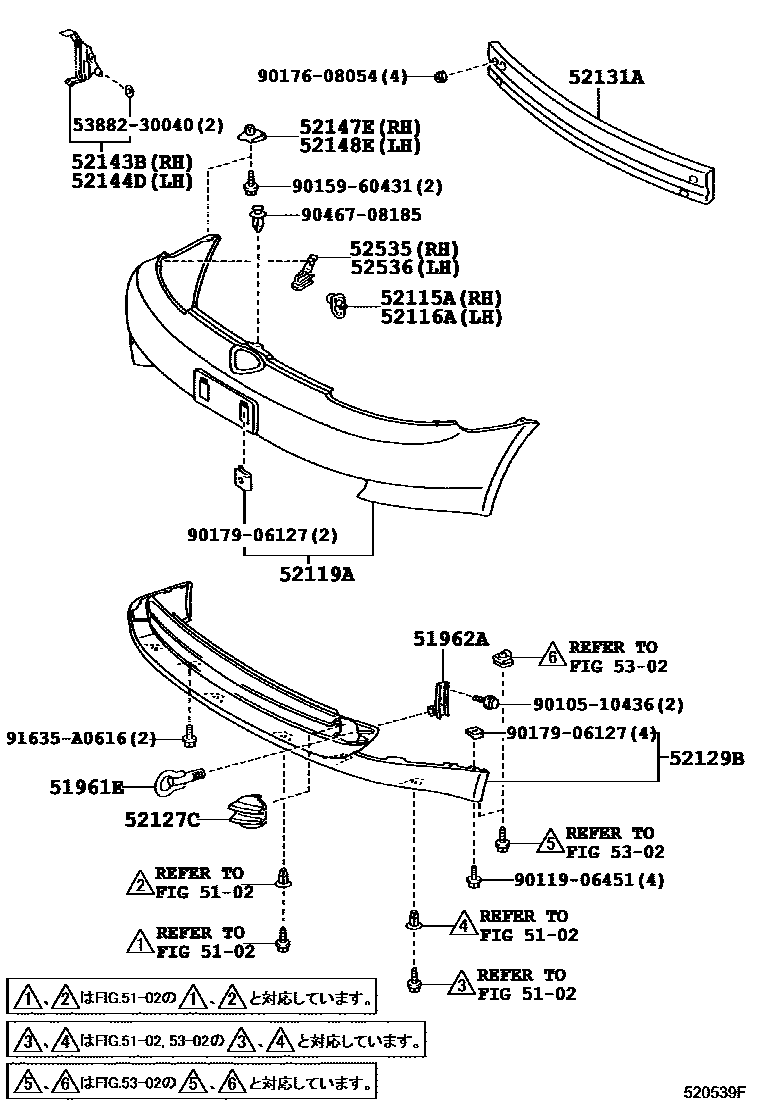

FRONT BUMPER & BUMPER STAY
5102
52115ASUPPORT, FRONT BUMPER SIDE, RH
52116ASUPPORT, FRONT BUMPER SIDE, LH
52127CCOVER, FRONT BUMPER HOLE
52131AREINFORCEMENT, FRONT BUMPER
52143BBRACKET, FRONT BUMPER SIDE
52144DBRACKET, FRONT BUMPER SIDE, LH
52147EBRACKET, FRONT BUMPER MOUNTING, RH
52148EBRACKET, FRONT BUMPER MOUNTING, LH
52535RETAINER, FRONT BUMPER SIDE, RH
52536RETAINER, FRONT BUMPER SIDE, LH
5302
5388230040PACKING, FRONT FENDER MAIN
main53882-30040
9010510436
main90105-10436
9011906451
main90119-06451
9015960431
main90159-60431
9017608054
main90176-08054
9017906127
main90179-06127
9046708185
main90467-08185
91635A0616
main91635-A0616
24 parts on this diagram · 2 diagrams in section
