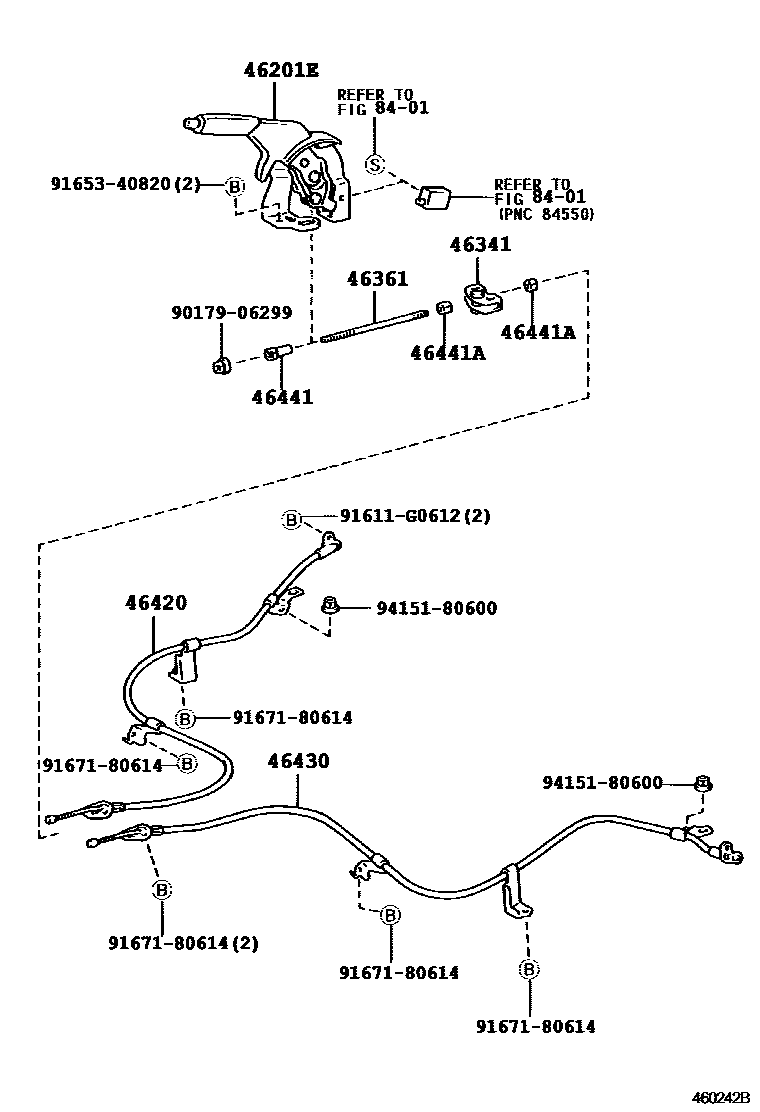

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-52010-B1iNCP1#,SCP11199908-200208

LT.AMETHYST,TRIM9#

sub46201-52010

main46201-52010-E0iNCP1#,SCP11..F200208-200512

SANDAL WOOD,TRIM4#

sub46201-52010

main46201-52050-E0iSCP11;NCP16..ATM;NCP12..ATM..X;NCP16..MTM..F200208-200308

sub46201-52050

46341EQUALIZER, PARKING BRAKE

main46341-52010iNCP1#,SCP11199908-200308

46361ROD, PARKING BRAKE PULL

main46361-52010iNCP1#,SCP11199908-200308

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-52020iNCP12,SCP11199908-200308

main46420-52030iNCP16199908-200302

sub46420-52031

main46420-52031iNCP16..ATM;NCP16..MTM..F200302-200308

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-52020iNCP12,SCP11199908-200308

main46430-52030iNCP16199908-200302

sub46430-52031

main46430-52031iNCP16200302-200308

46441NUT, WIRE ADJUSTING, NO.1

main46441-52010iNCP1#,SCP11199908-200308

46441ANUT, WIRE ADJUSTING, NO.2

main90170-06014iNCP1#,SCP11199908-200308

8401

9017906299

main90179-06299

91611G0612

main91611-G0612

9165340820

main91653-40820

9167180614

main91671-80614

9415180600

main94151-80600

13 parts on this diagram · 3 diagrams in section
