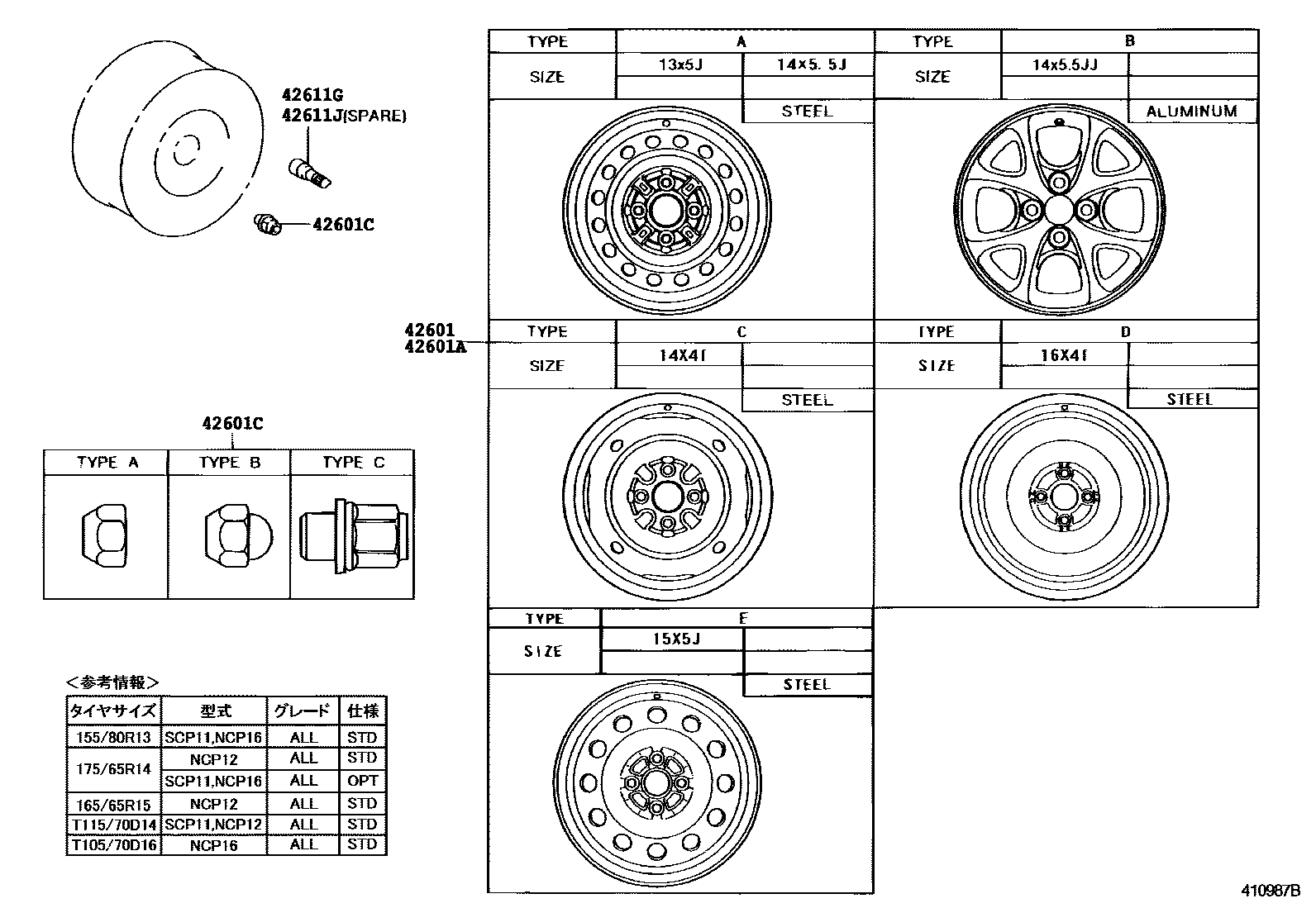

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

42601WHEEL, DISC

main42611-52010×4iSCP11200208-200511

sub42611-52011

main42611-52020×4iNCP16,SCP11199908-200208

sub42611-52021

main42611-52030×4iNCP12199908-200208

main42611-52040×4iNCP1#,SCP11199908-200208

sub42611-52590

main42611-52330×4iNCP12200208-200511

42601AWHEEL, DISC (FOR SPARE)

main42611-10321iNCP16199908-200208

sub42611-10322

main42611-16310iNCP12,SCP11199908-200208

sub42611-1A330

42601CNUT, HUB (FOR AXLE)

main90942-01007×16iNCP1#..MTM..X200208-200308

main90942-01021×16iSCP11199908-200208

main90942-01033×16iSCP11;NCP1#..ATM;NCP1#..MTM..F200208

main90942-01082×16iSCP11200308

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4iNCP1#,SCP11199908-200208

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iNCP1#,SCP11199908-200208

5 parts on this diagram · 3 diagrams in section
