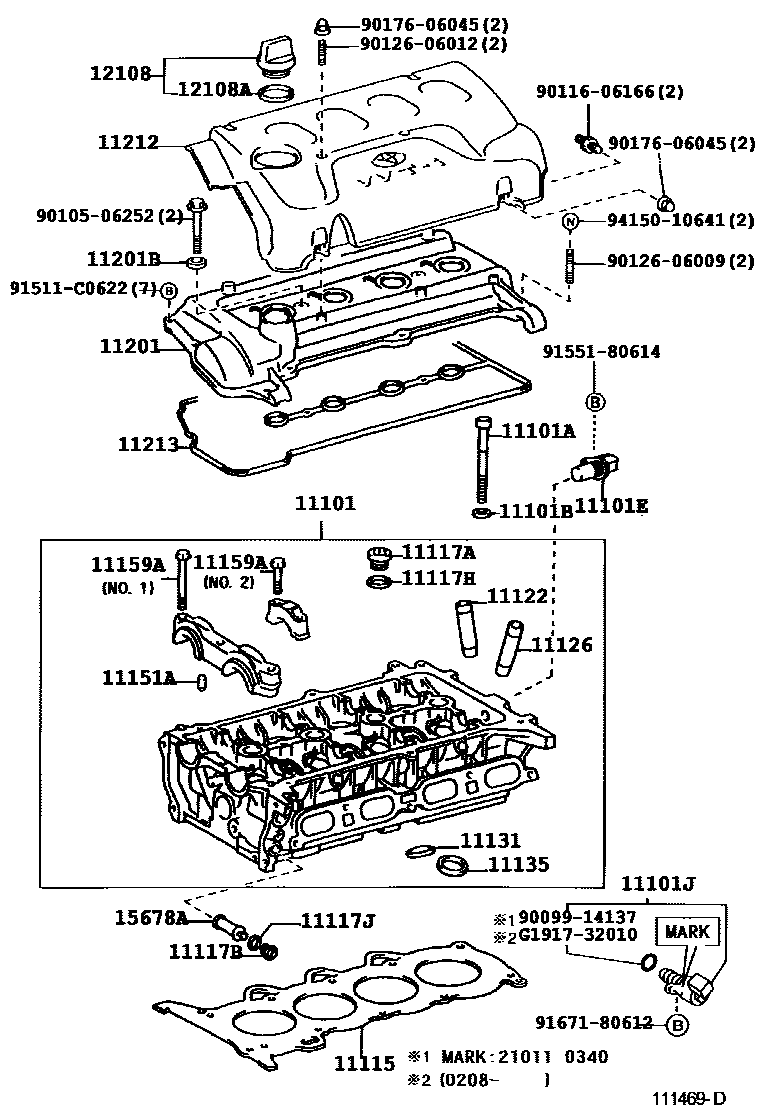

CYLINDER HEAD

0001 1 0002 1

11101HEAD SUB-ASSY, CYLINDER

main11101-21030i1NZFE,2NZFE..NCP1#199908-200002

main11101-21031i1NZFE,2NZFE..NCP1#200002-200208

main11101-21033i1NZFE,2NZFE..NCP1#..MTM..X200304-200308

sub11101-21034

main11101-23030i1SZFE..SCP11200208-200212

main11101-23060i1SZFE..SCP11200212-200401

main11101-23070i1SZFE..SCP11200401

11101ABOLT(FOR CYLINDER HEAD SET)

main90910-02126×10i1NZFE,2NZFE..NCP1#199908-200208

sub90910-02170

main90910-02137×10i1SZFE..SCP11199908-200001

main90910-02143×10i1SZFE..SCP11200001-200208

11101BWASHER, PLATE(FOR CYLINDER HEAD SET)

main90201-09024×10i1NZFE,2NZFE..NCP1#199908-200208

main90201-10136×10i1SZFE..SCP11199908-200208

11101ESENSOR, CAM POSITION

main90919-05024i1SZFE..SCP11199908-200208

11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL

main15330-21010i1NZFE,2NZFE..NCP1#199908-200112

main15330-21011i1NZFE,2NZFE..NCP1#200112-200208

11115GASKET, CYLINDER HEAD

main11115-21030i1NZFE,2NZFE..NCP1#199908-200208

main11115-21040i1NZFE,2NZFE..NCP1#200302-200308

main11115-21050i1NZFE,2NZFE..NCP1#200308

sub11115-21080

main11115-23030i1SZFE..SCP11200208

11117APLUG, W/HEAD TAPER SCREW, NO.1

main90341-14013i1SZFE..SCP11200208

main90341-20002i1NZFE,2NZFE..NCP1#..MTM..X200208-200308

11117BPLUG, W/HEAD TAPER SCREW, NO.2

main90341-14013i1NZFE,2NZFE..NCP1#199908-200208

11117HGASKET(FOR WATER HOLE)

main90430-20004i1NZFE,2NZFE..NCP1#..ATM;1NZFE,2NZFE..NCP1#..MTM..F200208

11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)

main90430-14009i1SZFE..SCP11199908-200208

11122BUSH, INTAKE VALVE GUIDE

main11122-21010×8i1SZFE..SCP11199908-200208

main11123-21010×8i1NZFE,2NZFE..NCP1#..ATM;1NZFE,2NZFE..NCP1#..MTM..F200208

11126BUSH, EXHAUST VALVE GUIDE

main11122-21010×8i1SZFE..SCP11199908-200208

main11123-21010×8i1SZFE..SCP11199908-200208

11131SEAT, INTAKE VALVE

main11131-21020×8i1NZFE,2NZFE..NCP1#..MTM..X200208-200308

sub11131-21021

main11131-23010×8i1SZFE..SCP11199908-200208

main11132-21020×8i1NZFE,2NZFE..NCP1#199908-200208

sub11132-21021

main11132-23010×8i1SZFE..SCP11199908-200208

11135SEAT, EXHAUST VALVE

main11135-21020×8i1NZFE,2NZFE..NCP1#199908-200208

sub11135-21041

main11135-21040×8i1NZFE,2NZFE..NCP1#200208

sub11135-21041

main11135-23020×8i1SZFE..SCP11199908-200208

main11135-23050×8i1SZFE..SCP11200212

main11136-21020×8i1NZFE,2NZFE..NCP1#199908-200208

main11136-21040×8i1NZFE,2NZFE..NCP1#200208

main11136-23020×8i1SZFE..SCP11199908-200208

main11136-23050×8i1SZFE..SCP11200212

11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)

main90250-06001×2i1NZFE,2NZFE..NCP1#199908-200208

11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)

main90109-06080×16i1NZFE,2NZFE..NCP1#..ATM;1NZFE,2NZFE..NCP1#..MTM..F200208

main90119-06884×20i1SZFE..SCP11199908-200208

main90119-08A29×3i1NZFE,2NZFE..NCP1#199908-200208

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-21050i1NZFE,2NZFE..NCP1#199908-200208

sub11201-21051

main11201-23070i1SZFE..SCP11200208

11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)

main90210-06013×2i1SZFE..SCP11200208

11212COVER, CYLINDER HEAD, NO.2

main11212-21010i1NZFE,2NZFE..NCP1#200208-200304

sub11212-21011

main11212-21030i1NZFE,2NZFE..NCP1#200304-200410

main11212-21031i1NZFE,2NZFE..NCP1#200410-200509

main11212-21032i1NZFE,2NZFE..NCP1#200510-200511

sub11212-21060

11213GASKET, CYLINDER HEAD COVER

main11213-21011i1NZFE,2NZFE..NCP1#199908-200208

main11213-23020i1SZFE..SCP11200208

12108CAP SUB-ASSY, OIL FILLER

main12180-21010i1NZFE,2NZFE..NCP1#200208

main12180-55010i1SZFE..SCP11199908-200208

12108AGASKET(FOR OIL FILLER CAP)

main90430-37140i1SZFE..SCP11199908-200208

15678AFILTER, OIL CONTROL VALVE

main15678-21010i1SZFE..SCP11199908-200208

9009914137

main90099-14137

9010506252

main90105-06252

9011606166

main90116-06166

9012606009

main90126-06009

9012606012

main90126-06012

9017606045

main90176-06045

91511C0622

main91511-C0622

9155180614

main91551-80614

9167180612

main91671-80612

9415010641

main94150-10641

G191732010

mainG1917-32010

34 parts on this diagram · 2 diagrams in section
