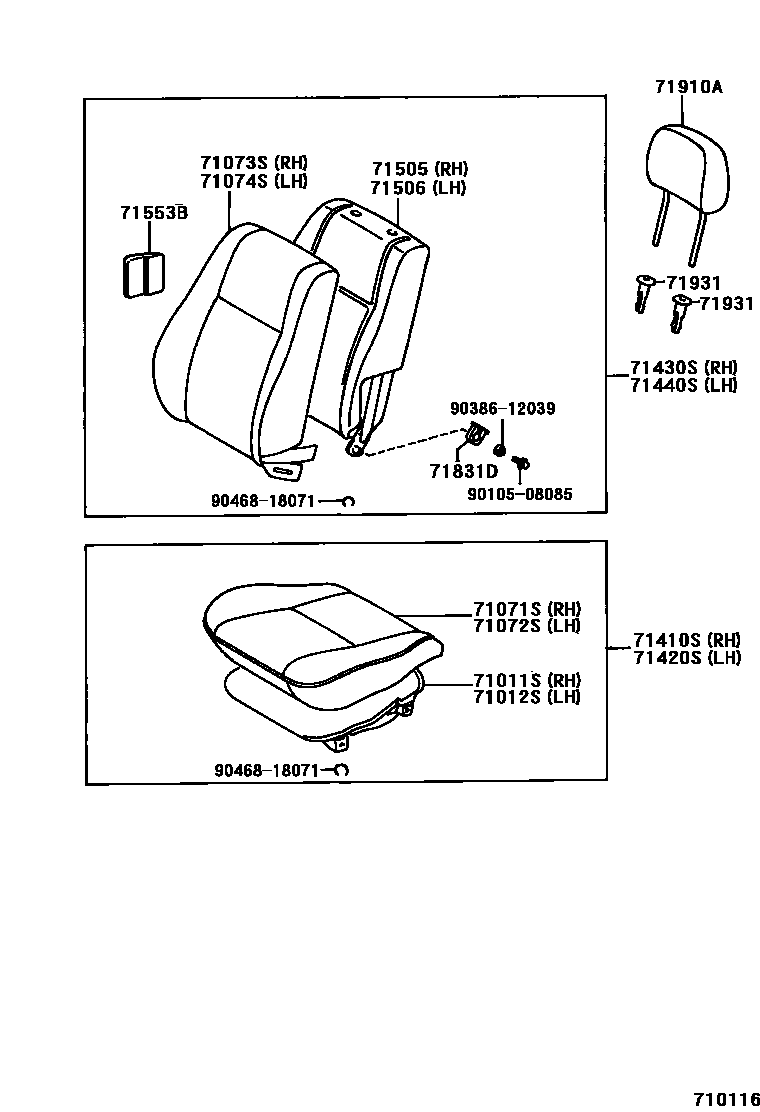

FRONT SEAT & SEAT TRACK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0008 1 0010 1 0011 1

71011SFRAME SUB-ASSY, FRONT SEAT CUSHION, RH

main71011-10220iEL51,53,NL50..AX,JOI,MOA199608

main71011-10230iEL51,53,NL50..AVE,AXX,CYN,SOP,VITX,VX199608

main71011-16140iEL55..AX,JOI,MOA199409-199608

main71011-16150iEL5#,NL50..AVE,AXX,CYN,SOP,VITX,VX199409-199608

71012SFRAME SUB-ASSY, FRONT SEAT CUSHION, LH

main71011-10220iEL51,53,NL50199608

main71012-16080iEL5#,NL50199409-199608

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71518-16130-B0iEL5#,NL50..AX,JOI,MOA199409-199608

BLUISH GRAY,TRIM1#

main71518-16140-B0iEL51..AVE,AXX,SOP199409-199608

BLUISH GRAY,TRIM1#

main71518-16150-B0iEL53,55,NL50..CYN,VITX,VX199409-199608

BLUISH GRAY,TRIM1#

main71518-16230-B0iEL51,55..AX,JOI,MOA199504-199608

main71518-16260-B0iEL51,NL50..3DS..(JOI,MOA)199608-199712

BLUISH GRAY,TRIM1#

sub71518-16260

main71518-16260-B3iEL51,53,NL50..AX,JOI,MOA199712-199907

BLUISH GRAY,TRIM1#

sub71518-16260

main71518-16260-E0iEL51,53,NL50..AX,JOI,MOA199712-199907

OAK,TRIM4#

sub71518-16260

main71518-16270-B0iEL51..AVE,AXX,SOP199608-199712

BLUISH GRAY,TRIM1#

main71518-16290-B0iEL53,NL50..CYN,VITX,VX199608-199712

BLUISH GRAY,TRIM1#

main71518-16320-B2iEL55..AX,JOI,MOA199608-199907

BLUISH GRAY,TRIM1#

sub71518-16320

main71518-16320-E0iEL55..AX,JOI,MOA199712-199907

OAK,TRIM4#

sub71518-16320

main71518-16330-B0iEL55..CYN,VITX,VX199608-199712

BLUISH GRAY,TRIM1#

main71518-16350-B0iEL51,53,NL50..4DS..(AX,JOI)199608-199712

BLUISH GRAY,TRIM1#

main71518-16380-B0iEL55..4DS..(AX,JOI)199608-199712

BLUISH GRAY,TRIM1#

main71518-16390-B0iEL51..AX,JOI,MOA199712-199907

main71518-16390-E0iEL51..AX,JOI,MOA199712-199907

main71518-16400-B0iEL51..AVE,AXX,SOP199712-199907

BLUISH GRAY,TRIM1#

main71518-16400-E0iEL51..AVE,AXX,SOP199712-199907

OAK,TRIM4#

main71518-16540-B0iEL53..CYN,VITX,VX199712-199907

BLUISH GRAY,TRIM1#

main71518-16540-E0iEL53..CYN,VITX,VX199712-199907

OAK,TRIM4#

main71518-16560-B0iEL55..AX,JOI,MOA199712-199907

main71518-16560-E0iEL55..AX,JOI,MOA199712-199907

main71518-16570-B0iEL55..CYN,VITX,VX199712-199907

BLUISH GRAY,TRIM1#

main71518-16570-E0iEL55..CYN,VITX,VX199712-199907

OAK,TRIM4#

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71518-16130-B0iEL5#,NL50..AX,JOI,MOA199409-199608

BLUISH GRAY,TRIM1#

main71518-16140-B0iEL51..AVE,AXX,SOP199409-199608

BLUISH GRAY,TRIM1#

main71518-16150-B0iEL53,55,NL50..CYN,VITX,VX199409-199608

BLUISH GRAY,TRIM1#

main71518-16230-B0iEL51,55..AX,JOI,MOA199504-199608

main71518-16280-B0iEL51..AVE,AXX,SOP199608-199712

BLUISH GRAY,TRIM1#

main71518-16300-B0iEL53..3DS199608-199712

BLUISH GRAY,TRIM1#

main71518-16300-B0iEL53,NL50..4DS..(VITX,VX)199703-199712

BLUISH GRAY

main71518-16320-B2iEL55..3DS..(JOI,MOA)199608-199712

BLUISH GRAY,TRIM1#

sub71518-16320

main71518-16330-B0iEL55..CYN,VITX,VX199608-199712

BLUISH GRAY,TRIM1#

main71518-16330-B0iEL55..3DS..(CYN,VX)199703-199712

BLUISH GRAY

main71518-16340-B0iEL51,NL50..3DS..(JOI,MOA)199608-199712

BLUISH GRAY,TRIM1#

main71518-16360-B0iEL51,53,NL50..4DS..(AX,JOI)199608-199712

BLUISH GRAY,TRIM1#

main71518-16380-B0iEL55..4DS..(AX,JOI)199608-199712

BLUISH GRAY,TRIM1#

main71528-16090-B0iEL51,53,NL50..AX,JOI,MOA199712-199907

BLUISH GRAY,TRIM1#

main71528-16090-E0iEL51,53,NL50..AX,JOI,MOA199712-199907

OAK,TRIM4#

main71528-16100-B0iEL51..AX,JOI,MOA199712-199907

main71528-16100-E0iEL51..AX,JOI,MOA199712-199907

main71528-16110-B0iEL51..AVE,AXX,SOP199712-199907

BLUISH GRAY,TRIM1#

main71528-16110-E0iEL51..AVE,AXX,SOP199712-199907

OAK,TRIM4#

main71528-16120-B0iEL53..CYN,VITX,VX199712-199907

BLUISH GRAY,TRIM1#

main71528-16120-E0iEL53..CYN,VITX,VX199712-199907

OAK,TRIM4#

main71528-16140-B0iEL55..AX,JOI,MOA199712-199907

BLUISH GRAY,TRIM1#

main71528-16140-E0iEL55..AX,JOI,MOA199712-199907

OAK,TRIM4#

main71528-16150-B0iEL55..AX,JOI,MOA199712-199907

main71528-16150-E0iEL55..AX,JOI,MOA199712-199907

main71528-16160-B0iEL55..CYN,VITX,VX199712-199907

BLUISH GRAY,TRIM1#

main71528-16160-E0iEL55..CYN,VITX,VX199712-199907

OAK,TRIM4#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-1G240-B0iEL5#,NL50..AX,JOI,MOA199409-199608

BLUISH GRAY,TRIM1#

main71073-1G380-B0iEL51,55..AX,JOI,MOA199504-199608

main71073-1G420-B0iEL51,NL50..3DS..(JOI,MOA)199608-199712

BLUISH GRAY,TRIM1#

sub71073-1G420

main71073-1G420-B4iEL51,53,NL50..AX,JOI,MOA199712

BLUISH GRAY,TRIM1#

sub71073-1G420

main71073-1G420-E0iEL51,53,NL50..AX,JOI,MOA199712

OAK,TRIM4#

sub71073-1G420

main71073-1G470-B0iEL55..3DS..(JOI,MOA)199608-199712

BLUISH GRAY,TRIM1#

sub71073-1G470

main71073-1G470-B2iEL55..AX,JOI,MOA199712

BLUISH GRAY,TRIM1#

sub71073-1G470

main71073-1G470-E0iEL55..AX,JOI,MOA199712

OAK,TRIM4#

sub71073-1G470

main71073-1G490-B0iEL51,53,NL50..4DS..(AX,JOI)199608-199712

BLUISH GRAY,TRIM1#

main71073-1G500-B0iEL55..4DS..(AX,JOI)199608-199712

BLUISH GRAY,TRIM1#

main71073-1G610-B0iEL51..AX,JOI,MOA199712

main71073-1G610-E0iEL51..AX,JOI,MOA199712

main71073-1G650-B0iEL55..AX,JOI,MOA199712

main71073-1G650-E0iEL55..AX,JOI,MOA199712

main71558-16120-B0iEL51..AVE,AXX,SOP199409-199608

BLUISH GRAY,TRIM1#

main71558-16130-B0iEL53,55,NL50..CYN,VITX,VX199409-199608

BLUISH GRAY,TRIM1#

main71558-16160-B0iEL51..AVE,AXX,SOP199608-199712

BLUISH GRAY,TRIM1#

sub71558-16160

main71558-16160-B5iEL51..AVE,AXX,SOP199712

BLUISH GRAY,TRIM1#

sub71558-16160

main71558-16160-E0iEL51..AVE,AXX,SOP199712

OAK,TRIM4#

sub71558-16160

main71558-16170-B0iEL53,NL50..CYN,VITX,VX199608-199712

BLUISH GRAY,TRIM1#

main71558-16180-B0iEL55..CYN,VITX,VX199608-199712

BLUISH GRAY,TRIM1#

main71558-16270-B0iEL53..CYN,VITX,VX199712

BLUISH GRAY,TRIM1#

main71558-16270-E0iEL53..CYN,VITX,VX199712

OAK,TRIM4#

main71558-16280-B0iEL55..CYN,VITX,VX199712

BLUISH GRAY,TRIM1#

main71558-16280-E0iEL55..CYN,VITX,VX199712

OAK,TRIM4#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71073-1G420-B0iEL51,NL50..3DS..(JOI,MOA)199608-199712

BLUISH GRAY,TRIM1#

sub71073-1G420

main71073-1G420-B4iEL51,53,NL50..AX,JOI,MOA199712

BLUISH GRAY,TRIM1#

sub71073-1G420

main71073-1G420-E0iEL51,53,NL50..AX,JOI,MOA199712

OAK,TRIM4#

sub71073-1G420

main71073-1G490-B0iEL51,53,NL50..4DS..(AX,JOI)199608-199712

BLUISH GRAY,TRIM1#

main71073-1G610-B0iEL51..AX,JOI,MOA199712

main71073-1G610-E0iEL51..AX,JOI,MOA199712

main71074-1G040-B0iEL5#,NL50..AX,JOI,MOA199409-199608

BLUISH GRAY,TRIM1#

main71074-1G150-B0iEL51,55..AX,JOI,MOA199504-199608

main71074-1G190-B0iEL55..3DS..(JOI,MOA)199608-199712

BLUISH GRAY,TRIM1#

sub71074-1G190

main71074-1G190-B2iEL55..AX,JOI,MOA199712

BLUISH GRAY,TRIM1#

sub71074-1G190

main71074-1G190-E0iEL55..AX,JOI,MOA199712

OAK,TRIM4#

sub71074-1G190

main71074-1G210-B0iEL55..4DS..(AX,JOI)199608-199712

BLUISH GRAY,TRIM1#

main71074-1G270-B0iEL55..AX,JOI,MOA199712

main71074-1G270-E0iEL55..AX,JOI,MOA199712

main71558-16160-B0iEL51..AVE,AXX,SOP199608-199712

BLUISH GRAY,TRIM1#

sub71558-16160

main71558-16160-B5iEL51..AVE,AXX,SOP199712

BLUISH GRAY,TRIM1#

sub71558-16160

main71558-16160-E0iEL51..AVE,AXX,SOP199712

OAK,TRIM4#

sub71558-16160

main71558-16170-B0iEL53,NL50..CYN,VITX,VX199608-199712

BLUISH GRAY,TRIM1#

main71558-16190-B0iEL55..CYN,VITX,VX199608-199712

BLUISH GRAY,TRIM1#

main71558-16270-B0iEL53..CYN,VITX,VX199712

BLUISH GRAY,TRIM1#

main71558-16270-E0iEL53..CYN,VITX,VX199712

OAK,TRIM4#

main71558-16290-B0iEL55..CYN,VITX,VX199712

BLUISH GRAY,TRIM1#

main71558-16290-E0iEL55..CYN,VITX,VX199712

OAK,TRIM4#

main71568-16090-B0iEL51..AVE,AXX,SOP199409-199608

BLUISH GRAY,TRIM1#

main71568-16100-B0iEL53,55,NL50..CYN,VITX,VX199409-199608

BLUISH GRAY,TRIM1#

71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71410-1G220-B0iEL5#,NL50..AX,JOI,MOA199409-199608

***,BLUISH GRAY,TRIM1#

main71410-1G230-B0iEL51..AVE,AXX,SOP199409-199608

***,BLUISH GRAY,TRIM1#

main71410-1G240-B0iEL53,55,NL50..CYN,VITX,VX199409-199608

***,BLUISH GRAY,TRIM1#

main71410-1G360-B0iEL51,NL50..3DS..(JOI,MOA)199608-199712

***,BLUISH GRAY,TRIM1#

sub71410-1G360

main71410-1G360-B3iEL51,53,NL50..AX,JOI,MOA199712-199907

***,BLUISH GRAY,TRIM1#

sub71410-1G360

main71410-1G360-E0iEL51,53,NL50..AX,JOI,MOA199712-199907

***,OAK,TRIM4#

sub71410-1G360

main71410-1G380-B0iEL51..AVE,AXX,SOP199608-199712

***,BLUISH GRAY,TRIM1#

main71410-1G390-B0iEL53,NL50..CYN,VITX,VX199608-199712

***,BLUISH GRAY,TRIM1#

main71410-1G400-B2iEL55..3DS..(JOI,MOA)199608-199907

***,BLUISH GRAY,TRIM1#

sub71410-1G400

main71410-1G400-E0iEL55..AX,JOI,MOA199712-199907

***,OAK,TRIM4#

sub71410-1G400

main71410-1G410-B0iEL55..CYN,VITX,VX199608-199712

***,BLUISH GRAY,TRIM1#

main71410-1G420-B0iEL51,53,NL50..4DS..(AX,JOI)199608-199712

***,BLUISH GRAY,TRIM1#

main71410-1G430-B0iEL55..4DS..(AX,JOI)199608-199712

***,BLUISH GRAY,TRIM1#

main71410-1G470-B0iEL51..AX,JOI,MOA199712-199907

main71410-1G470-E0iEL51..AX,JOI,MOA199712-199907

main71410-1G480-B0iEL51..AVE,AXX,SOP199712-199907

***,SHADOW GRAY,TRIM1#

main71410-1G480-E0iEL51..AVE,AXX,SOP199712-199907

***,OAK,TRIM4#

main71410-1G490-B0iEL53..CYN,VITX,VX199712-199907

***,SHADOW GRAY,TRIM1#

main71410-1G490-E0iEL53..CYN,VITX,VX199712-199907

***,OAK,TRIM4#

main71410-1G510-B0iEL55..AX,JOI,MOA199712-199907

main71410-1G510-E0iEL55..AX,JOI,MOA199712-199907

main71410-1G520-B0iEL55..CYN,VITX,VX199712-199907

***,SHADOW GRAY,TRIM1#

main71410-1G520-E0iEL55..CYN,VITX,VX199712-199907

***,OAK,TRIM4#

71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

main71420-1G180-B0iEL5#,NL50..AX,JOI,MOA199409-199608

***,BLUISH GRAY,TRIM1#

main71420-1G190-B0iEL51..AVE,AXX,SOP199409-199608

***,BLUISH GRAY,TRIM1#

main71420-1G200-B0iEL53,55,NL50..CYN,VITX,VX199409-199608

***,BLUISH GRAY,TRIM1#

main71420-1G260-B0iEL51..AVE,AXX,SOP199608-199712

***,BLUISH GRAY,TRIM1#

main71420-1G270-B0iEL53,NL50..CYN,VITX,VX199608-199712

***,BLUISH GRAY,TRIM1#

main71420-1G280-B0iEL55..CYN,VITX,VX199608-199712

***,BLUISH GRAY,TRIM1#

main71420-1G290-B0iEL55..3DS..(JOI,MOA)199608-199712

***,BLUISH GRAY,TRIM1#

main71420-1G300-B0iEL51,NL50..3DS..(JOI,MOA)199608-199712

***,BLUISH GRAY,TRIM1#

main71420-1G310-B0iEL51,53,NL50..4DS..(AX,JOI)199608-199712

***,BLUISH GRAY,TRIM1#

main71420-1G320-B0iEL55..4DS..(AX,JOI)199608-199712

***,BLUISH GRAY,TRIM1#

main71420-1G330-B0iEL51,53,NL50..AX,JOI,MOA199712-199907

***,SHADOW GRAY,TRIM1#

main71420-1G330-E0iEL51,53,NL50..AX,JOI,MOA199712-199907

***,OAK,TRIM4#

main71420-1G360-B0iEL51..AX,JOI,MOA199712-199907

main71420-1G360-E0iEL51..AX,JOI,MOA199712-199907

main71420-1G370-B0iEL51..AVE,AXX,SOP199712-199907

***,SHADOW GRAY,TRIM1#

main71420-1G370-E0iEL51..AVE,AXX,SOP199712-199907

***,OAK,TRIM4#

main71420-1G380-B0iEL53..CYN,VITX,VX199712-199907

***,SHADOW GRAY,TRIM1#

main71420-1G380-E0iEL53..CYN,VITX,VX199712-199907

***,OAK,TRIM4#

main71420-1G390-B0iEL55..AX,JOI,MOA199712-199907

***,SHADOW GRAY,TRIM1#

main71420-1G390-E0iEL55..AX,JOI,MOA199712-199907

***,OAK,TRIM4#

main71420-1G400-B0iEL55..AX,JOI,MOA199712-199907

main71420-1G400-E0iEL55..AX,JOI,MOA199712-199907

main71420-1G410-B0iEL55..CYN,VITX,VX199712-199907

***,SHADOW GRAY,TRIM1#

main71420-1G410-E0iEL55..CYN,VITX,VX199712-199907

***,OAK,TRIM4#

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71040-16010-B0iEL51,53,NL50..AX,JOI,MOA199712-199907

***,SHADOW GRAY,TRIM1#

main71040-16010-E0iEL51,53,NL50..AX,JOI,MOA199712-199907

***,OAK,TRIM4#

main71040-16020-B0iEL51..AX,JOI,MOA199712-199907

main71040-16020-E0iEL51..AX,JOI,MOA199712-199907

main71040-16030-B0iEL51..AVE,AXX,SOP199712-199907

***,SHADOW GRAY,TRIM1#

main71040-16030-E0iEL51..AVE,AXX,SOP199712-199907

***,OAK,TRIM4#

main71040-16040-B0iEL53..CYN,VITX,VX199712-199907

***,SHADOW GRAY,TRIM1#

main71040-16040-E0iEL53..CYN,VITX,VX199712-199907

***,OAK,TRIM4#

main71040-16050-B0iEL55..AX,JOI,MOA199712-199907

***,SHADOW GRAY,TRIM1#

main71040-16050-E0iEL55..AX,JOI,MOA199712-199907

***,OAK,TRIM4#

main71040-16060-B0iEL55..AX,JOI,MOA199712-199907

main71040-16060-E0iEL55..AX,JOI,MOA199712-199907

main71040-16070-B0iEL55..CYN,VITX,VX199712-199907

***,SHADOW GRAY,TRIM1#

main71040-16070-E0iEL55..CYN,VITX,VX199712-199907

***,OAK,TRIM4#

main71430-1G330-B0iEL5#,NL50..AX,JOI,MOA199409-199608

***,BLUISH GRAY,TRIM1#

main71430-1G340-B0iEL51..AVE,AXX,SOP199409-199608

***,BLUISH GRAY,TRIM1#

main71430-1G350-B0iEL53,55,NL50..CYN,VITX,VX199409-199608

***,BLUISH GRAY,TRIM1#

main71430-1G460-B0iEL51,NL50..3DS..(JOI,MOA)199608-199712

***,BLUISH GRAY,TRIM1#

main71430-1G470-B0iEL51..AVE,AXX,SOP199608-199712

***,BLUISH GRAY,TRIM1#

main71430-1G480-B0iEL53,NL50..CYN,VITX,VX199608-199712

***,BLUISH GRAY,TRIM1#

main71430-1G510-B0iEL55..3DS..(JOI,MOA)199608-199712

***,BLUISH GRAY,TRIM1#

main71430-1G520-B0iEL55..CYN,VITX,VX199608-199712

***,BLUISH GRAY,TRIM1#

main71430-1G530-B0iEL51,53,NL50..4DS..(AX,JOI)199608-199712

***,BLUISH GRAY,TRIM1#

main71430-1G540-B0iEL55..4DS..(AX,JOI)199608-199712

***,BLUISH GRAY,TRIM1#

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71040-16010-B0iEL51,53,NL50..AX,JOI,MOA199712-199907

***,SHADOW GRAY,TRIM1#

main71040-16010-E0iEL51,53,NL50..AX,JOI,MOA199712-199907

***,OAK,TRIM4#

main71040-16020-B0iEL51..AX,JOI,MOA199712-199907

main71040-16020-E0iEL51..AX,JOI,MOA199712-199907

main71040-16030-B0iEL51..AVE,AXX,SOP199712-199907

***,SHADOW GRAY,TRIM1#

main71040-16030-E0iEL51..AVE,AXX,SOP199712-199907

***,OAK,TRIM4#

main71040-16040-B0iEL53..CYN,VITX,VX199712-199907

***,SHADOW GRAY,TRIM1#

main71040-16040-E0iEL53..CYN,VITX,VX199712-199907

***,OAK,TRIM4#

main71070-16010-B0iEL55..AX,JOI,MOA199712-199907

***,SHADOW GRAY,TRIM1#

main71070-16010-E0iEL55..AX,JOI,MOA199712-199907

***,OAK,TRIM4#

main71070-16020-B0iEL55..AX,JOI,MOA199712-199907

main71070-16020-E0iEL55..AX,JOI,MOA199712-199907

main71070-16030-B0iEL55..CYN,VITX,VX199712-199907

***,SHADOW GRAY,TRIM1#

main71070-16030-E0iEL55..CYN,VITX,VX199712-199907

***,OAK,TRIM4#

main71430-1G460-B0iEL51,NL50..3DS..(JOI,MOA)199608-199712

***,BLUISH GRAY,TRIM1#

main71430-1G470-B0iEL51..AVE,AXX,SOP199608-199712

***,BLUISH GRAY,TRIM1#

main71430-1G480-B0iEL53,NL50..CYN,VITX,VX199608-199712

***,BLUISH GRAY,TRIM1#

main71430-1G530-B0iEL51,53,NL50..4DS..(AX,JOI)199608-199712

***,BLUISH GRAY,TRIM1#

main71440-1G280-B0iEL5#,NL50..AX,JOI,MOA199409-199608

***,BLUISH GRAY,TRIM1#

main71440-1G290-B0iEL51..AVE,AXX,SOP199409-199608

***,BLUISH GRAY,TRIM1#

main71440-1G300-B0iEL53,55,NL50..CYN,VITX,VX199409-199608

***,BLUISH GRAY,TRIM1#

main71440-1G390-B0iEL55..3DS..(JOI,MOA)199608-199712

***,BLUISH GRAY,TRIM1#

main71440-1G400-B0iEL55..CYN,VITX,VX199608-199712

***,BLUISH GRAY,TRIM1#

main71440-1G410-B0iEL55..4DS..(AX,JOI)199608-199712

***,BLUISH GRAY,TRIM1#

71505PAD SUB-ASSY, FRONT SEATBACK W/FRAME, RH

main71505-16120iEL51,53,NL50..AX,JOI,MOA199608

main71505-16130iEL5#,NL50..AX,JOI,MOA199409-199712

main71505-16180iEL55..AX,JOI,MOA199712

71506PAD SUB-ASSY, FRONT SEATBACK W/FRAME, LH

main71505-16120iEL51,53,NL50..AX,JOI,MOA199608

main71506-16050iEL55..AX,JOI,MOA199409-199712

main71506-16070iEL55..AX,JOI,MOA199712

71553BPAD, FRONT SEATBACK, B

main71553-16110iEL5#,NL50199409-199608

71831DCOVER, FRONT SEAT HINGE, RH

main71831-16010iEL55199409-199608

71910AHEADREST ASSY, FRONT SEAT

main71910-16330-B1iEL5#,NL50..AX,JOI,MOA199409-199608

BLUISH GRAY,TRIM1#

sub71910-16330

main71910-16330-B4iEL5#,NL50..AX,JOI,MOA199608-199907

BLUE GRAY,TRIM1#

sub71910-16330

main71910-16330-E0iEL5#,NL50..AX,JOI,MOA199712-199907

MD.OAK,TRIM4#

sub71910-16330

main71910-16460-B1iEL51..AVE,AXX,SOP199409-199608

BLUISH GRAY,TRIM1#

main71910-16470-B1iEL53,55,NL50..CYN,VITX,VX199409-199608

BLUISH GRAY,TRIM1#

main71910-16520-B0iEL51,55..AX,JOI,MOA199504-199608

main71910-16530-B2iEL51..AVE,AXX,SOP199608-199907

BLUISH GRAY,TRIM1#

sub71910-16530

main71910-16530-E0iEL51..AVE,AXX,SOP199712-199907

OAK,TRIM4#

sub71910-16530

main71910-16540-B1iEL53,55,NL50..CYN,VITX,VX199608-199907

BLUISH GRAY,TRIM1#

sub71910-16540

main71910-16540-E0iEL53,55..CYN,VITX,VX199712-199907

OAK,TRIM4#

sub71910-16540

main71910-16580-B0iEL51,55..AX,JOI,MOA199608-199712

sub71910-16580

main71910-16580-B1iEL51,55..AX,JOI,MOA199712-199907

sub71910-16580

main71910-16580-E0iEL51,55..AX,JOI,MOA199712-199907

sub71910-16580

71931SUPPORT, FRONT SEAT HEADREST

main71930-10070-B2iEL5#,NL50199409-199608

sub71930-32010

sub71930-10070

sub71930-12070

sub71930-32020

main71930-10070-B7iEL5#,NL50199608-199712

sub71930-32010

sub71930-10070

sub71930-12070

sub71930-32020

main71930-44010-B0iEL5#,NL50199712-199907

sub71930-44010

main71930-44010-E1iEL51..3DS..(JOI,MOA)199712-199907

sub71930-44010

main71930-44010-E3iEL5#,NL50199712-199907

sub71930-44010

main71931-10020-B2iEL5#,NL50199409-199608

sub71931-32010

sub71931-10020

sub71931-12040

main71931-10020-B6iEL5#,NL50199608-199712

sub71931-32010

sub71931-10020

sub71931-12040

main71931-32020-B2iEL5#,NL50199712-199907

sub71931-32020

main71931-32020-E0iEL51..3DS..(JOI,MOA)199712-199907

sub71931-32020

main71931-32020-E6iEL5#,NL50199712-199907

sub71931-32020

9010508085

main90105-08085

9038612039

main90386-12039

9046818071

main90468-18071

19 parts on this diagram · 9 diagrams in section
