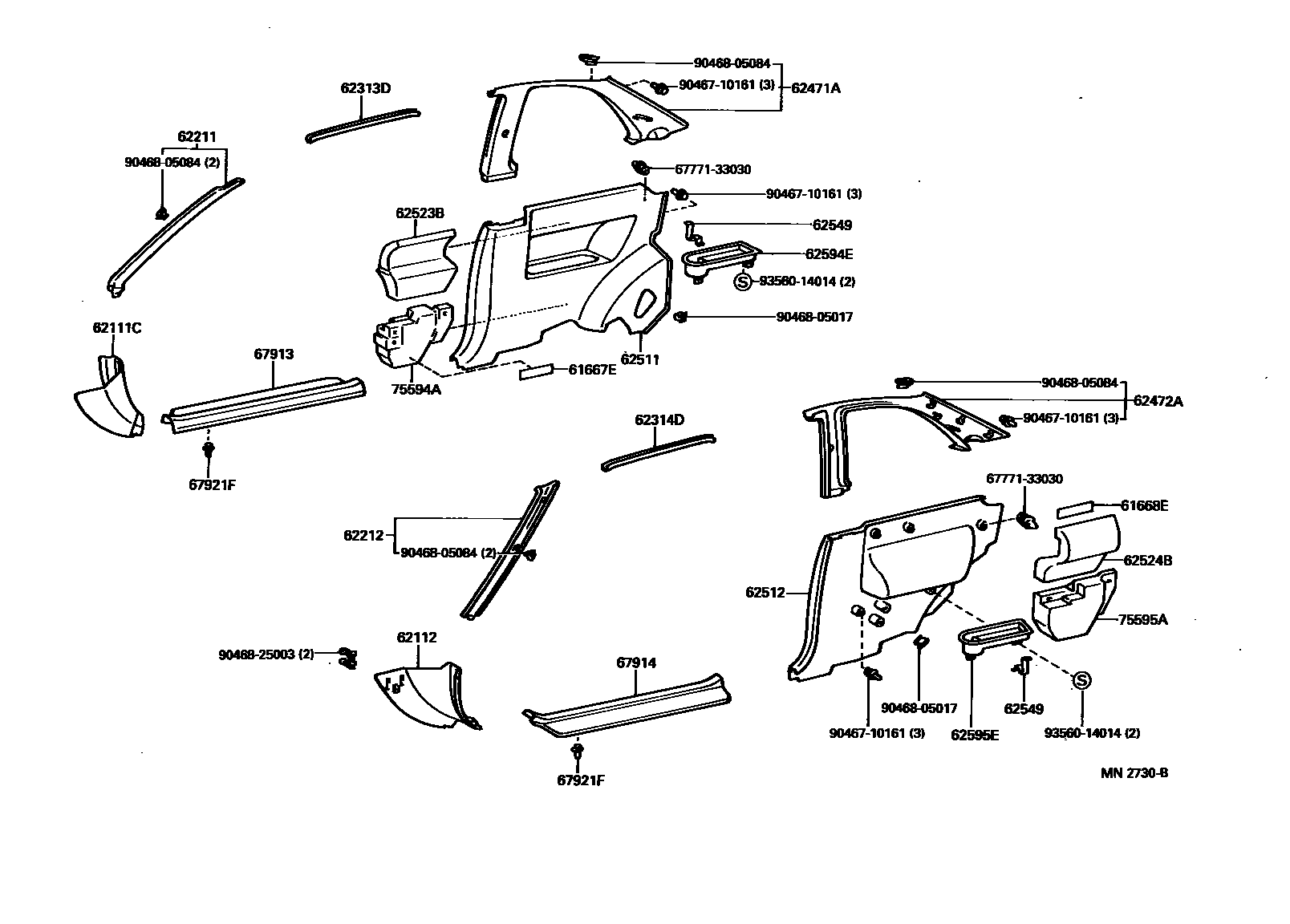

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0002 1

61667ESEAL, QUARTER PANEL, NO.1

main61667-16040×2iEL5#,NL50..3DS199409

61668ESEAL, QUARTER PANEL, NO.2

main61668-16040×4iEL5#,NL50..3DS199409

62111CBOARD, COWL SIDE TRIM, RH

main62111-16110-B0iEL5#,NL50199409-199510

BLUISH GRAY,TRIM1#

main62111-16120-B0iEL5#,NL50199608

SHADOW GRAY,TRIM1#

main62111-16120-B1iEL5#,NL50199510-199608

BLUISH GRAY,TRIM1#

main62111-16120-E0iEL5#,NL50199712

OAK,TRIM4#

62112BOARD, COWL SIDE TRIM, LH

main62112-16100-B0iEL5#,NL50199409-199608

BLUISH GRAY,TRIM1#

main62112-16100-B1iEL5#,NL50199608-199712

SHADOW GRAY,TRIM1#

main62112-16101-B1iEL5#,NL50199712

SHADOW GRAY,TRIM1#

main62112-16101-E0iEL5#,NL50199712

OAK,TRIM4#

62211GARNISH, FRONT PILLAR, RH

main62210-16010-B0iEL5#,NL50..3DS199409-199608

BLUISH GRAY,TRIM1#

main62210-16010-B1iEL5#,NL50..4DS199409-199712

LT.BLUISH GRAY,TRIM1#

main62210-16010-B2iEL5#,NL50..3DS199608-199712

SHADOW GRAY,TRIM1#

main62210-16050-B0iEL5#,NL50..4DS199712

LT.BLUISH GRAY,TRIM1#

main62210-16050-B1iEL5#,NL50..3DS199712

SHADOW GRAY,TRIM1#

main62210-16050-E0iEL5#,NL50..4DS199712

MD.OAK,TRIM4#

main62210-16050-E1iEL5#,NL50..3DS199712

OAK,TRIM4#

62212GARNISH, FRONT PILLAR, LH

main62220-16010-B0iEL5#,NL50..3DS199409-199608

BLUISH GRAY,TRIM1#

main62220-16010-B1iEL5#,NL50..4DS199409-199712

LT.BLUISH GRAY,TRIM1#

main62220-16010-B2iEL5#,NL50..3DS199608-199712

SHADOW GRAY,TRIM1#

main62220-16050-B0iEL5#,NL50..4DS199712

LT.BLUISH GRAY,TRIM1#

main62220-16050-B1iEL5#,NL50..3DS199712

SHADOW GRAY,TRIM1#

main62220-16050-E0iEL5#,NL50..4DS199712

MD.OAK,TRIM4#

main62220-16050-E1iEL5#,NL50..3DS199712

OAK,TRIM4#

62313DTRIM, FRONT DOOR OPENING, RH

main62313-16100-B0iEL5#,NL50..3DS199409-199608

BLUISH GRAY,TRIM1#

main62313-16100-B2iEL5#,NL50..3DS199608-199712

SHADOW GRAY,TRIM1#

main62313-16110-B0iEL5#,NL50..4DS199409-199712

LT.BLUISH GRAY,TRIM1#

main62313-16130-B1iEL5#,NL50..3DS199712

SHADOW GRAY,TRIM1#

main62313-16130-E1iEL5#,NL50..3DS199712

OAK,TRIM4#

main62313-16140-B0iEL5#,NL50..4DS199712

LT.BLUISH GRAY,TRIM1#

main62313-16140-E0iEL5#,NL50..4DS199712

MD.OAK,TRIM4#

62314DTRIM, FRONT DOOR OPENING, LH

main62313-16100-B0iEL5#,NL50..3DS199409-199608

BLUISH GRAY,TRIM1#

main62313-16100-B2iEL5#,NL50..3DS199608-199712

SHADOW GRAY,TRIM1#

main62313-16110-B0iEL5#,NL50..4DS199409-199712

LT.BLUISH GRAY,TRIM1#

main62313-16130-B1iEL5#,NL50..3DS199712

SHADOW GRAY,TRIM1#

main62313-16130-E1iEL5#,NL50..3DS199712

OAK,TRIM4#

main62313-16140-B0iEL5#,NL50..4DS199712

LT.BLUISH GRAY,TRIM1#

main62313-16140-E0iEL5#,NL50..4DS199712

MD.OAK,TRIM4#

62471AGARNISH, ROOF SIDE, INNER RH

main62470-16050-B0iEL5#,NL50..4DS199409

LT.BLUISH GRAY,TRIM1#

main62470-16050-E0iEL5#,NL50..4DS199712

MD.OAK,TRIM4#

main62471-16270-B0iEL5#,NL50..3DS199409-199712

BLUISH GRAY,TRIM1#

main62471-16270-B1iEL5#,NL50..3DS199712

SHADOW GRAY,TRIM1#

main62471-16270-E1iEL5#,NL50..3DS199712

OAK,TRIM4#

62472AGARNISH, ROOF SIDE, INNER LH

main62472-16270-B0iEL5#,NL50..3DS199409-199712

BLUISH GRAY,TRIM1#

main62472-16270-B1iEL5#,NL50..3DS199712-199907

SHADOW GRAY,TRIM1#

main62472-16270-E1iEL5#,NL50..3DS199712-199907

OAK,TRIM4#

main62480-16050-B0iEL5#,NL50..4DS199409-199907

LT.BLUISH GRAY,TRIM1#

main62480-16050-E0iEL5#,NL50..4DS199712-199907

MD.OAK,TRIM4#

62511BOARD, QUARTER INSIDE TRIM, RH

main62511-16220-B0iEL5#,NL50..3DS199409-199608

BLUISH GRAY,TRIM1#

main62511-16220-B1iEL5#,NL50..3DS199608-199712

SHADOW GRAY,TRIM1#

main62511-16221-B1iEL5#,NL50..3DS199712

SHADOW GRAY,TRIM1#

main62511-16221-E0iEL5#,NL50..3DS199712

OAK,TRIM4#

62512BOARD, QUARTER INSIDE TRIM, LH

main62512-16200-B0iEL5#,NL50..3DS199409-199608

BLUISH GRAY,TRIM1#

main62512-16200-B1iEL5#,NL50..3DS199608-199712

SHADOW GRAY,TRIM1#

main62512-16201-B1iEL5#,NL50..3DS199712

SHADOW GRAY,TRIM1#

main62512-16201-E0iEL5#,NL50..3DS199712

OAK,TRIM4#

62523BPAD, QUARTER TRIM CORNER, RH

main62523-16020iEL5#,NL50..3DS199409

62524BPAD, QUARTER TRIM CORNER, LH

main62524-16020iEL5#,NL50..3DS199409

62549REINFORCEMENT, QUARTER TRIM, NO.2

main62549-16040×2iEL5#,NL50..3DS199409

62594EPOCKET, QUARTER TRIM, RH

main62594-16040-B0iEL5#,NL50..3DS199409-199608

BLUISH GRAY,TRIM1#

main62594-16040-B1iEL5#,NL50..3DS199608

SHADOW GRAY,TRIM1#

main62594-16040-E0iEL5#,NL50..3DS199712

OAK,TRIM4#

62595EPOCKET, QUARTER TRIM, LH

main62595-16020-B0iEL5#,NL50..3DS199409-199608

BLUISH GRAY,TRIM1#

main62595-16020-B1iEL5#,NL50..3DS199608

SHADOW GRAY,TRIM1#

main62595-16020-E0iEL5#,NL50..3DS199712

OAK,TRIM4#

67913PLATE, FRONT DOOR SCUFF, RH

main67913-16090-B0iEL5#,NL50..4DS199409-199608

BLUISH GRAY,TRIM1#

main67913-16090-B1iEL5#,NL50..4DS199608

SHADOW GRAY,TRIM1#

main67913-16090-E0iEL5#,NL50..4DS199712

OAK,TRIM4#

main67913-16100-B0iEL5#,NL50..3DS199409-199608

BLUISH GRAY,TRIM1#

main67913-16100-B1iEL5#,NL50..3DS199608

SHADOW GRAY,TRIM1#

main67913-16100-E0iEL5#,NL50..3DS199712

OAK,TRIM4#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-16070-B0iEL5#,NL50..4DS199409-199608

BLUISH GRAY,TRIM1#

main67914-16070-B1iEL5#,NL50..4DS199608-199712

SHADOW GRAY,TRIM1#

main67914-16071-B1iEL5#,NL50..4DS199712-199907

SHADOW GRAY,TRIM1#

main67914-16071-E0iEL5#,NL50..4DS199712-199907

OAK,TRIM4#

main67914-16080-B0iEL5#,NL50..3DS199409-199608

BLUISH GRAY,TRIM1#

main67914-16080-B1iEL5#,NL50..3DS199608-199712

SHADOW GRAY,TRIM1#

main67914-16081-B1iEL5#,NL50..3DS199712-199907

SHADOW GRAY,TRIM1#

main67914-16081-E0iEL5#,NL50..3DS199712-199907

OAK,TRIM4#

67921FRETAINER, FRONT DOOR SCUFF PLATE

main67921-16020×8iEL5#,NL50..4DS199409

75594APAD, QUARTER GARNISH, RH

main75594-16010iEL5#,NL50..3DS199409

75595APAD, QUARTER GARNISH, LH

main75595-16010iEL5#,NL50..3DS199409

6777133030WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-33030

9046710161

main90467-10161

9046805017

main90468-05017

9046805084

main90468-05084

9046825003

main90468-25003

9356014014

main93560-14014

28 parts on this diagram · 2 diagrams in section
