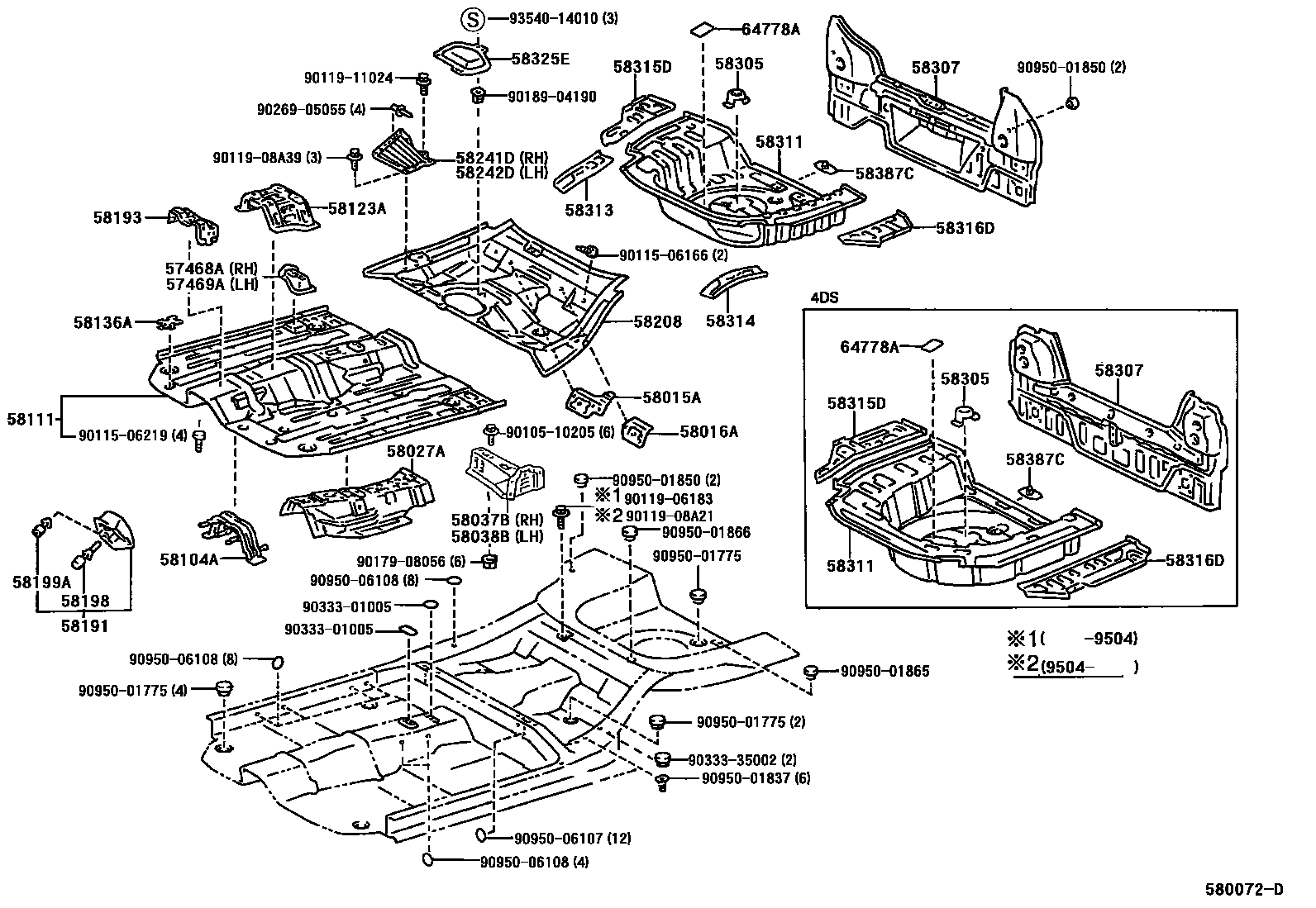

FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1

57468ABRACKET, FRONT SEAT, OUTSIDE, REAR RH

main57468-10030iEL5#,NL50199409

57469ABRACKET, FRONT SEAT, OUTSIDE, REAR LH

main57469-10030iEL5#,NL50199409

58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH

main58015-10020iEL51,53,NL50199409-199504

main58015-16050iEL51,53,NL50199504

58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH

main58016-10020iEL51,53,NL50199409

58027AREINFORCE SUB-ASSY, SEAT BELT ANCHOR

main58027-16081iEL55199409

main58027-16090iEL51,53,NL50199409-199508

sub58027-16091

main58027-16091iEL51,53,NL50199508

58037BREINFORCE, CENTER PILLAR TO FLOOR, RH

main58037-16010iEL51,53,NL50..3DS199712

main58037-16020iEL55..3DS199712

58038BREINFORCE, CENTER PILLAR TO FLOOR, LH

main58038-16010iEL51,53,NL50..3DS199712

main58038-16020iEL55..3DS199712

58104ABRACKET SUB-ASSY, CATALYTIC CONVERTER SUPPORT

main58104-16011iEL51,53,NL50199409-199508

main58104-16020iEL51,53199608

main58277-10020iEL55199409

58111PAN, FRONT FLOOR

main58111-16900iEL51,53,NL50199409-199508

sub58111-16902

main58111-16901iEL55199409-199608

main58111-16902iEL51,53,NL50199508-199608

sub58111-16903

main58111-16903iEL51,53,NL50199608

58123ASUPPORT, SHIFT & SELECT LEVER

main58123-10050iEL5#,NL50199409-199712

main58123-16050iEL5#,NL50199608

58136ACOVER, FRONT FLOOR SERVICE HOLE

main58136-12030iEL5#,NL50199409

58191FOOTREST, FRONT FLOOR

main58191-16070iEL55;EL51,53,NL50..AVE,AXX,CYN,SOP,VITX,VX199409

58193BRACKET, INSTRUMENT PANEL BRACE MOUNTING

main58193-16040iEL5#,NL50199409-199712

main58193-16060iEL5#,NL50199712

58198CLIP, FOOTREST

main58198-16030iEL55;EL51,53,NL50..AVE,AXX,CYN,SOP,VITX,VX199409

58199ACLIP, FOOTREST, NO.2

main58199-16020iEL55;EL51,53,NL50..AVE,AXX,CYN,SOP,VITX,VX199409

58208PAN, CENTER FLOOR

main58211-16081iEL55199409-199712

main58211-16091iEL51,53,NL50199409

main58211-16100iEL55..3DS199712

sub58211-16081

58241DGUSSET, WHEELHOUSE INNER, FRONT RH

main58241-16010iEL5#,NL50..4DS199409

58242DGUSSET, WHEELHOUSE INNER, FRONT LH

main58242-16010iEL5#,NL50..4DS199409

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58305-10011iEL51,53,NL50199409

main58351-10030iEL55199409

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-16400iEL5#,NL50..3DS199409

main58307-16410iEL5#,NL50..4DS199409

58311PAN, REAR FLOOR

main58311-10192iEL51,53,NL50..3DS199409-199601

sub58311-10193

main58311-10193iEL51,53,NL50..3DS199601

main58311-10200iEL55..3DS199409-199601

sub58311-10201

main58311-10201iEL55..3DS199601

sub58311-46010

sub90333-30002

main58311-16160iEL51,53,NL50..4DS199409

main58311-16170iEL55..4DS199409

sub58311-16171

sub90333-30002

58313PANEL, REAR FLOOR SIDE, RH

main58313-16030iEL51,53,NL50199409

58314PANEL, REAR FLOOR SIDE, LH

main58314-16090iEL51,53,NL50199409

58315DEXTENSION, REAR FLOOR PAN, RH

main58315-16050iEL5#,NL50..4DS199409

main58315-16060iEL5#,NL50..3DS199409

58316DEXTENSION, REAR FLOOR PAN, LH

main58316-16070iEL5#,NL50..4DS199409

main58316-16080iEL5#,NL50..3DS199409

58325ECOVER, REAR FLOOR SERVICE HOLE

main58031-16020iEL51,53,NL50199409

main58325-10040iEL55199409

58387CPLATE, REAR FLOOR FINISH

main58387-10010iEL5#,NL50199409

64778APROTECTOR, SPARE WHEEL

main64778-10020iEL55199409

main64778-16020iEL51,53,NL50199409-199508

main64778-16030iEL51,53,NL50199508-199708

9010510205

main90105-10205

9011506166

main90115-06166

9011506219

main90115-06219

9011906183

main90119-06183

9011908A21

main90119-08A21

9011908A39

main90119-08A39

9011911024

main90119-11024

9017908056

main90179-08056

9018904190

main90189-04190

9026905055

main90269-05055

9033301005

main90333-01005

9033335002

main90333-35002

9095001775

main90950-01775

9095001837

main90950-01837

9095001850

main90950-01850

9095001865

main90950-01865

9095001866

main90950-01866

9095006107

main90950-06107

9095006108

main90950-06108

9354014010

main93540-14010

48 parts on this diagram · 2 diagrams in section
