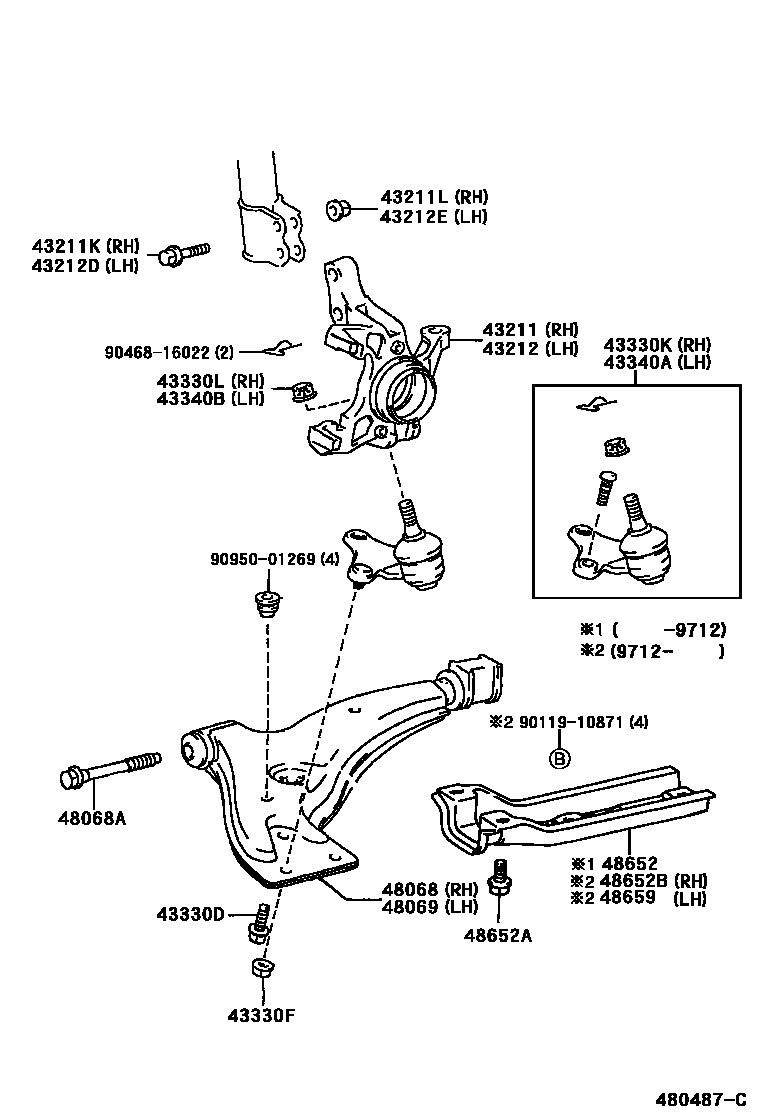

FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0002 1

43211KNUCKLE, STEERING, RH

main43211-16040iEL51..AX,JOI,MOA199409-199704

sub43211-16100

main43211-16050iEL51,53,NL50199409-199505

sub43211-16051

sub90389-16021

main43211-16051iEL51,53,NL50199505-199704

sub43211-46010

main43211-16060iEL55199409-199608

sub43211-16110

main43211-16070iEL55199409-199505

sub43211-16071

sub90389-16021

main43211-16071iEL55199505-199704

sub43211-46020

main43211-16100iEL51..AX,JOI,MOA199704

sub43211-59025

main43211-46010iEL51,53,NL50199704

sub43211-59025

main43211-46020iEL55199704

sub43211-59035

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-15001iEL5#,NL50199409-199608

main90105-15004iEL5#,NL50199409

main90105-15005iEL5#,NL50199409

main90105-15006iEL5#,NL50199409

main90105-15012iEL5#,NL50199608

43211LNUT (FOR STEERING KNUCKLE RH)

main90179-15001iEL5#,NL50199507-199608

main90179-15006iEL5#,NL50199608

main90179-15007iEL5#,NL50199409-199507

sub90179-15001

43212KNUCKLE, STEERING, LH

main43212-16040iEL51,53,NL50199409-199704

sub43212-16100

main43212-16050iEL51,53,NL50199409-199505

sub43212-16051

sub90389-16021

main43212-16051iEL51,53,NL50199505-199704

sub43212-46010

main43212-16060iEL55199409-199608

sub43212-16110

main43212-16070iEL55199409-199505

sub43212-16071

sub90389-16021

main43212-16071iEL55199505-199704

sub43212-46020

main43212-16100iEL51..AX,JOI,MOA199704

sub43212-59025

main43212-46010iEL51,53,NL50199704

sub43212-59025

main43212-46020iEL55199704

sub43212-59035

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-15001iEL5#,NL50199409-199608

main90105-15004iEL5#,NL50199409

main90105-15005iEL5#,NL50199409

main90105-15006iEL5#,NL50199409

main90105-15012iEL5#,NL50199608

43212ENUT (FOR STEERING KNUCKLE LH)

main90179-15001iEL5#,NL50199507-199608

main90179-15006iEL5#,NL50199608

main90179-15007iEL5#,NL50199409-199507

sub90179-15001

43330DBOLT (FOR FRONT LOWER BALL JOINT)

main90119-10785iEL5#,NL50199409

43330FNUT (FOR FRONT LOWER BALL JOINT SETTING)

main90179-10211iEL5#,NL50199409

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-19085iEL5#,NL50199409

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-12007iEL5#,NL50199409

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43340-19025iEL5#,NL50199409

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-12007iEL5#,NL50199409

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-16100iEL53,55;NL50..VITX,VX199409-199712

main48068-16120iEL51,NL50..AVE,AX,AXX,JOI,MOA,SOP199409-199712

main48068-46011iEL5#,NL50199712

48068ABOLT(FOR FRONT SUSPENSION LOWER ARM)

main90119-12099iEL5#,NL50199409

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-16100iEL55199409-199712

main48069-16120iEL51,53,NL50199409-199712

main48069-46011iEL5#,NL50199712

48652BRACKET, FRONT LOWER ARM

main48652-10020iEL5#,NL50199409-199712

48652ABOLT(FOR FRONT LOWER ARM BRACKET)

main90901-19018iEL5#,NL50199409

48652BBRACKET, FRONT LOWER ARM, RH

main48652-46010iEL5#,NL50199712

48659BRACKET, FRONT LOWER ARM, LH

main48659-46010iEL5#,NL50199712

9011910871

main90119-10871

9046816022

main90468-16022

9095001269

main90950-01269

22 parts on this diagram · 2 diagrams in section
