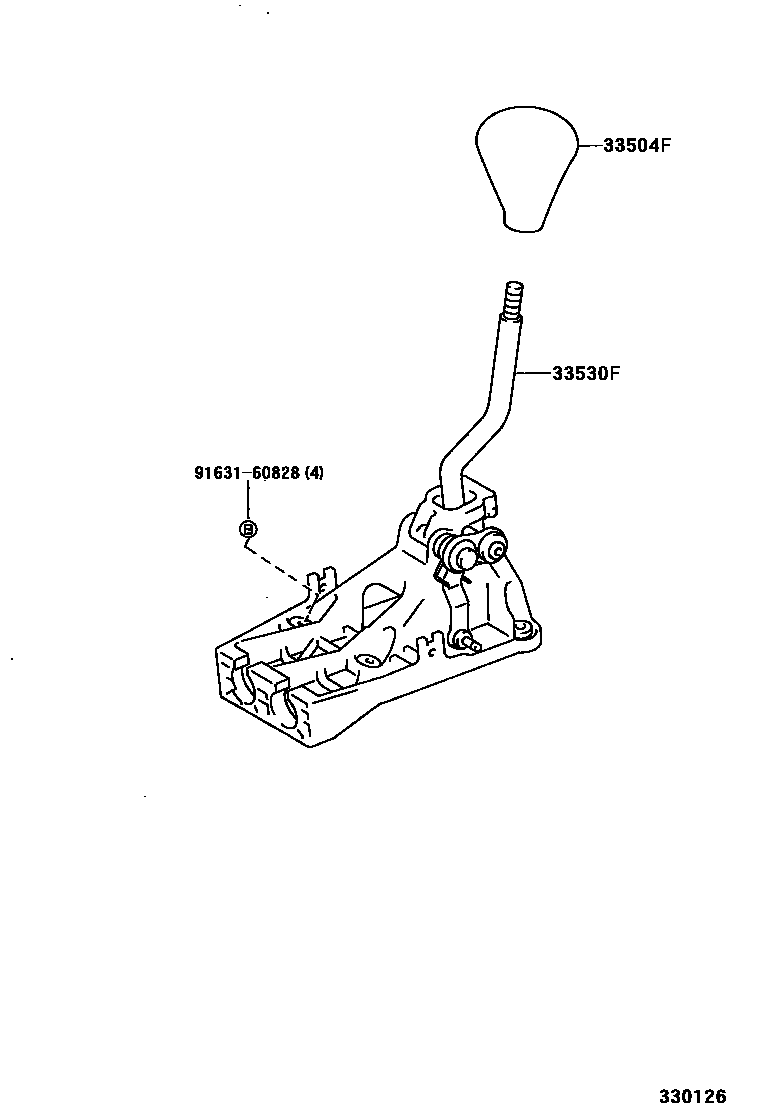

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-14040-B0iEL51..4F199409-199508

BLUISH GRAY,TRIM1#

main33504-14040-E1iEL51..4F199712-199907

SANDAL WOOD,TRIM4#

main33504-14040-P0iEL51..4F199508-199907

SHADOW GRAY,TRIM1#

main33504-14050-B1iEL53,55,NL50..5F..(AX,JOI,MOA)199508-199907

DARK SMOKE GRAY,TRIM1#

sub33504-14070

main33504-14050-B2iEL53,55,NL50..5F..(AX,JOI,MOA)199409-199508

BLUISH GRAY,TRIM1#

sub33504-14070

main33504-14050-E4iEL53,55,NL50..5F..(AX,JOI,MOA)199712-199907

SANDAL WOOD,TRIM4#

sub33504-14070

main33504-24010-B1iEL53,55,NL50..5F..(CYN,VITX,VX)199508-199907

DARK SMOKE GRAY,TRIM1#

main33504-24010-B4iEL53,55,NL50..5F..(CYN,VITX,VX)199409-199508

BLUISH GRAY,TRIM1#

main33504-24010-E8iEL53,55..5F..(CYN,VITX,VX)199712-199907

SANDAL WOOD,TRIM4#

main33542-12171-B0iEL51..3FC199508-199608

SHADOW GRAY,TRIM1#

main33542-12171-B1iEL51..3FC199409-199508

BLUISH GRAY,TRIM1#

main33542-12172-B0iEL51..3FC199608-199907

SHADOW GRAY,TRIM1#

main33542-12172-E1iEL51..3FC199712-199907

SANDAL WOOD,TRIM4#

main33542-16070-B0iEL53,55,NL50..4FC199409-199508

BLUISH GRAY,TRIM1#

main33542-16070-B1iEL53,55,NL50..4FC199508-199608

SHADOW GRAY,TRIM1#

main33542-16071-B1iEL53,55,NL50..4FC199608-199907

SHADOW GRAY,TRIM1#

main33542-16071-E1iEL53,55,NL50..4FC199712-199907

SANDAL WOOD,TRIM4#

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-16140iEL5#,NL50..MTM199409-199608

main33530-16150iEL5#,NL50..MTM199608

9163160828

main91631-60828

3 parts on this diagram · 5 diagrams in section
