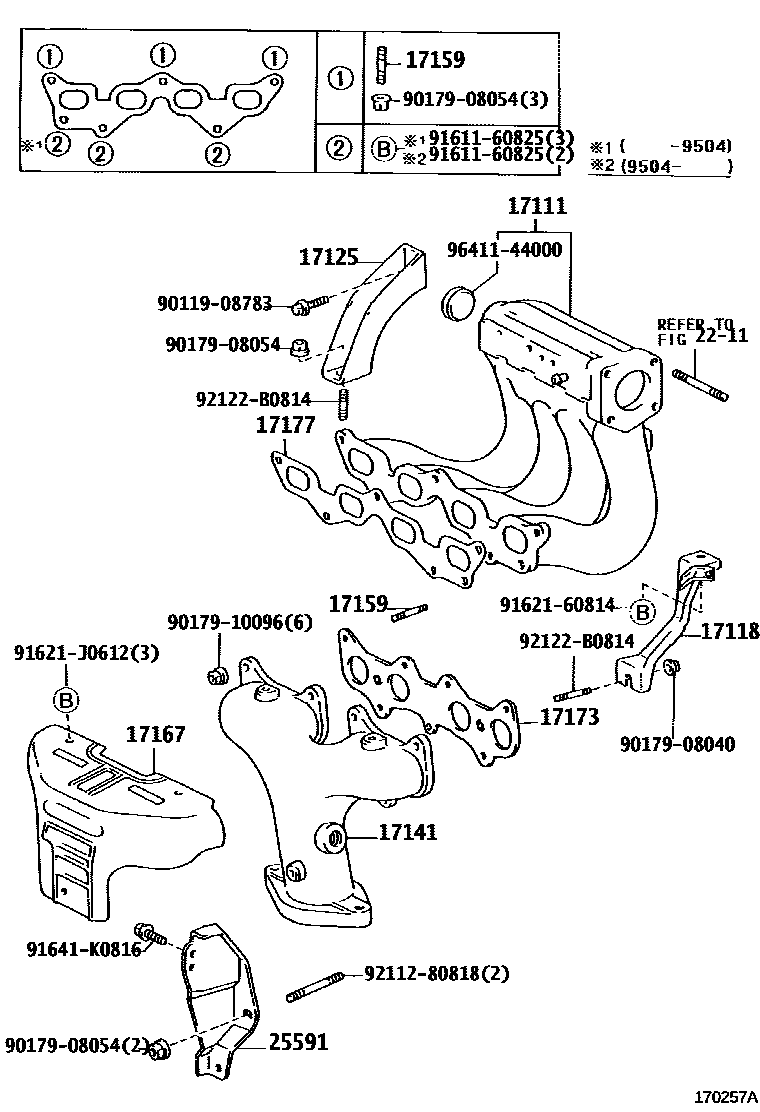

MANIFOLD

0001 1 0003 1 0004 1 0006 1 0007 1 0008 1

17111MANIFOLD, INTAKE

main17101-11320i4EFE,5EFE..EL5#199409-199504

main17101-11321i4EFE,5EFE..EL5#199504-199712

main17101-11350i4EFE..EL51199608-199703

main17101-11370i4EFE..EL51199703

main17101-11380i5EFE..EL53,55199712

main17101-55070i1NT..NL50..5F199409-199712

main17101-55071i1NT..NL50..5F199712

main17101-55080i1NT..NL50..4FC199409-199712

main17101-55081i1NT..NL50..4FC199712

17118STAY, MANIFOLD

main17118-11260i4EFE..EL51199409-199608

main17118-11270i5EFE..EL55199409-199712

main17118-11290i5EFE..EL53199712

main17118-11300i5EFE..EL55199712

main17118-11340i4EFE..EL51199608

main17118-55010i1NT..NL50199409

17125STAY, SURGE TANK, NO.1

main17125-11050i4EFE,5EFE..EL5#199409-199712

main17125-11060i4EFE..EL51199608-199712

17141MANIFOLD, EXHAUST

main17141-11300i4EFE,5EFE..EL51,53199409

main17141-55030i1NT..NL50..4FC199409

main17141-55040i1NT..NL50..5F199409

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90116-10196i4EFE,5EFE..EL5#199502

main92112-61040i1NT..NL50199409

main92122-60822i1NT..NL50199409

main92122-61025i4EFE,5EFE..EL5#199409-199502

main92132-60825i4EFE,5EFE..EL5#199409

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-11300i5EFE..EL55199409

main17167-11310i4EFE,5EFE..EL51,53199409

main17167-55010i1NT..NL50199409

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-11040i4EFE..EL51199409

main17173-11050i5EFE..EL53,55199409

main17173-55010i1NT..NL50199409

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-11021i4EFE,5EFE..EL5#199409-199504

main17177-11070i4EFE,5EFE..EL5#199504

main17177-55012i1NT..NL50199409

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

25591BRACKET, MANIFOLD SUPPORT

main25591-11070i5EFE..EL55199409

main25591-11080i4EFE,5EFE..EL51,53199409

9011908783

main90119-08783

9017908040

main90179-08040

9017908054

main90179-08054

9017910096

main90179-10096

9161160825

main91611-60825

9162160814

main91621-60814

91621J0612

main91621-J0612

91641K0816

main91641-K0816

9211280818

main92112-80818

92122B0814

main92122-B0814

9641144000

main96411-44000

21 parts on this diagram · 6 diagrams in section
