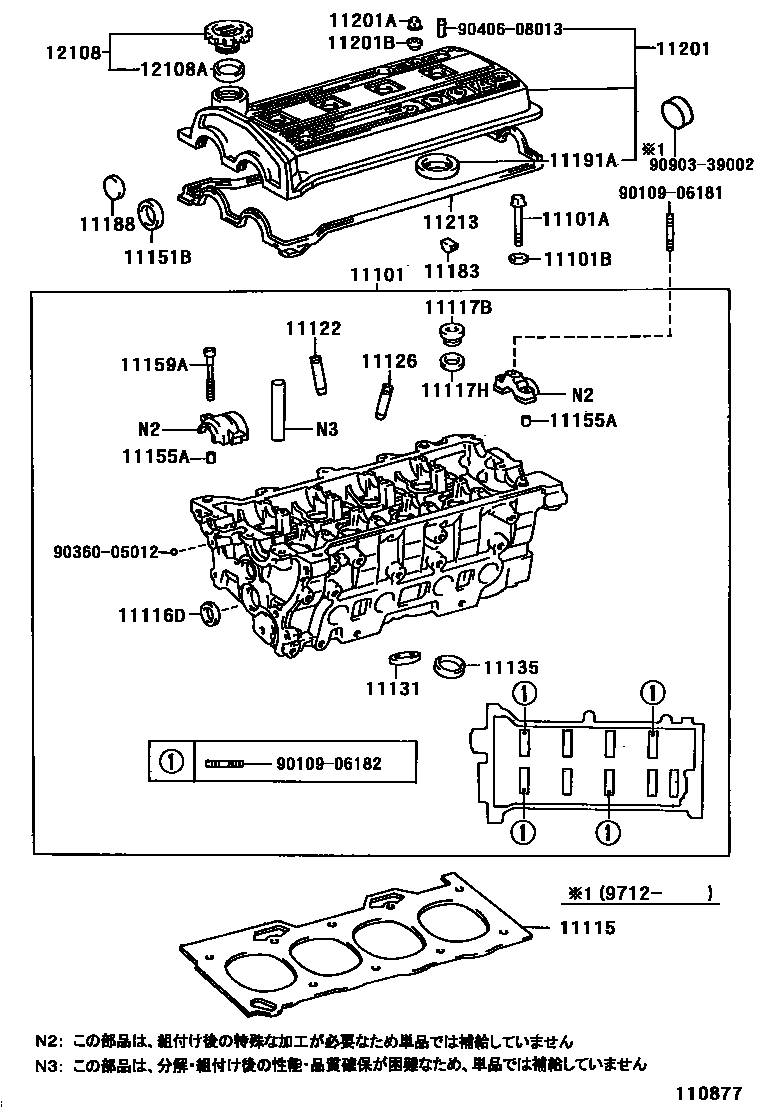

CYLINDER HEAD

0001 1 0002 1

11101HEAD SUB-ASSY, CYLINDER

main11101-19435i4EFE,5EFE..EL5#199409-199704

sub11101-19436

sub12282-11021

sub12282-11061

main11101-19436i4EFE,5EFE..EL5#199704

main11101-55041i1NT..NL50199409

11101ABOLT(FOR CYLINDER HEAD SET)

main90910-02100i4EFE,5EFE..EL5#199409

main90910-02101i4EFE,5EFE..EL5#199409

main90910-02105i1NT..NL50199409

11101BWASHER, PLATE(FOR CYLINDER HEAD SET)

main90201-09024i4EFE,5EFE..EL5#199409

main90201-11016i1NT..NL50199409

11115GASKET, CYLINDER HEAD

main11115-11070i4EFE,5EFE..EL5#199409-199508

sub11115-11071

main11115-11071i4EFE,5EFE..EL5#199508

main11115-55030-01i1NT..NL50199409

MARK 1

main11115-55030-02i1NT..NL50199409

MARK 2

main11115-55030-03i1NT..NL50199409

MARK 3

11116DPLUG, TIGHT, NO.4

main96411-42800i4EFE,5EFE..EL5#199409

11117BPLUG, W/HEAD TAPER SCREW, NO.2

main90341-20002i4EFE,5EFE..EL5#199409

11117HGASKET(FOR WATER HOLE)

main90430-18008i1NT..NL50199409

main90430-20004i4EFE,5EFE..EL5#199409

11122BUSH, INTAKE VALVE GUIDE

main11122-15030i4EFE,5EFE..EL5#199409

main11122-16020i1NT..NL50199409

main11123-15030i4EFE,5EFE..EL5#199409

main11123-16020i1NT..NL50199409

11126BUSH, EXHAUST VALVE GUIDE

main11122-10040i4EFE,5EFE..EL5#199409

main11122-16020i1NT..NL50199409

main11123-10040i4EFE,5EFE..EL5#199409

main11123-16020i1NT..NL50199409

11131SEAT, INTAKE VALVE

main11131-11020i4EFE,5EFE..EL5#199409

main11132-11020i4EFE,5EFE..EL5#199409

11135SEAT, EXHAUST VALVE

main11135-11020i4EFE,5EFE..EL5#199409

main11136-11020i4EFE,5EFE..EL5#199409

11151BSEAL, OIL(FOR CAMSHAFT SETTING)

main90311-35013i4EFE,5EFE..EL5#199409-199505

sub90311-35022

main90311-35035i4EFE,5EFE..EL5#199505

main90311-38041i1NT..NL50199409-199907

main90311-38069i1NT..NL50199812-199902

sub90311-38041

11155APIN, RING W/HEAD

main90253-08003i4EFE,5EFE..EL5#199409

main90253-11021i1NT..NL50199409

11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)

main90109-06080i4EFE,5EFE..EL5#199409

11183PLUG, SEMICIRCULAR

main11183-11010i4EFE,5EFE..EL5#199409

11188PLUG, CAMSHAFT HOUSING

main11188-11010i4EFE,5EFE..EL5#199409

11191AGASKET(FOR SPARK PLUG TUBE)

main11193-15010i4EFE,5EFE..EL5#199409

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-11030i4EFE,5EFE..EL5#199409

main11201-55040i1NT..NL50199409

11201ANUT, CAP(FOR CYLINDER HEAD COVER)

main90176-06028i4EFE,5EFE..EL5#199409

11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)

main90210-06008i4EFE,5EFE..EL5#199409-199701

sub90210-06013

main90210-06013i4EFE,5EFE..EL5#199701

11213GASKET, CYLINDER HEAD COVER

main11213-11041i4EFE,5EFE..EL5#199409

main11213-55010i1NT..NL50199409-199801

sub11213-55011

main11213-55011i1NT..NL50199801

12108CAP SUB-ASSY, OIL FILLER

main12180-55010i4EFE,5EFE..EL5#199409

12108AGASKET(FOR OIL FILLER CAP)

main90430-37004i1NT..NL50199409

main90430-37140i4EFE,5EFE..EL5#199409

9010906181

main90109-06181

9010906182

main90109-06182

9036005012

main90360-05012

9040608013

main90406-08013

9090339002

main90903-39002

28 parts on this diagram · 2 diagrams in section
