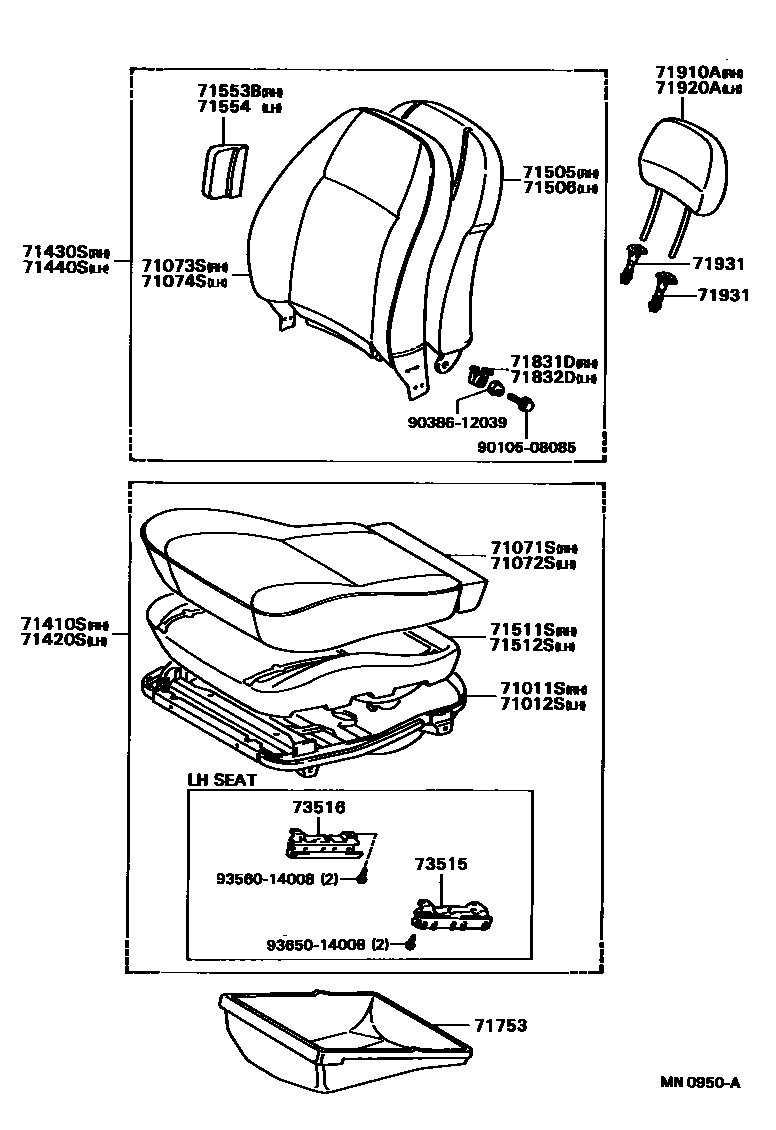

FRONT SEAT & SEAT TRACK

0001 1 0002 1 0003 1 0004 1

71011SFRAME SUB-ASSY, FRONT SEAT CUSHION, RH

main71011-16060iEL45..AVE,AXX,JOI,MOA;EL41,NL40..AX,JOI,MOA,TX,VC199009-199409

main71011-16070iEL41,NL40..AVE,AXX,SOP199009-199409

main71011-16090iEL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ199009-199409

71012SFRAME SUB-ASSY, FRONT SEAT CUSHION, LH

main71012-16030iEL4#,NL40199009-199409

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-16840-03iEL41..TX,VC199009-199208

GRAY,TRIM2#

main71071-16840-04iEL41..TX,VC199009-199208

GRAYISH BLUE,TRIM8#

main71071-16850-03iEL41,45,NL40..AX,JOI,MOA199009-199208

GRAY,TRIM2#

main71071-16850-04iEL41,45,NL40..AX,JOI,MOA199009-199208

GRAYISH BLUE,TRIM8#

main71071-16850-07iEL41,45,NL40..AX,JOI,MOA199009-199208

SPRUCE,TRIM6#

main71071-16860-03iEL41,45,NL40..AVE,AXX,SOP199009-199208

GRAY,TRIM2#

main71071-16860-04iEL41,45,NL40..AVE,AXX,SOP199009-199208

GRAYISH BLUE,TRIM8#

main71071-16860-07iEL41,45,NL40..AVE,AXX,SOP199009-199208

SPRUCE,TRIM6#

main71071-1G010-C0iEL41..TX,VC199208-199409

GRAY,TRIM2#

main71071-1G010-J0iEL41..TX,VC199208-199409

EISEN BLUE,TRIM8#

main71071-1G090-C0iEL41,45,NL40..AX,JOI,MOA199208-199409

GRAY,TRIM2#

main71071-1G090-G0iEL41,45,NL40..AX,JOI,MOA199208-199409

SPRUCE,TRIM6#

main71071-1G090-J0iEL41,45,NL40..AX,JOI,MOA199208-199409

EISEN BLUE,TRIM8#

main71071-1G100-C0iEL41,45,NL40..AVE,AXX,SOP199208-199308

GRAY,TRIM2#

main71071-1G100-G0iEL41,45,NL40..AVE,AXX,SOP199208-199308

SPRUCE,TRIM6#

main71071-1G100-J0iEL41,45,NL40..AVE,AXX,SOP199208-199308

EISEN BLUE,TRIM8#

main71071-1G101-C0iEL41,45,NL40..AVE,AXX,SOP199308-199409

GRAY,TRIM2#

main71071-1G101-G0iEL41,45,NL40..AVE,AXX,SOP199308-199409

SPRUCE,TRIM6#

main71071-1G101-J0iEL41,45,NL40..AVE,AXX,SOP199308-199409

EISEN BLUE,TRIM8#

main71518-16020-03iEL43,45,NL40..SX,VE,VIT,VITX,VS,VX199009-199208

GRAY,TRIM2#

main71518-16020-04iEL43,45,NL40..SX,VE,VIT,VITX,VS,VX199009-199208

GRAYISH BLUE,TRIM8#

main71518-16020-07iEL43,45,NL40..SX,VE,VIT,VITX,VS,VX199009-199208

SPRUCE,TRIM6#

main71518-16030-03iEL43..EFIS199009-199208

GRAY,TRIM2#

main71518-16030-04iEL43..EFIS199009-199208

GRAYISH BLUE,TRIM8#

main71518-16030-07iEL43..EFIS199009-199208

SPRUCE,TRIM6#

main71518-16060-C0iEL43,45,NL40..SX,VE,VIT,VITX,VS,VX199208-199409

GRAY,TRIM2#

main71518-16060-G0iEL43,45,NL40..SX,VE,VIT,VITX,VS,VX199208-199409

SPRUCE,TRIM6#

main71518-16060-J0iEL43,45,NL40..SX,VE,VIT,VITX,VS,VX199208-199409

EISEN BLUE,TRIM8#

main71518-16070-C0iEL43..EFIS199208-199409

GRAY,TRIM2#

main71518-16070-G0iEL43..EFIS199208-199409

SPRUCE,TRIM6#

main71518-16070-J0iEL43..EFIS199208-199409

EISEN BLUE,TRIM8#

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71071-16840-03iEL41..TX,VC199009-199208

GRAY,TRIM2#

main71071-16840-04iEL41..TX,VC199009-199208

GRAYISH BLUE,TRIM8#

main71071-16850-03iEL41,45,NL40..AX,JOI,MOA199009-199208

GRAY,TRIM2#

main71071-16850-04iEL41,45,NL40..AX,JOI,MOA199009-199208

GRAYISH BLUE,TRIM8#

main71071-16850-07iEL41,45,NL40..AX,JOI,MOA199009-199208

SPRUCE,TRIM6#

main71071-16860-03iEL41,45,NL40..AVE,AXX,SOP199009-199208

GRAY,TRIM2#

main71071-16860-04iEL41,45,NL40..AVE,AXX,SOP199009-199208

GRAYISH BLUE,TRIM8#

main71071-16860-07iEL41,45,NL40..AVE,AXX,SOP199009-199208

SPRUCE,TRIM6#

main71071-1G010-C0iEL41..TX,VC199208-199409

GRAY,TRIM2#

main71071-1G010-J0iEL41..TX,VC199208-199409

EISEN BLUE,TRIM8#

main71071-1G090-C0iEL41,45,NL40..AX,JOI,MOA199208-199409

GRAY,TRIM2#

main71071-1G090-G0iEL41,45,NL40..AX,JOI,MOA199208-199409

SPRUCE,TRIM6#

main71071-1G090-J0iEL41,45,NL40..AX,JOI,MOA199208-199409

EISEN BLUE,TRIM8#

main71071-1G100-C0iEL41,45,NL40..AVE,AXX,SOP199208-199308

GRAY,TRIM2#

main71071-1G100-G0iEL41,45,NL40..AVE,AXX,SOP199208-199308

SPRUCE,TRIM6#

main71071-1G100-J0iEL41,45,NL40..AVE,AXX,SOP199208-199308

EISEN BLUE,TRIM8#

main71071-1G101-C0iEL41,45,NL40..AVE,AXX,SOP199308-199409

GRAY,TRIM2#

main71071-1G101-G0iEL41,45,NL40..AVE,AXX,SOP199308-199409

SPRUCE,TRIM6#

main71071-1G101-J0iEL41,45,NL40..AVE,AXX,SOP199308-199409

EISEN BLUE,TRIM8#

main71528-16010-03iEL43,45,NL40..SX,VE,VIT,VITX,VS,VX199009-199208

GRAY,TRIM2#

main71528-16010-04iEL43,45,NL40..SX,VE,VIT,VITX,VS,VX199009-199208

GRAYISH BLUE,TRIM8#

main71528-16010-07iEL43,45,NL40..SX,VE,VIT,VITX,VS,VX199009-199208

SPRUCE,TRIM6#

main71528-16020-03iEL43..EFIS199009-199208

GRAY,TRIM2#

main71528-16020-04iEL43..EFIS199009-199208

GRAYISH BLUE,TRIM8#

main71528-16020-07iEL43..EFIS199009-199208

SPRUCE,TRIM6#

main71528-16050-C0iEL43,45,NL40..SX,VE,VIT,VITX,VS,VX199208-199409

GRAY,TRIM2#

main71528-16050-G0iEL43,45,NL40..SX,VE,VIT,VITX,VS,VX199208-199409

SPRUCE,TRIM6#

main71528-16050-J0iEL43,45,NL40..SX,VE,VIT,VITX,VS,VX199208-199409

EISEN BLUE,TRIM8#

main71528-16060-C0iEL43..EFIS199208-199409

GRAY,TRIM2#

main71528-16060-G0iEL43..EFIS199208-199409

SPRUCE,TRIM6#

main71528-16060-J0iEL43..EFIS199208-199409

EISEN BLUE,TRIM8#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-1G090-03iEL41..TX,VC199009-199208

GRAY,TRIM2#

main71073-1G090-04iEL41..TX,VC199009-199208

GRAYISH BLUE,TRIM8#

main71073-1G100-03iEL41,45,NL40..AX,JOI,MOA199009-199208

GRAY,TRIM2#

main71073-1G100-04iEL41,45,NL40..AX,JOI,MOA199009-199208

GRAYISH BLUE,TRIM8#

main71073-1G100-07iEL41,45,NL40..AX,JOI,MOA199009-199208

SPRUCE,TRIM6#

main71073-1G101-C0iEL41,45,NL40..AX,JOI,MOA199208-199409

GRAY,TRIM2#

main71073-1G101-G0iEL41,45,NL40..AX,JOI,MOA199208-199409

SPRUCE,TRIM6#

main71073-1G101-J0iEL41,45,NL40..AX,JOI,MOA199208-199409

EISEN BLUE,TRIM8#

main71073-1G110-03iEL41,45,NL40..AVE,AXX,SOP199009-199208

GRAY,TRIM2#

main71073-1G110-04iEL41,45,NL40..AVE,AXX,SOP199009-199208

GRAYISH BLUE,TRIM8#

main71073-1G110-07iEL41,45,NL40..AVE,AXX,SOP199009-199208

SPRUCE,TRIM6#

main71073-1G111-C0iEL41,45,NL40..AVE,AXX,SOP199208-199308

GRAY,TRIM2#

main71073-1G111-G0iEL41,45,NL40..AVE,AXX,SOP199208-199308

SPRUCE,TRIM6#

main71073-1G111-J0iEL41,45,NL40..AVE,AXX,SOP199208-199308

EISEN BLUE,TRIM8#

main71073-1G112-C0iEL41,45,NL40..AVE,AXX,SOP199308-199409

GRAY,TRIM2#

main71073-1G112-G0iEL41,45,NL40..AVE,AXX,SOP199308-199409

SPRUCE,TRIM6#

main71073-1G112-J0iEL41,45,NL40..AVE,AXX,SOP199308-199409

EISEN BLUE,TRIM8#

main71073-1G150-C0iEL41..TX,VC199208-199409

GRAY,TRIM2#

main71073-1G150-J0iEL41..TX,VC199208-199409

EISEN BLUE,TRIM8#

main71558-16020-03iEL43,45,NL40..SX,VE,VIT,VITX,VS,VX199009-199208

GRAY,TRIM2#

main71558-16020-04iEL43,45,NL40..SX,VE,VIT,VITX,VS,VX199009-199208

GRAYISH BLUE,TRIM8#

main71558-16020-07iEL43,45,NL40..SX,VE,VIT,VITX,VS,VX199009-199208

SPRUCE,TRIM6#

main71558-16030-03iEL43..EFIS199009-199208

GRAY,TRIM2#

main71558-16030-04iEL43..EFIS199009-199208

GRAYISH BLUE,TRIM8#

main71558-16030-07iEL43..EFIS199009-199208

SPRUCE,TRIM6#

main71558-16050-C0iEL43,45,NL40..SX,VE,VIT,VITX,VS,VX199208-199409

GRAY,TRIM2#

main71558-16050-G0iEL43,45,NL40..SX,VE,VIT,VITX,VS,VX199208-199409

SPRUCE,TRIM6#

main71558-16050-J0iEL43,45,NL40..SX,VE,VIT,VITX,VS,VX199208-199409

EISEN BLUE,TRIM8#

main71558-16060-C0iEL43..EFIS199208-199409

GRAY,TRIM2#

main71558-16060-G0iEL43..EFIS199208-199409

SPRUCE,TRIM6#

main71558-16060-J0iEL43..EFIS199208-199409

EISEN BLUE,TRIM8#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-16770-03iEL41..TX,VC199009-199208

GRAY,TRIM2#

main71074-16770-04iEL41..TX,VC199009-199208

GRAYISH BLUE,TRIM8#

main71074-16780-03iEL41,45,NL40..AX,JOI,MOA199009-199208

GRAY,TRIM2#

main71074-16780-04iEL41,45,NL40..AX,JOI,MOA199009-199208

GRAYISH BLUE,TRIM8#

main71074-16780-07iEL41,45,NL40..AX,JOI,MOA199009-199208

SPRUCE,TRIM6#

main71074-16781-C0iEL41,45,NL40..AX,JOI,MOA199208-199409

GRAY,TRIM2#

main71074-16781-G0iEL41,45,NL40..AX,JOI,MOA199208-199409

SPRUCE,TRIM6#

main71074-16781-J0iEL41,45,NL40..AX,JOI,MOA199208-199409

EISEN BLUE,TRIM8#

main71074-16790-03iEL41,45,NL40..AVE,AXX,SOP199009-199208

GRAY,TRIM2#

main71074-16790-04iEL41,45,NL40..AVE,AXX,SOP199009-199208

GRAYISH BLUE,TRIM8#

main71074-16790-07iEL41,45,NL40..AVE,AXX,SOP199009-199208

SPRUCE,TRIM6#

main71074-16791-C0iEL41,45,NL40..AVE,AXX,SOP199208-199308

GRAY,TRIM2#

main71074-16791-G0iEL41,45,NL40..AVE,AXX,SOP199208-199308

SPRUCE,TRIM6#

main71074-16791-J0iEL41,45,NL40..AVE,AXX,SOP199208-199308

EISEN BLUE,TRIM8#

main71074-16792-C0iEL41,45,NL40..AVE,AXX,SOP199308-199409

GRAY,TRIM2#

main71074-16792-G0iEL41,45,NL40..AVE,AXX,SOP199308-199409

SPRUCE,TRIM6#

main71074-16792-J1iEL41,45,NL40..AVE,AXX,SOP199308-199409

EISEN BLUE,TRIM8#

main71074-16830-C0iEL41..TX,VC199208-199409

GRAY,TRIM2#

main71074-16830-J0iEL41..TX,VC199208-199409

EISEN BLUE,TRIM8#

main71568-16010-03iEL43,45,NL40..SX,VE,VIT,VITX,VS,VX199009-199208

GRAY,TRIM2#

main71568-16010-04iEL43,45,NL40..SX,VE,VIT,VITX,VS,VX199009-199208

GRAYISH BLUE,TRIM8#

main71568-16010-07iEL43,45,NL40..SX,VE,VIT,VITX,VS,VX199009-199208

SPRUCE,TRIM6#

main71568-16020-03iEL43..EFIS199009-199208

GRAY,TRIM2#

main71568-16020-04iEL43..EFIS199009-199208

GRAYISH BLUE,TRIM8#

main71568-16020-07iEL43..EFIS199009-199208

SPRUCE,TRIM6#

main71568-16040-C0iEL43,45,NL40..SX,VE,VIT,VITX,VS,VX199208-199409

GRAY,TRIM2#

main71568-16040-G0iEL43,45,NL40..SX,VE,VIT,VITX,VS,VX199208-199409

SPRUCE,TRIM6#

main71568-16040-J0iEL43,45,NL40..SX,VE,VIT,VITX,VS,VX199208-199409

EISEN BLUE,TRIM8#

main71568-16050-C0iEL43..EFIS199208-199409

GRAY,TRIM2#

main71568-16050-G0iEL43..EFIS199208-199409

SPRUCE,TRIM6#

main71568-16050-J0iEL43..EFIS199208-199409

EISEN BLUE,TRIM8#

71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71410-1G010-03iEL41..TX,VC199009-199208

***,GRAY,TRIM2#

main71410-1G010-04iEL41..TX,VC199009-199208

***,GRAYISH BLUE,TRIM8#

main71410-1G020-03iEL41,45,NL40..AX,JOI,MOA199009-199208

***,GRAY,TRIM2#

main71410-1G020-04iEL41,45,NL40..AX,JOI,MOA199009-199208

***,GRAYISH BLUE,TRIM8#

main71410-1G020-07iEL41,45,NL40..AX,JOI,MOA199009-199208

***,SPRUCE,TRIM6#

main71410-1G030-03iEL41,NL40..AVE,AXX,SOP199009-199208

***,GRAY,TRIM2#

main71410-1G030-04iEL41,NL40..AVE,AXX,SOP199009-199208

***,GRAYISH BLUE,TRIM8#

main71410-1G030-07iEL41,NL40..AVE,AXX,SOP199009-199208

***,SPRUCE,TRIM6#

main71410-1G040-03iEL43,45,NL40..SX,VE,VIT,VITX,VS,VX199009-199208

***,GRAY,TRIM2#

main71410-1G040-04iEL43,45,NL40..SX,VE,VIT,VITX,VS,VX199009-199208

***,GRAYISH BLUE,TRIM8#

main71410-1G040-07iEL43,45,NL40..SX,VE,VIT,VITX,VS,VX199009-199208

***,SPRUCE,TRIM6#

main71410-1G050-03iEL43..EFIS199009-199208

***,GRAY,TRIM2#

main71410-1G050-04iEL43..EFIS199009-199208

***,GRAYISH BLUE,TRIM8#

main71410-1G050-07iEL43..EFIS199009-199208

***,SPRUCE,TRIM6#

main71410-1G080-03iEL45..AVE,AXX199009-199208

***,GRAY,TRIM2#

main71410-1G080-04iEL45..AVE,AXX199009-199208

***,SPRUCE,TRIM8#

main71410-1G080-07iEL45..AVE,AXX199009-199208

***,GRAYISH BLUE,TRIM6#

main71410-1G110-C0iEL41..TX,VC199208-199409

***,GRAY,TRIM2#

main71410-1G110-J0iEL41..TX,VC199208-199409

***,EISEN BLUE,TRIM8#

main71410-1G120-C0iEL43,45,NL40..SX,VE,VIT,VITX,VS,VX199208-199409

***,GRAY,TRIM2#

main71410-1G120-G0iEL43,45,NL40..SX,VE,VIT,VITX,VS,VX199208-199409

***,SPRUCE,TRIM6#

main71410-1G120-J0iEL43,45,NL40..SX,VE,VIT,VITX,VS,VX199208-199409

***,EISEN BLUE,TRIM8#

main71410-1G130-C0iEL43..EFIS199208-199409

***,GRAY,TRIM2#

main71410-1G130-G0iEL43..EFIS199208-199409

***,SPRUCE,TRIM6#

main71410-1G130-J0iEL43..EFIS199208-199409

***,EISEN BLUE,TRIM8#

main71410-1G180-C0iEL41,45,NL40..AX,JOI,MOA199208-199409

***,GRAY,TRIM2#

main71410-1G180-G0iEL41,45,NL40..AX,JOI,MOA199208-199409

***,SPRUCE,TRIM6#

main71410-1G180-J0iEL41,45,NL40..AX,JOI,MOA199208-199409

***,EISEN BLUE,TRIM8#

main71410-1G190-C0iEL41,NL40..AVE,AXX,SOP199208-199308

***,GRAY,TRIM2#

main71410-1G190-G0iEL41,NL40..AVE,AXX,SOP199208-199308

***,SPRUCE,TRIM6#

main71410-1G190-J0iEL41,NL40..AVE,AXX,SOP199208-199308

***,EISEN BLUE,TRIM8#

main71410-1G191-C0iEL41,NL40..AVE,AXX,SOP199308-199409

***,GRAY,TRIM2#

main71410-1G191-G0iEL41,NL40..AVE,AXX,SOP199308-199409

***,SPRUCE,TRIM6#

main71410-1G191-J0iEL41,NL40..AVE,AXX,SOP199308-199409

***,EISEN BLUE,TRIM8#

main71410-1G200-C0iEL45..AVE,AXX199208-199308

***,GRAY,TRIM2#

main71410-1G200-G0iEL45..AVE,AXX199208-199308

***,SPRUCE,TRIM6#

main71410-1G200-J0iEL45..AVE,AXX199208-199308

***,EISEN BLUE,TRIM8#

main71410-1G201-C0iEL45..AVE,AXX199308-199409

***,GRAY,TRIM2#

main71410-1G201-G0iEL45..AVE,AXX199308-199409

***,SPRUCE,TRIM6#

main71410-1G201-J0iEL45..AVE,AXX199308-199409

***,EISEN BLUE,TRIM8#

71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

main71420-16820-03iEL41..TX,VC199009-199208

***,GRAY,TRIM2#

main71420-16820-04iEL41..TX,VC199009-199208

***,GRAYISH BLUE,TRIM8#

main71420-16830-03iEL41,45,NL40..AX,JOI,MOA199009-199208

***,GRAY,TRIM2#

main71420-16830-04iEL41,45,NL40..AX,JOI,MOA199009-199208

***,GRAYISH BLUE,TRIM8#

main71420-16830-07iEL41,45,NL40..AX,JOI,MOA199009-199208

***,SPRUCE,TRIM6#

main71420-16850-03iEL43,45,NL40..SX,VE,VIT,VITX,VS,VX199009-199208

***,GRAY,TRIM2#

main71420-16850-04iEL43,45,NL40..SX,VE,VIT,VITX,VS,VX199009-199208

***,GRAYISH BLUE,TRIM8#

main71420-16850-07iEL43,45,NL40..SX,VE,VIT,VITX,VS,VX199009-199208

***,SPRUCE,TRIM6#

main71420-16860-03iEL43..EFIS199009-199208

***,GRAY,TRIM2#

main71420-16860-04iEL43..EFIS199009-199208

***,GRAYISH BLUE,TRIM8#

main71420-16860-07iEL43..EFIS199009-199208

***,SPRUCE,TRIM6#

main71420-1G010-03iEL41,45,NL40..AVE,AXX,SOP199009-199208

main71420-1G010-04iEL41,45,NL40..AVE,AXX,SOP199009-199208

main71420-1G010-07iEL41,45,NL40..AVE,AXX,SOP199009-199208

main71420-1G020-03iEL41,45,NL40..AVE,AXX,SOP199009-199208

***,GRAY,TRIM2#

main71420-1G020-04iEL41,45,NL40..AVE,AXX,SOP199009-199208

***,GRAYISH BLUE,TRIM8#

main71420-1G020-07iEL41,45,NL40..AVE,AXX,SOP199009-199208

***,SPRUCE,TRIM6#

main71420-1G050-C0iEL41..TX,VC199208-199409

***,GRAY,TRIM2#

main71420-1G050-J0iEL41..TX,VC199208-199409

***,EISEN BLUE,TRIM8#

main71420-1G060-C0iEL43,45,NL40..SX,VE,VIT,VITX,VS,VX199208-199409

***,GRAY,TRIM2#

main71420-1G060-G0iEL43,45,NL40..SX,VE,VIT,VITX,VS,VX199208-199409

***,SPRUCE,TRIM6#

main71420-1G060-J0iEL43,45,NL40..SX,VE,VIT,VITX,VS,VX199208-199409

***,EISEN BLUE,TRIM8#

main71420-1G070-C0iEL43..EFIS199308-199409

main71420-1G070-G0iEL43..EFIS199208-199308

***,SPRUCE,TRIM6#

main71420-1G070-J0iEL43..EFIS199308-199409

main71420-1G120-C0iEL41,45,NL40..AX,JOI,MOA199208-199409

***,GRAY,TRIM2#

main71420-1G120-G0iEL41,45,NL40..AX,JOI,MOA199208-199409

***,SPRUCE,TRIM6#

main71420-1G120-J0iEL41,45,NL40..AX,JOI,MOA199208-199409

***,EISEN BLUE,TRIM8#

main71420-1G130-C0iEL41,45,NL40..AVE,AXX,SOP199208-199308

***,GRAY,TRIM2#

main71420-1G130-G0iEL41,45,NL40..AVE,AXX,SOP199208-199308

***,SPRUCE,TRIM6#

main71420-1G130-J0iEL41,45,NL40..AVE,AXX,SOP199208-199308

***,EISEN BLUE,TRIM8#

main71420-1G131-C0iEL41,45,NL40..AVE,AXX,SOP199308-199409

***,GRAY,TRIM2#

main71420-1G131-G0iEL41,45,NL40..AVE,AXX,SOP199308-199409

***,SPRUCE,TRIM6#

main71420-1G131-J0iEL41,45,NL40..AVE,AXX,SOP199308-199409

***,EISEN BLUE,TRIM8#

main71420-1G140-C0iEL41,45,NL40..AVE,AXX,SOP199208-199308

main71420-1G140-G0iEL41,45,NL40..AVE,AXX,SOP199208-199308

main71420-1G140-J0iEL41,45,NL40..AVE,AXX,SOP199208-199308

main71420-1G141-C1iEL41,45,NL40..AVE,AXX,SOP199308-199409

main71420-1G141-G1iEL41,45,NL40..AVE,AXX,SOP199308-199409

main71420-1G141-J1iEL41,45,NL40..AVE,AXX,SOP199308-199409

main71420-1G160-C0iEL43..EFIS199308-199409

***,GRAY,TRIM2#

main71420-1G160-G0iEL43..EFIS199308-199409

***,SPRUCE GRAY,TRIM6#

main71420-1G160-J0iEL43..EFIS199308-199409

***,EISEN BLUE,TRIM8#

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71430-1G160-03iEL41..TX,VC199009-199208

***,GRAY,TRIM2#

main71430-1G160-04iEL41..TX,VC199009-199208

***,GRAYISH BLUE,TRIM8#

main71430-1G170-03iEL41,45,NL40..AX,JOI,MOA199009-199208

***,GRAY,TRIM2#

main71430-1G170-04iEL41,45,NL40..AX,JOI,MOA199009-199208

***,GRAYISH BLUE,TRIM8#

main71430-1G170-07iEL41,45,NL40..AX,JOI,MOA199009-199208

***,SPRUCE,TRIM6#

main71430-1G171-C0iEL41,45,NL40..AX,JOI,MOA199208-199409

***,GRAY,TRIM2#

main71430-1G171-G0iEL41,45,NL40..AX,JOI,MOA199208-199409

***,SPRUCE,TRIM6#

main71430-1G171-J0iEL41,45,NL40..AX,JOI,MOA199208-199409

***,EISEN BLUE,TRIM8#

main71430-1G180-03iEL41,45,NL40..AVE,AXX,SOP199009-199208

***,GRAY,TRIM2#

main71430-1G180-04iEL41,45,NL40..AVE,AXX,SOP199009-199208

***,GRAYISH BLUE,TRIM8#

main71430-1G180-07iEL41,45,NL40..AVE,AXX,SOP199009-199208

***,SPRUCE,TRIM6#

main71430-1G181-C0iEL41,45,NL40..AVE,AXX,SOP199208-199308

***,GRAY,TRIM2#

main71430-1G181-G0iEL41,45,NL40..AVE,AXX,SOP199208-199308

***,SPRUCE,TRIM6#

main71430-1G181-J0iEL41,45,NL40..AVE,AXX,SOP199208-199308

***,EISEN BLUE,TRIM8#

main71430-1G182-C0iEL41,45,NL40..AVE,AXX,SOP199308-199409

***,GRAY,TRIM2#

main71430-1G182-G0iEL41,45,NL40..AVE,AXX,SOP199308-199409

***,SPRUCE,TRIM6#

main71430-1G182-J0iEL41,45,NL40..AVE,AXX,SOP199308-199409

***,EISEN BLUE,TRIM8#

main71430-1G190-03iEL43,45,NL40..SX,VE,VIT,VITX,VS,VX199009-199208

***,GRAY,TRIM2#

main71430-1G190-04iEL43,45,NL40..SX,VE,VIT,VITX,VS,VX199009-199208

***,GRAYISH BLUE,TRIM8#

main71430-1G190-07iEL43,45,NL40..SX,VE,VIT,VITX,VS,VX199009-199208

***,SPRUCE,TRIM6#

main71430-1G200-03iEL43..EFIS199009-199208

***,GRAY,TRIM2#

main71430-1G200-04iEL43..EFIS199009-199208

***,GRAYISH BLUE,TRIM8#

main71430-1G200-07iEL43..EFIS199009-199208

***,SPRUCE,TRIM6#

main71430-1G250-C0iEL41..TX,VC199208-199409

***,GRAY,TRIM2#

main71430-1G250-J0iEL41..TX,VC199208-199409

***,EISEN BLUE,TRIM8#

main71430-1G260-C0iEL43,45,NL40..SX,VE,VIT,VITX,VS,VX199208-199409

***,GRAY,TRIM2#

main71430-1G260-G0iEL43,45,NL40..SX,VE,VIT,VITX,VS,VX199208-199409

***,SPRUCE,TRIM6#

main71430-1G260-J0iEL43,45,NL40..SX,VE,VIT,VITX,VS,VX199208-199409

***,EISEN BLUE,TRIM8#

main71430-1G270-C0iEL43..EFIS199208-199409

***,GRAY,TRIM2#

main71430-1G270-G0iEL43..EFIS199208-199409

***,SPRUCE,TRIM6#

main71430-1G270-J0iEL43..EFIS199208-199409

***,EISEN BLUE,TRIM8#

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71440-1G110-03iEL41..TX,VC199009-199208

***,GRAY,TRIM2#

main71440-1G110-04iEL41..TX,VC199009-199208

***,GRAYISH BLUE,TRIM8#

main71440-1G120-03iEL41,45,NL40..AX,JOI,MOA199009-199208

***,GRAY,TRIM2#

main71440-1G120-04iEL41,45,NL40..AX,JOI,MOA199009-199208

***,GRAYISH BLUE,TRIM8#

main71440-1G120-07iEL41,45,NL40..AX,JOI,MOA199009-199208

***,SPRUCE,TRIM6#

main71440-1G121-C0iEL41,45,NL40..AX,JOI,MOA199208-199409

***,GRAY,TRIM2#

main71440-1G121-G0iEL41,45,NL40..AX,JOI,MOA199208-199409

***,SPRUCE,TRIM6#

main71440-1G121-J0iEL41,45,NL40..AX,JOI,MOA199208-199409

***,EISEN BLUE,TRIM8#

main71440-1G130-03iEL41,45,NL40..AVE,AXX,SOP199009-199208

***,GRAY,TRIM2#

main71440-1G130-04iEL41,45,NL40..AVE,AXX,SOP199009-199208

GRAYISH BLUE,TRIM8#

main71440-1G130-07iEL41,45,NL40..AVE,AXX,SOP199009-199208

***,SPRUCE,TRIM6#

main71440-1G131-C0iEL41,45,NL40..AVE,AXX,SOP199208-199308

***,GRAY,TRIM2#

main71440-1G131-G0iEL41,45,NL40..AVE,AXX,SOP199208-199308

***,SPRUCE,TRIM6#

main71440-1G131-J0iEL41,45,NL40..AVE,AXX,SOP199208-199308

***,EISEN BLUE,TRIM8#

main71440-1G132-C0iEL41,45,NL40..AVE,AXX,SOP199308-199409

***,GRAY,TRIM2#

main71440-1G132-G0iEL41,45,NL40..AVE,AXX,SOP199308-199409

***,SPRUCE,TRIM6#

main71440-1G132-J0iEL41,45,NL40..AVE,AXX,SOP199308-199409

***,EISEN BLUE,TRIM8#

main71440-1G140-03iEL43,45,NL40..SX,VE,VIT,VITX,VS,VX199009-199208

***,GRAY,TRIM2#

main71440-1G140-04iEL43,45,NL40..SX,VE,VIT,VITX,VS,VX199009-199208

***,GRAYISH BLUE,TRIM8#

main71440-1G140-07iEL43,45,NL40..SX,VE,VIT,VITX,VS,VX199009-199208

***,SPRUCE,TRIM6#

main71440-1G150-03iEL43..EFIS199009-199208

***,GRAY,TRIM2#

main71440-1G150-04iEL43..EFIS199009-199208

***,GRAYISH BLUE,TRIM8#

main71440-1G150-07iEL43..EFIS199009-199208

***,SPRUCE,TRIM6#

main71440-1G200-C0iEL41..TX,VC199208-199409

***,GRAY,TRIM2#

main71440-1G200-J0iEL41..TX,VC199208-199409

***,EISEN BLUE,TRIM8#

main71440-1G210-C0iEL43,45,NL40..SX,VE,VIT,VITX,VS,VX199208-199409

***,GRAY,TRIM2#

main71440-1G210-G0iEL43,45,NL40..SX,VE,VIT,VITX,VS,VX199208-199409

***,SPRUCE,TRIM6#

main71440-1G210-J0iEL43,45,NL40..SX,VE,VIT,VITX,VS,VX199208-199409

***,EISEN BLUE,TRIM8#

main71440-1G220-C0iEL43..EFIS199208-199409

***,GRAY,TRIM2#

main71440-1G220-G0iEL43..EFIS199208-199409

***,SPRUCE,TRIM6#

main71440-1G220-J0iEL43..EFIS199208-199409

***,EISEN BLUE,TRIM8#

71505PAD SUB-ASSY, FRONT SEATBACK W/FRAME, RH

main71505-16070iEL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP,TX,VC199009-199409

main71705-16030-01iEL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ199009-199208

BLACK,TRIM2#

main71705-16030-04iEL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ199009-199208

GRAYISH BLUE,TRIM8#

main71705-16030-07iEL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ199009-199208

SPRUCE,TRIM6#

main71705-16030-C0iEL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ199208-199409

BLACK,TRIM2#

main71705-16030-G0iEL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ199208-199409

SPRUCE,TRIM6#

main71705-16030-J0iEL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ199208-199409

EISEN BLUE,TRIM8#

71506PAD SUB-ASSY, FRONT SEATBACK W/FRAME, LH

main71506-16030iEL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP,TX,VC199009-199409

main71705-16030-01iEL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ199009-199208

BLACK,TRIM2#

main71705-16030-04iEL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ199009-199208

GRAYISH BLUE,TRIM8#

main71705-16030-07iEL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ199009-199208

SPRUCE,TRIM6#

main71705-16030-C0iEL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ199208-199409

BLACK,TRIM2#

main71705-16030-G0iEL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ199208-199409

SPRUCE,TRIM6#

main71705-16030-J0iEL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ199208-199409

EISEN BLUE,TRIM8#

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-16120iEL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP,TX,VC199009-199208

main71511-16160iEL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP,TX,VC199208-199409

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71511-16120iEL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP,TX,VC199009-199208

main71511-16160iEL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP,TX,VC199208-199409

71553BPAD, FRONT SEATBACK, B

main71553-16040iEL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP,TX,VC199009-199409

main71553-16060iEL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ199009-199409

71554PAD, FRONT SEATBACK, C

main71553-16040iEL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP,TX,VC199009-199409

main71553-16060iEL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ199009-199409

71753TRAY, FRONT SEAT UNDER

main71753-10010iNL40..4DS..JOI199305-199307

71831DCOVER, FRONT SEAT HINGE, RH

main71831-16010iEL4#,NL40199009-199409

71832DCOVER, FRONT SEAT HINGE, LH

main71831-16010iEL4#,NL40199009-199409

71910AHEADREST ASSY, FRONT SEAT

main71910-16330-01iEL41,45,NL40..AX,JOI,MOA,TX,VC199009-199208

BLACK,TRIM2#

main71910-16330-04iEL41,45,NL40..AX,JOI,MOA,TX,VC199009-199208

GRAYISH BLUE,TRIM8#

main71910-16330-07iEL41,45,NL40..AX,JOI,MOA199009-199208

SPRUCE,TRIM6#

main71910-16330-22iEL41..TX,VC199208-199409

BLACK,TRIM2#

main71910-16330-W4iEL41..TX,VC199208-199409

EISEN BLUE,TRIM8#

main71910-16340-03iEL41,45,NL40..AVE,AXX,SOP199009-199208

GRAY,TRIM2#

main71910-16340-04iEL41,45,NL40..AVE,AXX,SOP199009-199208

GRAYISH BLUE,TRIM8#

main71910-16340-07iEL41,45,NL40..AVE,AXX,SOP199009-199208

SPRUCE,TRIM6#

main71910-16340-B0iEL41,45,NL40..AVE,AXX,SOP199208-199308

GRAY,TRIM2#

main71910-16340-G0iEL41,45,NL40..AVE,AXX,SOP199208-199308

SPRUCE,TRIM6#

main71910-16340-W4iEL41,45,NL40..AVE,AXX,SOP199208-199308

EISEN BLUE,TRIM8#

main71910-16341-B0iEL41,45,NL40..AVE,AXX,SOP199308-199409

GRAY,TRIM2#

main71910-16341-G0iEL41,45,NL40..AVE,AXX,SOP199308-199409

SPRUCE,TRIM6#

main71910-16341-W4iEL41,45,NL40..AVE,AXX,SOP199308-199409

EISEN BLUE,TRIM8#

main71910-16350-03iEL43,45,NL40..SX,VE,VIT,VITX,VS,VX199009-199208

GRAY,TRIM2#

main71910-16350-04iEL43,45,NL40..SX,VE,VIT,VITX,VS,VX199009-199208

GRAYISH BLUE,TRIM8#

main71910-16350-07iEL43,45,NL40..SX,VE,VIT,VITX,VS,VX199009-199208

SPRUCE,TRIM6#

main71910-16360-03iEL43..EFIS199009-199208

GRAY,TRIM2#

main71910-16360-04iEL43..EFIS199009-199208

GRAYISH BLUE,TRIM8#

main71910-16360-07iEL43..EFIS199009-199208

SPRUCE,TRIM6#

main71910-16400-B0iEL41,45,NL40..AX,JOI,MOA199208-199409

GRAY,TRIM2#

main71910-16400-G0iEL41,45,NL40..AX,JOI,MOA199208-199409

SPRUCE,TRIM6#

main71910-16400-J0iEL41,45,NL40..AX,JOI,MOA199208-199409

EISEN BLUE,TRIM8#

main71910-16410-B0iEL43,45,NL40..SX,VE,VIT,VITX,VS,VX199208-199409

GRAY,TRIM2#

main71910-16410-G0iEL43,45,NL40..SX,VE,VIT,VITX,VS,VX199208-199409

SPRUCE,TRIM6#

main71910-16410-J0iEL43,45,NL40..SX,VE,VIT,VITX,VS,VX199208-199409

EISEN BLUE,TRIM8#

main71910-16420-B0iEL43..EFIS199208-199409

GRAY,TRIM2#

main71910-16420-G0iEL43..EFIS199208-199409

SPRUCE,TRIM6#

main71910-16420-J0iEL43..EFIS199208-199409

EISEN BLUE,TRIM8#

71920AHEADREST ASSY, FRONT SEAT, LH

main71910-16330-01iEL41,45,NL40..AX,JOI,MOA,TX,VC199009-199208

BLACK,TRIM2#

main71910-16330-04iEL41,45,NL40..AX,JOI,MOA,TX,VC199009-199208

GRAYISH BLUE,TRIM8#

main71910-16330-07iEL41,45,NL40..AX,JOI,MOA199009-199208

SPRUCE,TRIM6#

main71910-16330-22iEL41..TX,VC199208-199409

BLACK,TRIM2#

main71910-16330-W4iEL41..TX,VC199208-199409

EISEN BLUE,TRIM8#

main71910-16340-03iEL41,45,NL40..AVE,AXX,SOP199009-199208

GRAY,TRIM2#

main71910-16340-04iEL41,45,NL40..AVE,AXX,SOP199009-199208

GRAYISH BLUE,TRIM8#

main71910-16340-07iEL41,45,NL40..AVE,AXX,SOP199009-199208

SPRUCE,TRIM6#

main71910-16340-B0iEL41,45,NL40..AVE,AXX,SOP199208-199308

GRAY,TRIM2#

main71910-16340-G0iEL41,45,NL40..AVE,AXX,SOP199208-199308

SPRUCE,TRIM6#

main71910-16340-W4iEL41,45,NL40..AVE,AXX,SOP199208-199308

EISEN BLUE,TRIM8#

main71910-16341-B0iEL41,45,NL40..AVE,AXX,SOP199308-199409

GRAY,TRIM2#

main71910-16341-G0iEL41,45,NL40..AVE,AXX,SOP199308-199409

SPRUCE,TRIM6#

main71910-16341-W4iEL41,45,NL40..AVE,AXX,SOP199308-199409

EISEN BLUE,TRIM8#

main71910-16350-03iEL43,45,NL40..SX,VE,VIT,VITX,VS,VX199009-199208

GRAY,TRIM2#

main71910-16350-04iEL43,45,NL40..SX,VE,VIT,VITX,VS,VX199009-199208

GRAYISH BLUE,TRIM8#

main71910-16350-07iEL43,45,NL40..SX,VE,VIT,VITX,VS,VX199009-199208

SPRUCE,TRIM6#

main71910-16360-03iEL43..EFIS199009-199208

GRAY,TRIM2#

main71910-16360-04iEL43..EFIS199009-199208

GRAYISH BLUE,TRIM8#

main71910-16360-07iEL43..EFIS199009-199208

SPRUCE,TRIM6#

main71910-16400-B0iEL41,45,NL40..AX,JOI,MOA199208-199409

GRAY,TRIM2#

main71910-16400-G0iEL41,45,NL40..AX,JOI,MOA199208-199409

SPRUCE,TRIM6#

main71910-16400-J0iEL41,45,NL40..AX,JOI,MOA199208-199409

EISEN BLUE,TRIM8#

main71910-16410-B0iEL43,45,NL40..SX,VE,VIT,VITX,VS,VX199208-199409

GRAY,TRIM2#

main71910-16410-G0iEL43,45,NL40..SX,VE,VIT,VITX,VS,VX199208-199409

SPRUCE,TRIM6#

main71910-16410-J0iEL43,45,NL40..SX,VE,VIT,VITX,VS,VX199208-199409

EISEN BLUE,TRIM8#

main71910-16420-B0iEL43..EFIS199208-199409

GRAY,TRIM2#

main71910-16420-G0iEL43..EFIS199208-199409

SPRUCE,TRIM6#

main71910-16420-J0iEL43..EFIS199208-199409

EISEN BLUE,TRIM8#

71931SUPPORT, FRONT SEAT HEADREST

main71930-10070-01×2iEL41,NL40..AVE,AXX,SOP199106-199208

sub71930-12070

sub71930-32020

main71930-10070-07×2iEL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ199009-199208

sub71930-12070

sub71930-32020

main71930-10070-22×2iEL4#,NL40199208-199409

sub71930-12070

sub71930-32020

main71930-10070-24×2iEL4#,NL40199009-199106

sub71930-12070

sub71930-32020

main71930-10070-G2×2iEL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ199208-199409

sub71930-12070

sub71930-32020

main71930-10070-W4×2iEL4#,NL40199208-199409

sub71930-12070

sub71930-32020

main71930-32010-01×2iEL45;EL41,43,NL40..AX,JOI,MOA,SX,SZ,TX,VC,VE,VIT,VITX,VITZ,VS,VX,VZ199106-199208

main71930-32010-04×2iEL45;EL41,43,NL40..AX,JOI,MOA,SX,SZ,TX,VC,VE,VIT,VITX,VITZ,VS,VX,VZ199106-199208

main71931-10020-01×2iEL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP,TX,VC199009-199106

sub71931-12040

main71931-10020-07×2iEL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP199009-199208

sub71931-12040

main71931-10020-22×2iEL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP,TX,VC199208-199409

sub71931-12040

main71931-10020-24×2iEL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP,TX,VC199009-199106

sub71931-12040

main71931-10020-G1×2iEL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP199208-199409

sub71931-12040

main71931-10020-W4×2iEL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP,TX,VC199208-199409

sub71931-12040

main71931-32010-01×2iEL45..AVE,AXX,JOI,MOA;EL41,NL40..AX,JOI,MOA,TX,VC199106-199208

main71931-32010-04×2iEL45..AVE,AXX,JOI,MOA;EL41,NL40..AX,JOI,MOA,TX,VC199106-199208

73515RAIL, FRONT SEAT UNDER TRAY, NO.1

main73507-10010iEL41..MOA199308-199409

73516RAIL, FRONT SEAT UNDER TRAY, NO.2

main73508-10010iEL41..JOI199204-199208

9010508085

main90105-08085

9038612039

main90386-12039

9356014008

main93560-14008

9365014008

main93650-14008

28 parts on this diagram · 4 diagrams in section
